Section 2
:
Installation
Series 3700A System Switch/Multimeter Reference Manual
2-
10
3700AS-901-01 Rev. D/June 2018
12.
Sav
e the configuration. From t
he Configuration Utility, select
File > S
ave
.
13.
In
the Keithley Communicator, sele
ct
File > Open Instrument
to open t
he instrument you just
named.

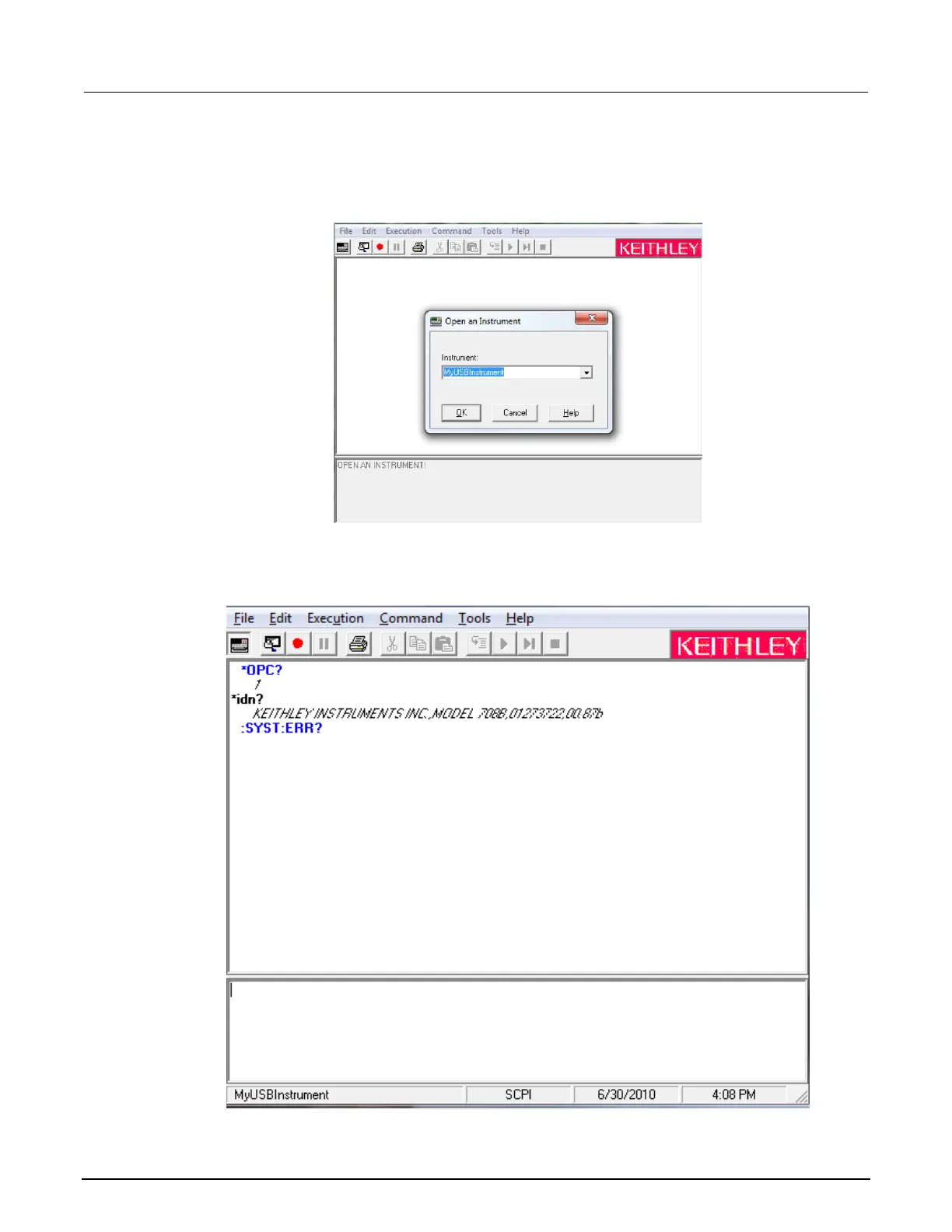

Figure
12
: Keithley
Communicator Open an Instrument
14.
Click
OK
.
15.
Send a
command to the instrument an
d see if it responds.
Figure
13
: Send a comm
and to the instrument
34
36
