Keithley 3720-ST

Appendix A: LAN concepts and settings Series 3700A System Switch/Multimeter Reference Manual
A-16 3700AS-901-01 Rev. D/June 2018

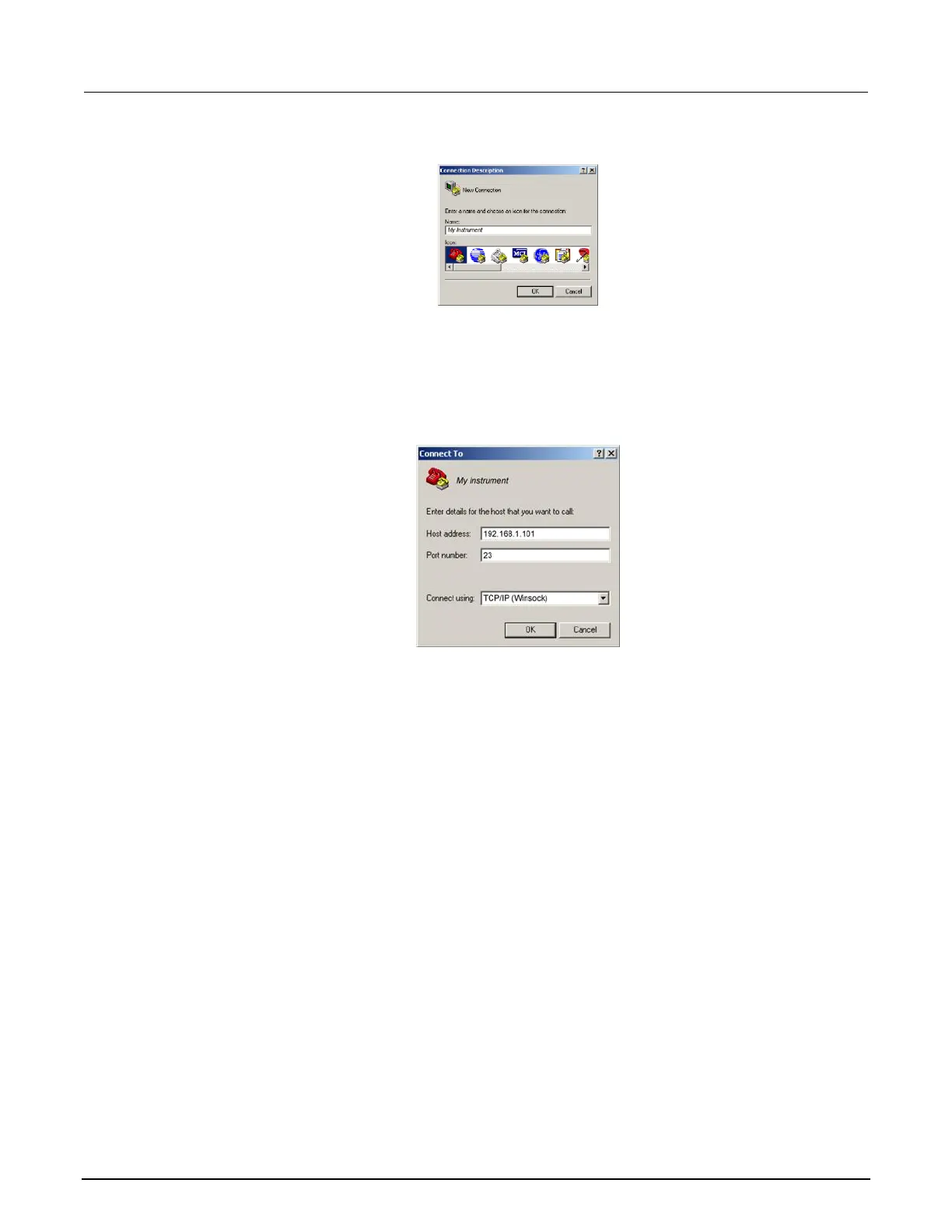

Figure 153: Connection description dialog box
2. Type a name to identify the connection (for example, My Instrument), and then click OK.
3. In the Connect To dialog box, click the Connect using list. Select TCP/IP (Winsock).
Figure 154: Connect To dialog box
4. In the Host address field, type the instrument's IP address (for example, 192.168.1.101).
5. Type 23 in the Port number field, and then click OK. The HyperTerminal program window is
displayed.
6. From the HyperTerminal program window, click File > Properties.
7. In the Properties dialog box, click the Settings tab.
