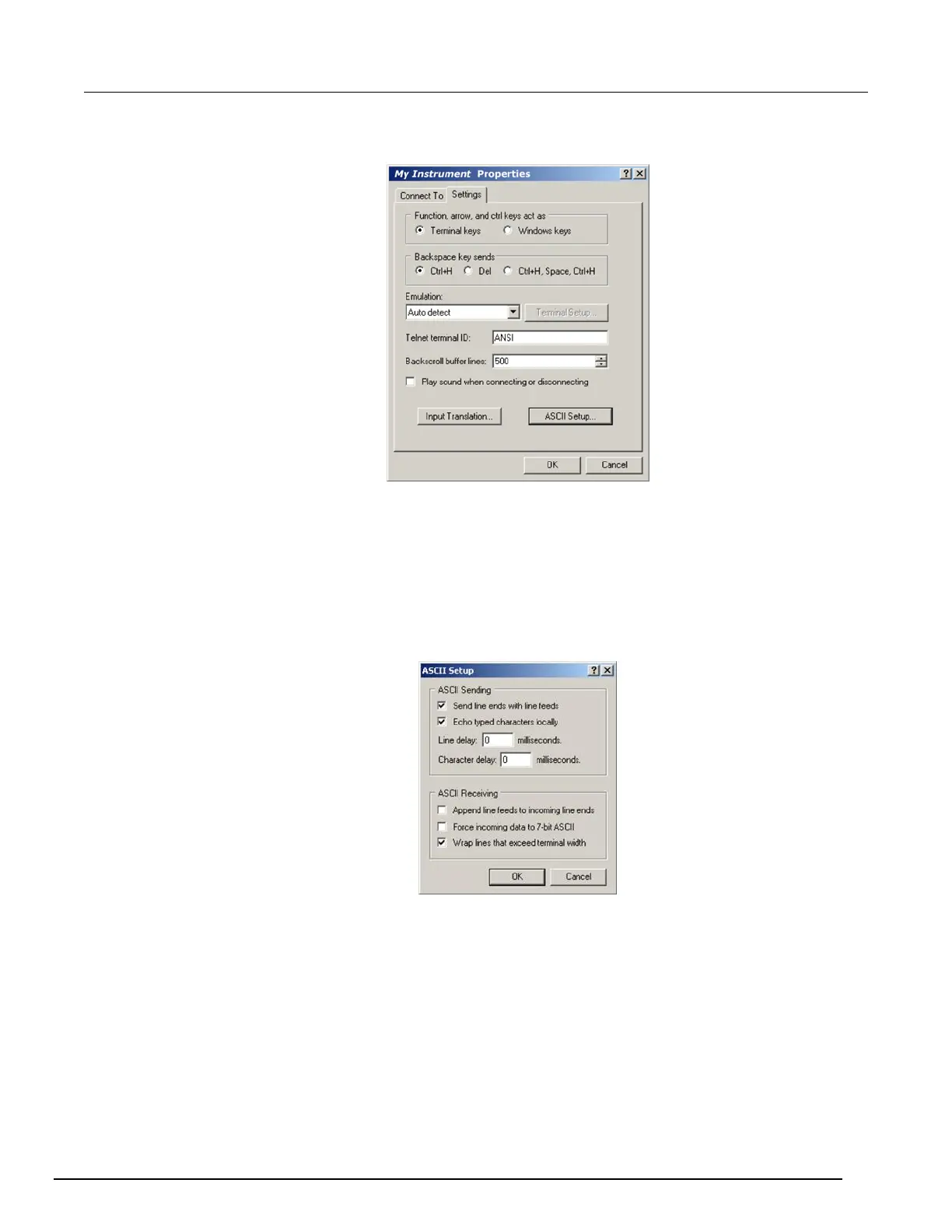

Figure 155: Properties dialog box
8. Click ASCII Setup. The ASCII Setup dialog box is displayed.
9. From the ASCII Setup dialog box, select the following options:
▪ Send line ends with line feeds
▪ Echo typed characters locally
Figure 156: ASCII Setup dialog box
10. Click OK in the ASCII Setup dialog box. The Properties dialog box is displayed.
11. Click OK in the Properties dialog box.
Use the HyperTerminal window to interact directly with the instrument.
