Keithley DMM7510 User Manual

Section
4: Making basic front-panel measurements Model DMM7510 7½ Digit Multimeter
User's Manual
4-4 DMM7510-900-01 Rev. B / May 2015
Using the front panel to view the contents of a reading buffer:
1. Press the MENU key.
Under Views, select Reading Table. Data for the active reading buffer is displayed.

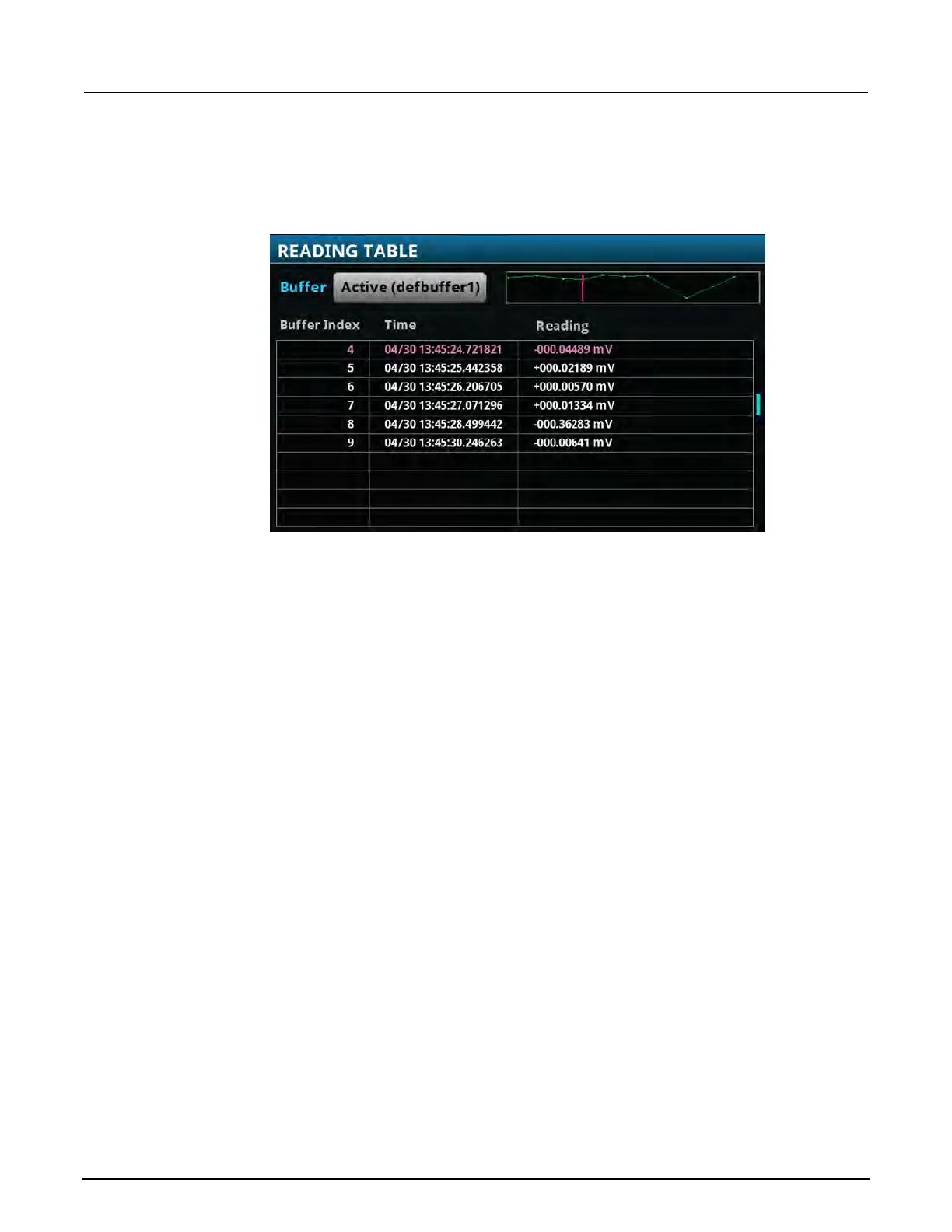

Figure 23: Reading table
2. To display data for a different reading buffer, select the buffer.
3. To view a specific data point, swipe the table up or down. If there are many data points, touch an
area on the reading preview graph in the upper right corner of the screen to get closer to the data
you want, and then scroll to the data point.
4. Press the HOME key to return to the Home screen.
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：010-62176775
网址：www.hyxyyq.com

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
