Keithley DMM7510 - Using the Front-Panel Interface; Front-Panel Overview

In this section:
Front-panel overview ................................................................ 2-1
Instrument power ...................................................................... 2-4
Touchscreen display................................................................. 2-5
Interactive swipe screens ......................................................... 2-7
Menu overview ....................................................................... 2-13
Front-panel overview
The front panel of the Model DMM7510 is shown below. Descriptions of the controls on the front
panel follow the figure.

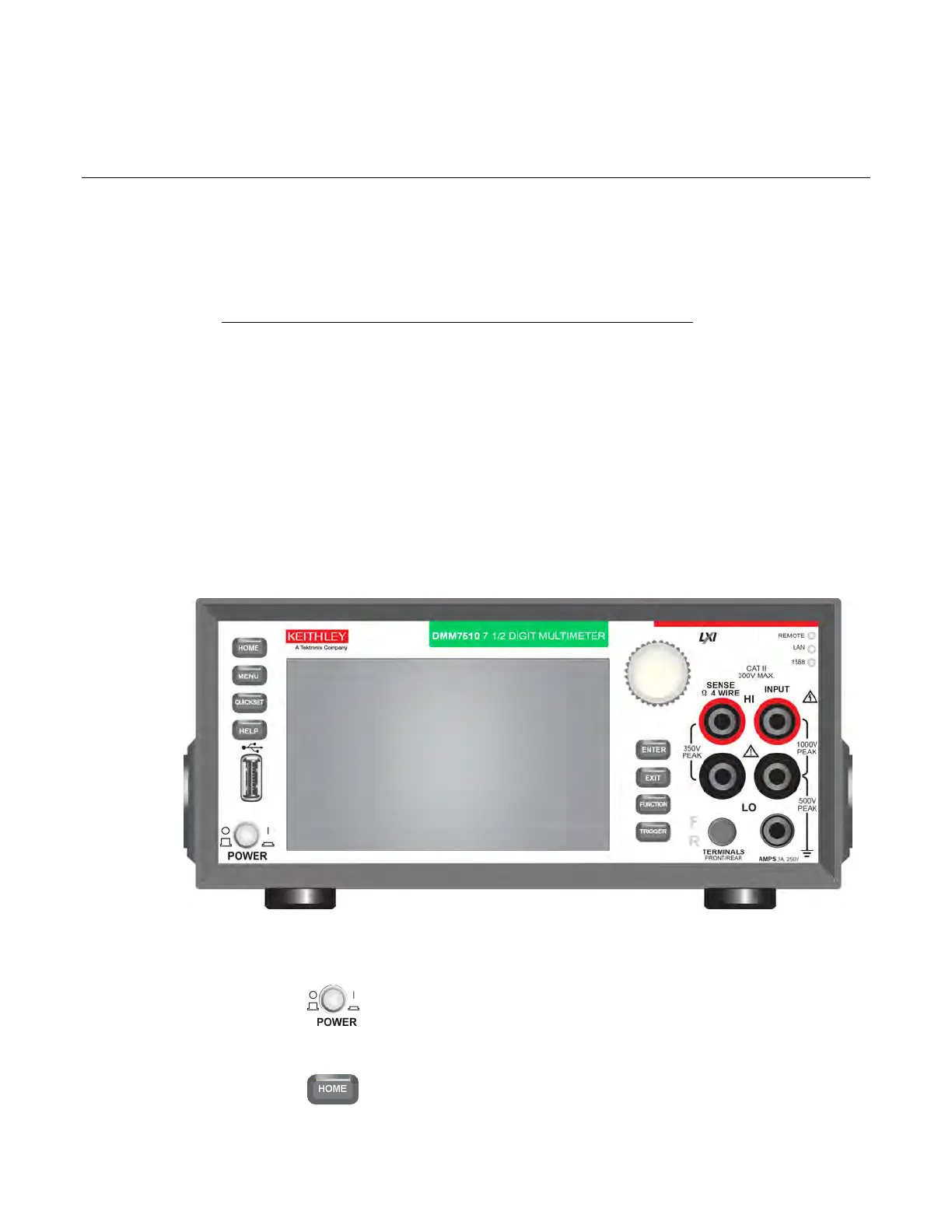

Figure 1: Model DMM7510 front panel
POWER switch
Turns the instrument on or off. To turn the instrument on, press
the power switch so that it is in the on position (|). To turn it off,
press the power switch so that it is in the off position (O).
HOME key
Returns the display to the Home screen.
Section 2
Using the front-panel interface
