Keithley DMM7510 User Manual

Section
2: Using the front-panel interface Model DMM7510 7½ Digit Multimeter
User's Manual
2-2 DMM7510-900-01 Rev. B / May 2015

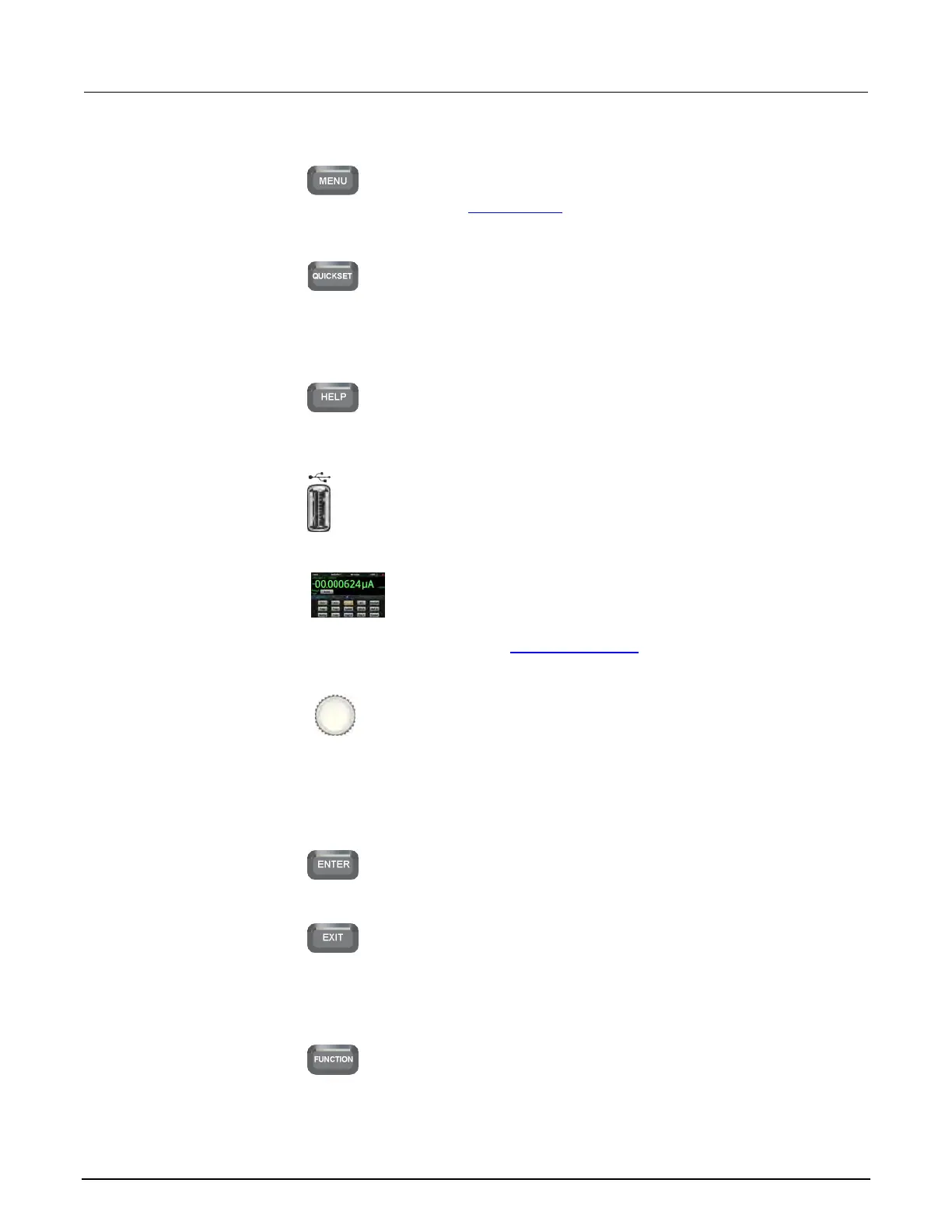

MENU key
Opens the main menu. Press the icons on the main menu to open
measure, view, trigger, script, and system screens. For details,
refer to Menu overview (on page 2-13).
QUICKSET key
Opens a menu of preconfigured setups, including Voltage
Waveform, Interval Measure, Current Waveform, and External
Scan. Also allows you to choose measure functions and adjust
performance for better resolution or speed. Refer to Using Quick
Setups.
HELP key
Opens help for the area or item that is selected on the display. If
there is no selection when you press the HELP key, it displays
overview information for the screen you are viewing.
USB port
Saves reading buffer data and screen snapshots to a USB flash
drive. Also stores and retrieves scripts to and from a USB flash
drive. The flash drive must be formatted as a FAT drive.
Touchscreen
The Model DMM7510 has a high-resolution, five-inch color
touchscreen display. The touchscreen accesses swipe screens
and menu options. You can access additional interactive screens
by pressing the front-panel MENU, QUICKSET, and FUNCTION
keys. Refer to Touchscreen display (on page 2-5) for details.
Navigation control
Moves the cursor and make screen selections.
Turning the navigation control: Moves the cursor to highlight a
list value or menu item so that you can select it. Turning the
control when the cursor is in a value entry field increases or
decreases the value in the field.
Pressing the navigation control:
Selects the highlighted choice
or allows you to edit the selected field.
ENTER key
Selects the highlighted choice or allows you to edit the selected
field.
EXIT key
Returns to the previous screen or closes a dialog box. For
example, press the EXIT key when the main menu is displayed to
return to the Home screen. When you are viewing a subscreen
(for example, the Event Log screen), press the EXIT key to return
to the main menu screen.
FUNCTION key
Displays instrument functions. To select a function, touch the
function name on the screen.
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：010-62176775
网址：www.hyxyyq.com

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
