EN

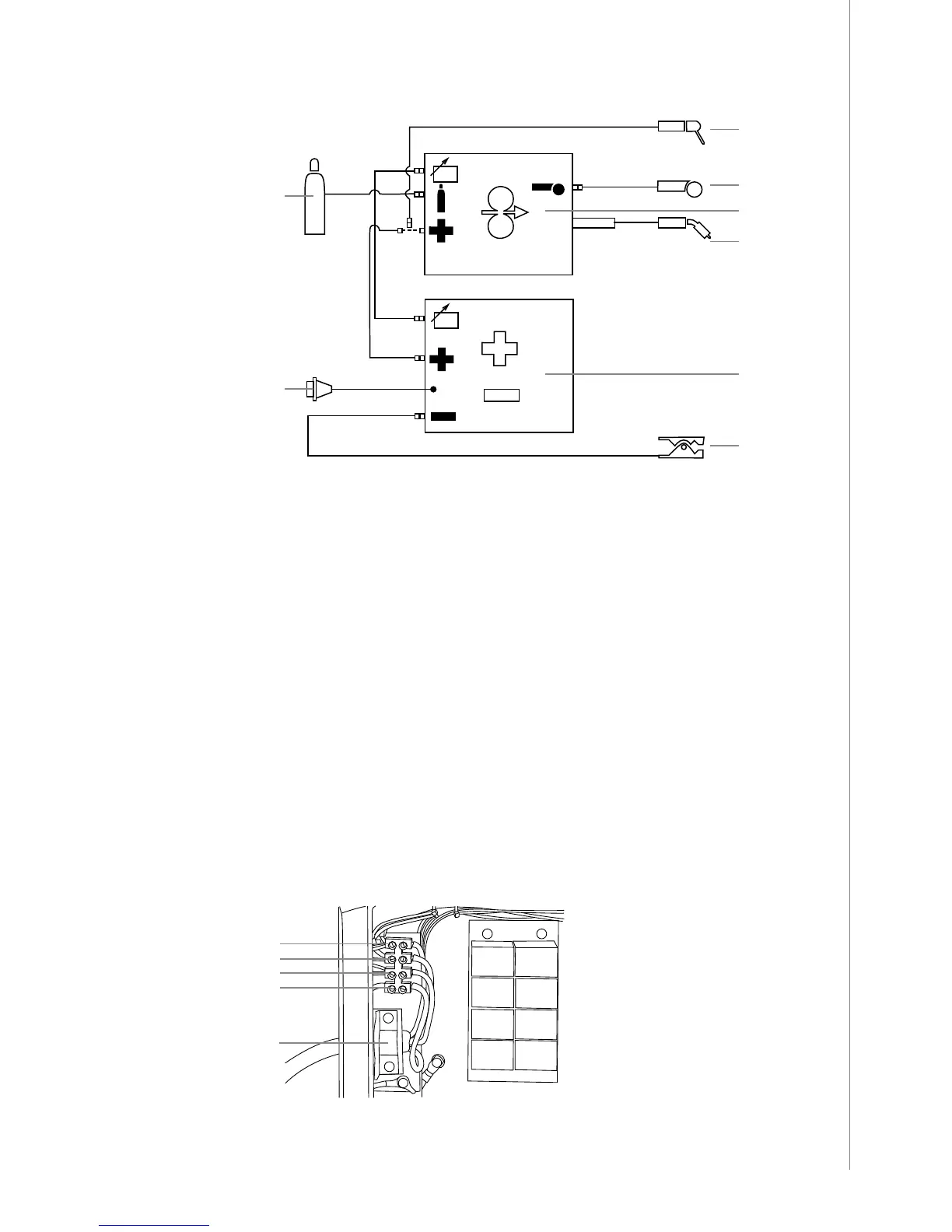

2.5.2 Gas cooled system: FastMig Pulse + MXF
1.
4.
5.
6.
8.
2.
3.
7.
1. MXF wire feed unit
2. FastMig Pulse power source
3. Gas supply
4. MMA electrode holder
5. Remote control device
6. Air cooled welding Gun
7. Power cable
8. Earth return lead and clamp
2.5.3 Connecting to mains power
FastMig power sources are delivered as standard with 5 meters of mains power cable. No
mains plug is tted at the Kemppi factory.
NOTE! If local country based regulations state an alternative power cable is required, the mains
cable must be replaced in conformity with the regulations. Connection and installation of the
mains cable and plug, should only be carried out by a suitably qualied person.
Remove the machine cover plate to enable mounting of a mains cable. FastMig Pulse power
sources can be connected to the mains supply of 400 V 3~ .
If changing the mains cable take into consideration the following:
The cable is entered into the machine through the inlet ring on the rear panel of the machine
and fastened with a cable clamp (05). The phase conductors of the cable are coupled to
connectors L1, L2 and L3. The earth protection coloured green-yellow is coupled to the
marked connector.
If you are using 5-lead cable, do not connect the neutral conductor.
05
*)
L3
L2
L1
*) In cables of S type there is a protective grounding conductor coloured green-yellow.
7
FastMig Pulse 350, 450 / © Kemppi Oy / 1110
