Service manual Master S 400 and 500
Version 1.1
5.9.2014
5
Kemppi Oy

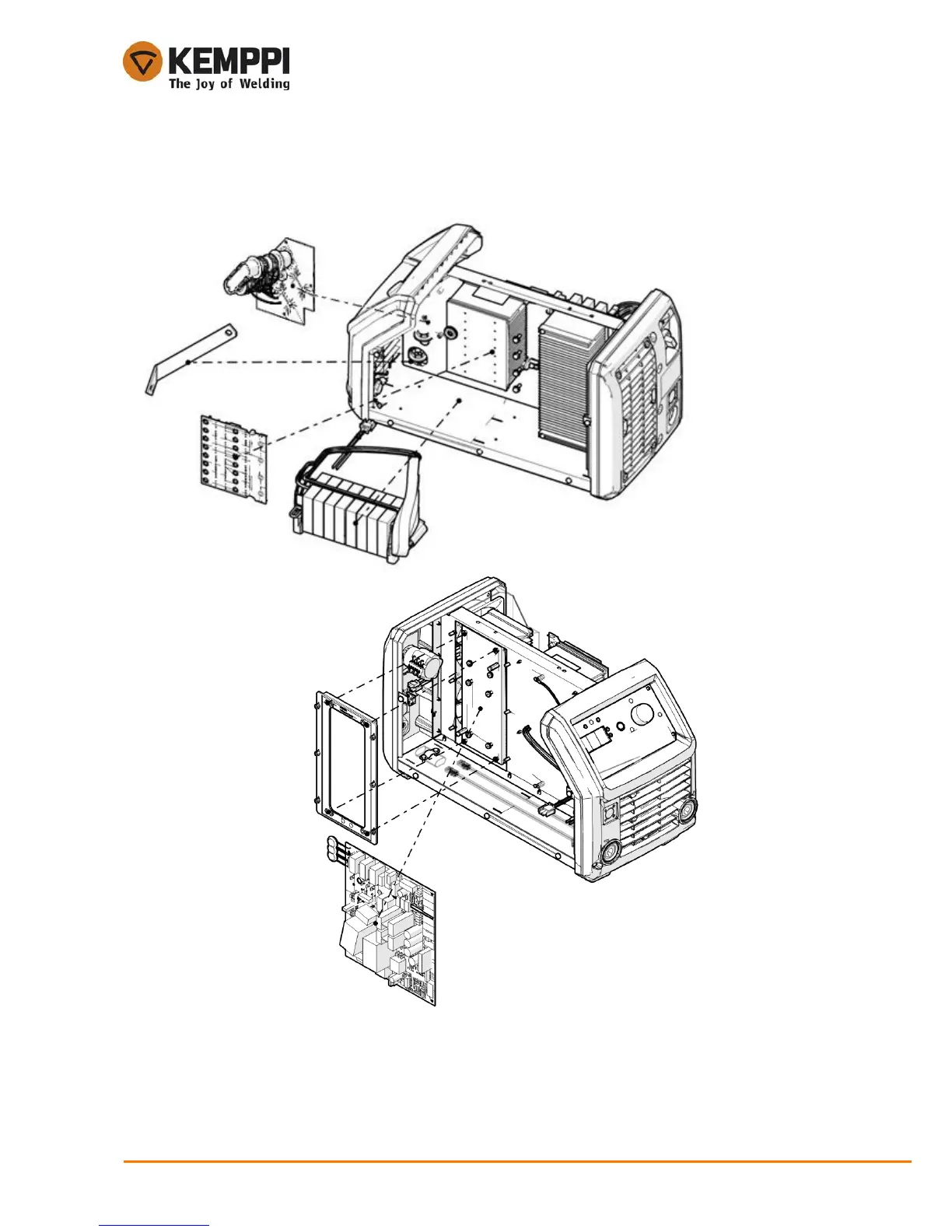

3.4. Assembly
1.Cellu coil (optional)
2. Secondary rail
3. Z002 secondary rectifier
4. Main transformer
5. Z001 main circuit card
6. Primary heat sink
support/insulator
2.
3.
4.
5.
6.
1.
