Kemppi Master S 400 Service Manual

Service manual Master S 400 and 500
Version 1.1
5.9.2014
6
Kemppi Oy

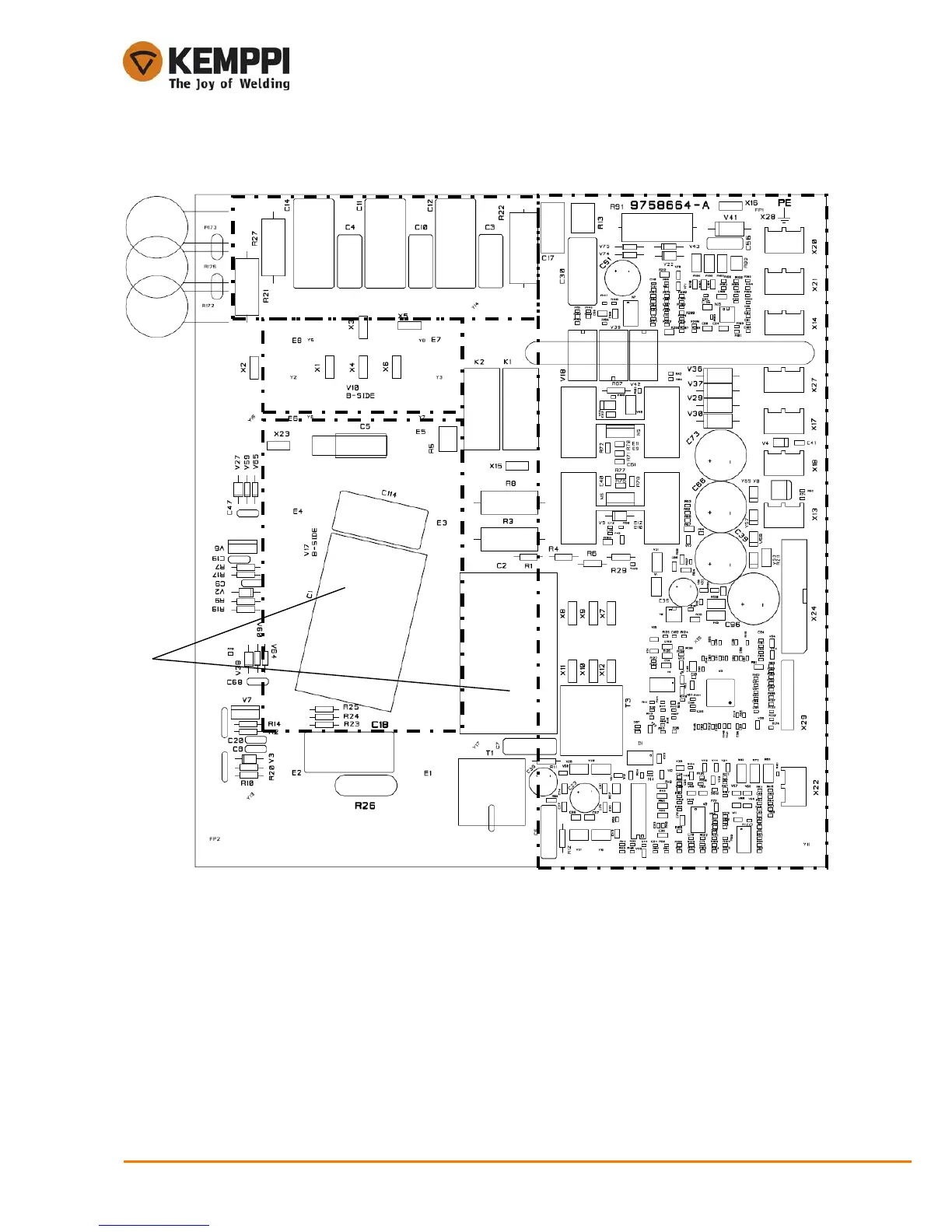

3.4.1. S 400 Z001 main circuit card structure
1.
2.
5.
6.
4.
1. Input varistors
2. Input rectifier protection circuit
3. DC-link capacitors
4. Input rectifier (on the other side)
5. IGBT (on the other side)
6. Control circuitry
7. DC-link charging relays
3.
7.
