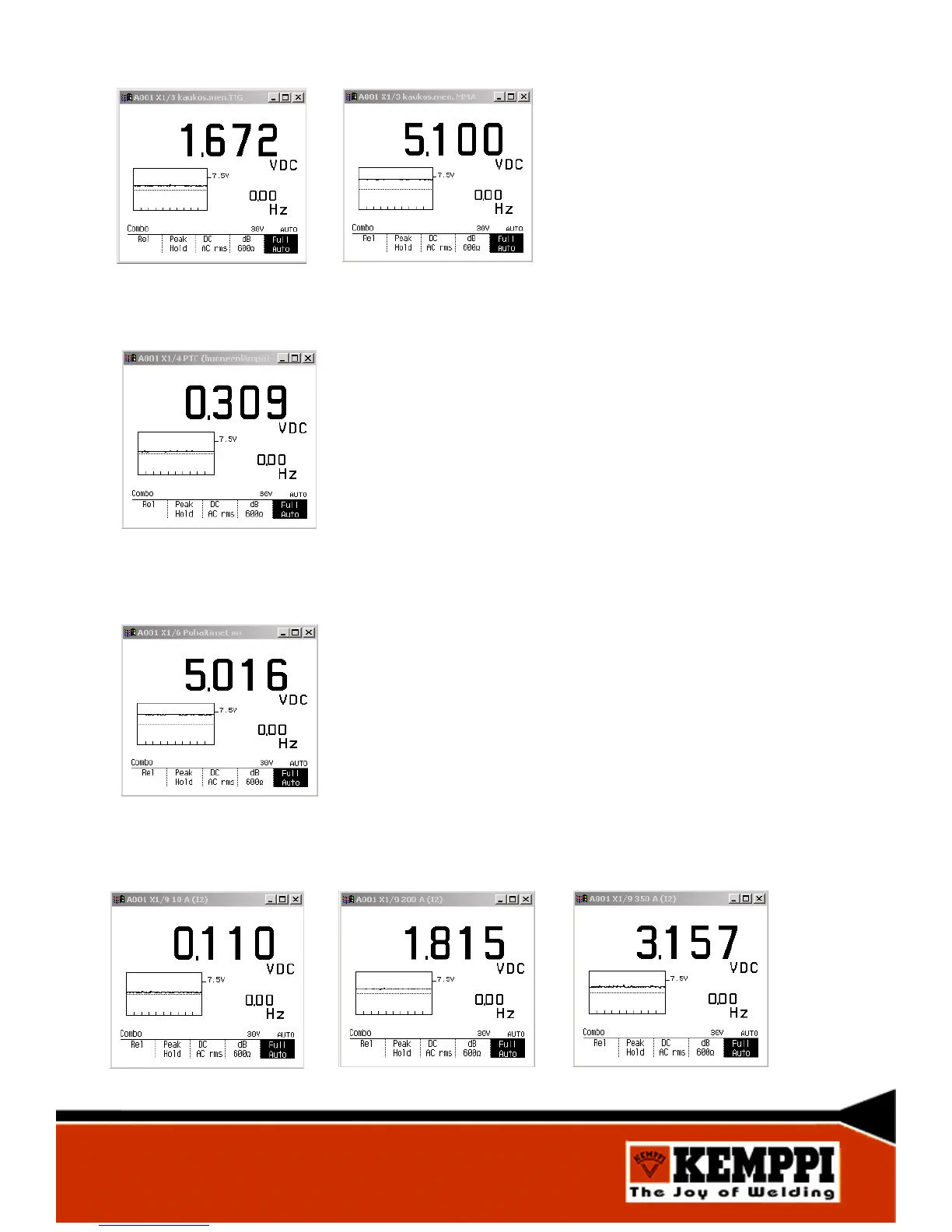

Process selection from the remote controller, voltage on connector X1/3
TIG-process
MMA process
Temperature watch in room temperature (approx.. + 20º C)
Temperature watch, voltage on connector X1/4
Fans on
Fan control, voltage on connector X1/6
DC+ 10 A, MMA DC+ 200 A, MMA DC+ 350 A, MMA
Info of welding current (DC+ and AC pos. half-cycles), voltage on X1/9
39
