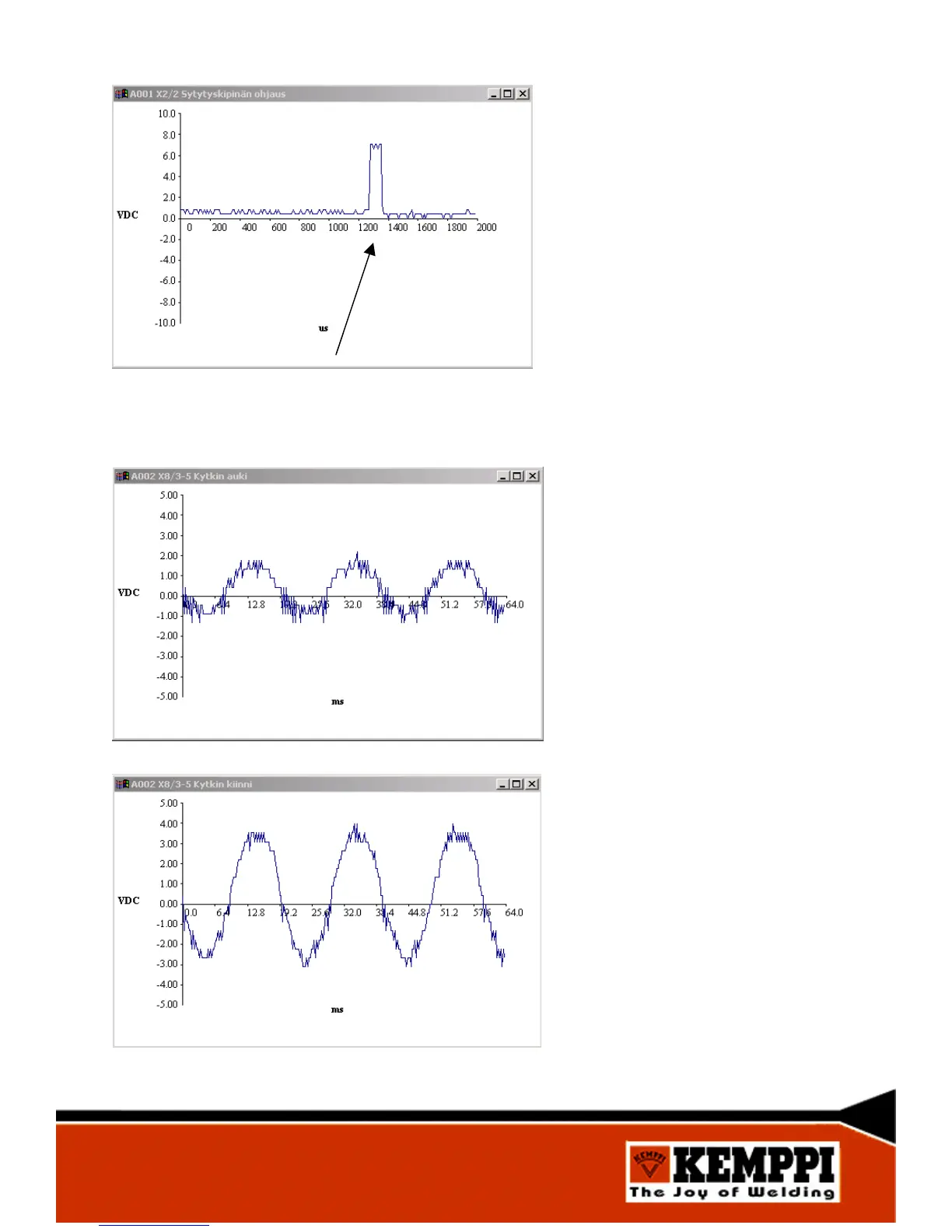

TIG ignition spark control (if the arc is not on immediately, then the controls are on in 10 ms. Intervals for 2 s.)
TIG ignition spark control, voltage on connector X8/1
Torch start switch detection, voltage on connector X8/3
Torch start switch open
Torch start switch closed
47
