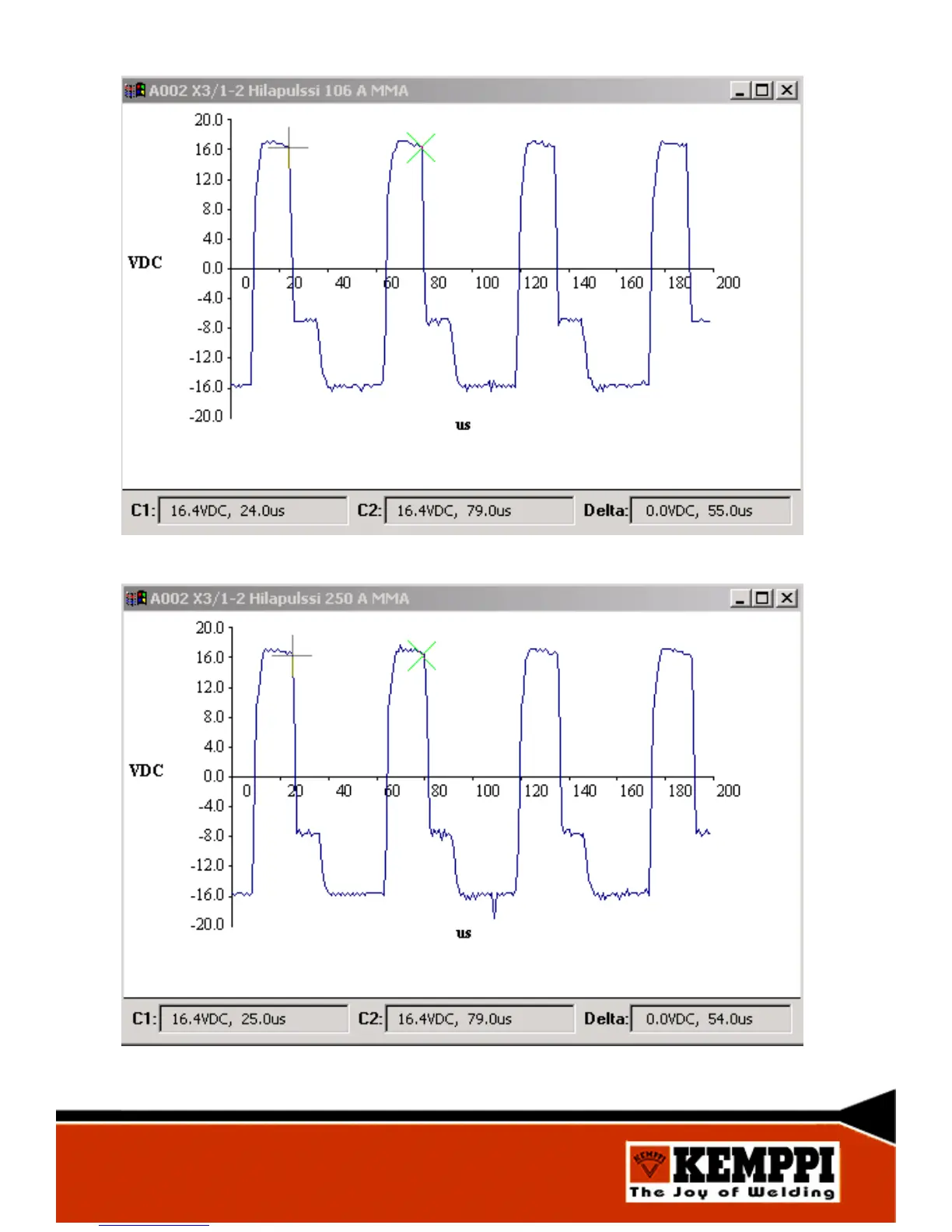

IGBT gate pulses, voltage on connector X3/1-2 (A002)
IGBT gate control 106 A (Note! Frequency!)
IGBT gate control 250 A
Mastertig 2500 AC/DC
Mastertig 2500 AC/DC
71
