Kemppi MF 33 Service Manual

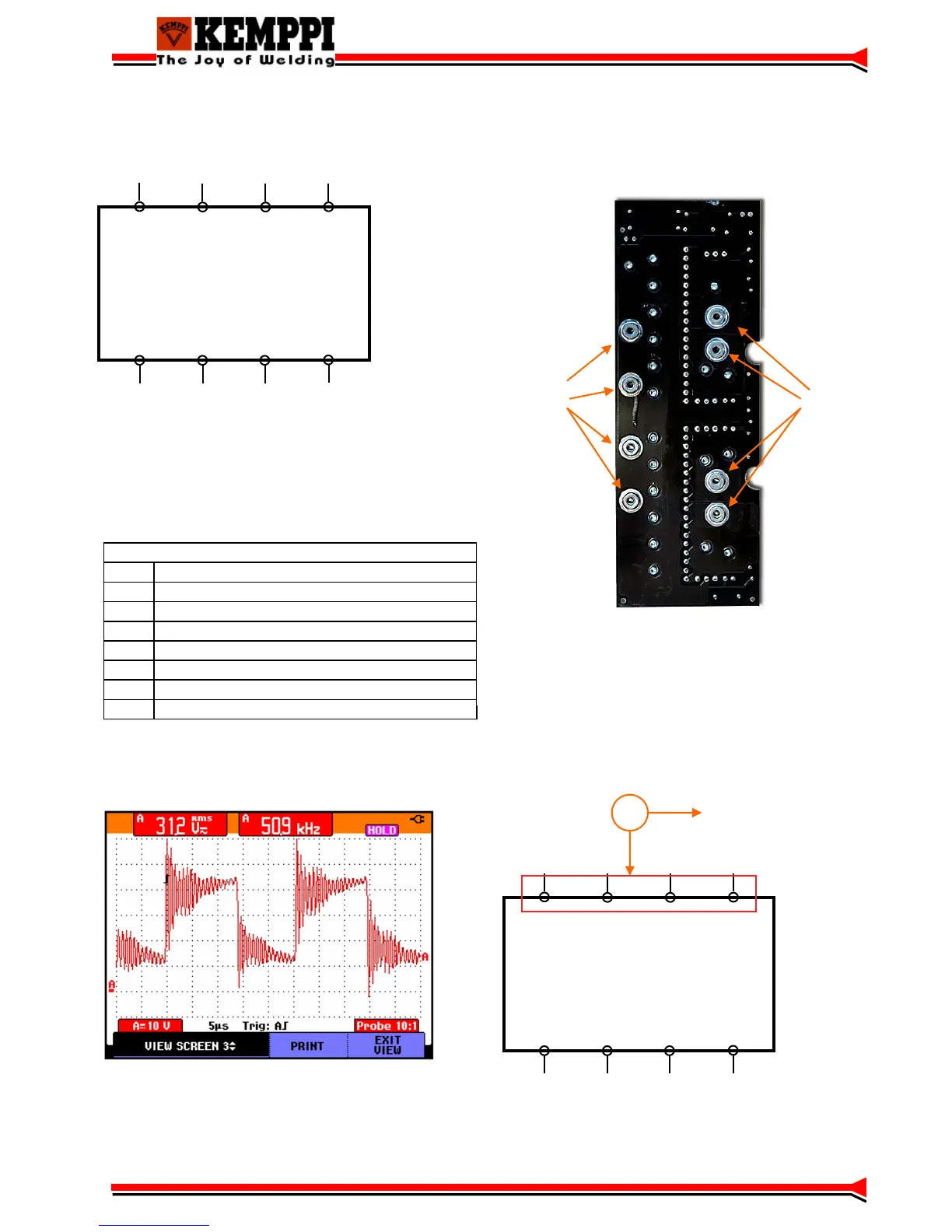

Secondary rectifier card Z003
Connectors
X1 Main transformer
X2 Main transformer
X3 Main transformer
X4 Main transformer
Z003 connectors / signals
X5 Secondary choke
X6 Secondary choke
X7 Secondary choke
X8 Secondary choke
Z003
X1
X2
X3
X4
X5
X6
X7
X8
Operating diagram
-Rectifying
- Snubber
- Protection against HF
X1-X4
X5-X8
Operational mesurings
19
C.
Voltage after secondary rectifier card Z003,
set values 50 A/16,5 V
Z003
X1
X2
X3
X4
X5
X6
X7
X8
X003, machine (-) pole
C
