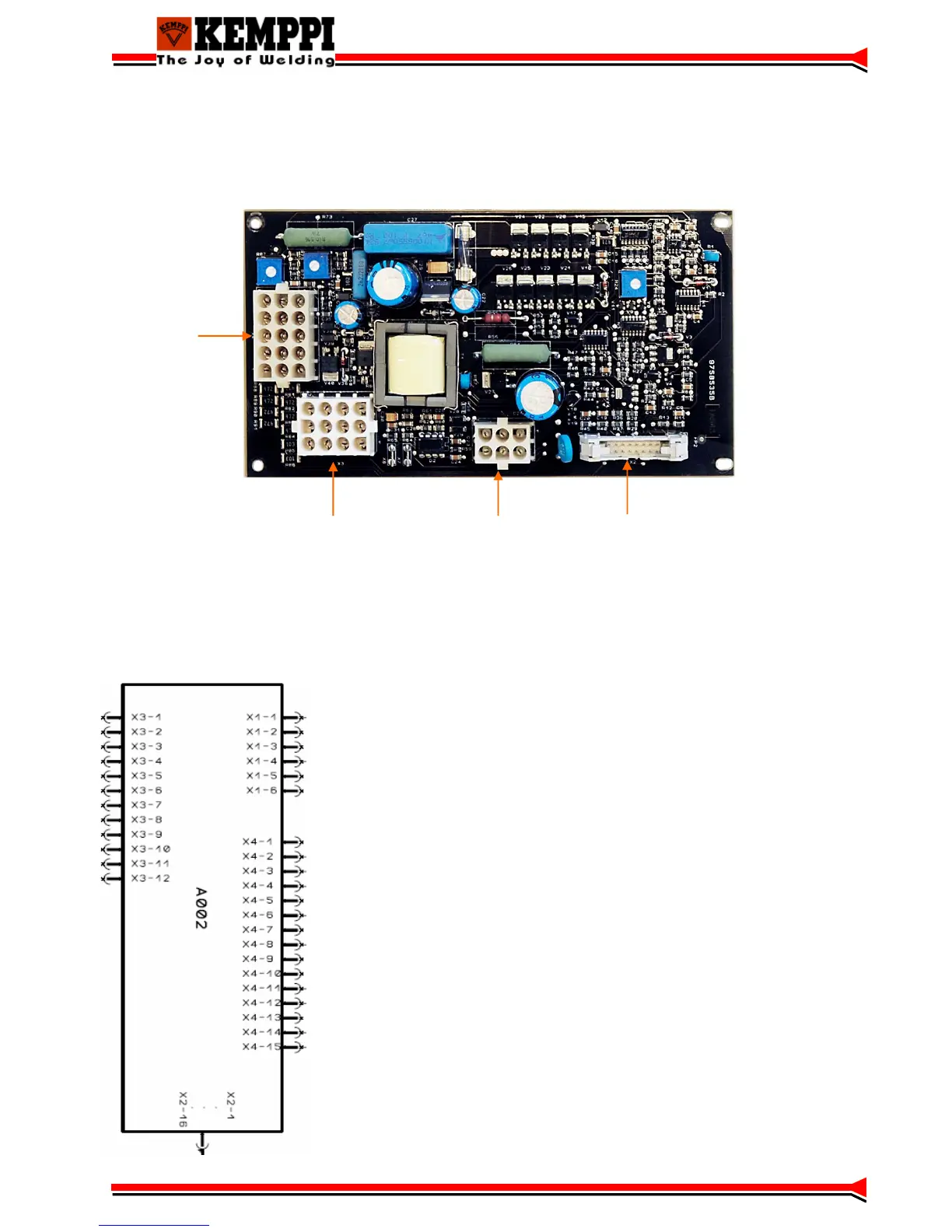

Motor control card A002
X3 X1 X2
X4
23
Operating diagram
- WF-motor control
- Connection to the panel card P001
- Remote controller connection
- MIG gun connection
- Solenoid valve connection
-Fuse
- ID-Chip connection (MSF)
