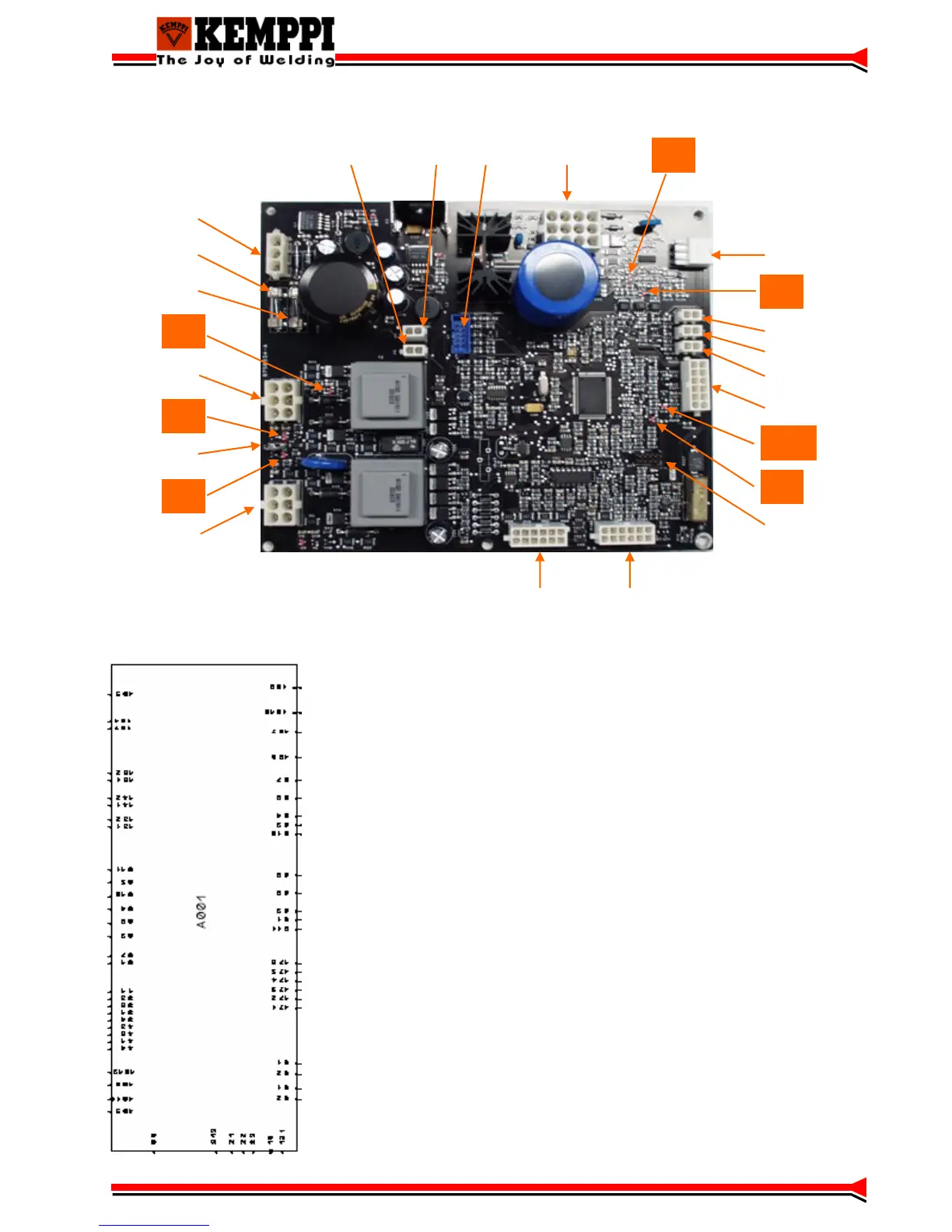

Control card A001
H4
X2
X17
20
Operating diagram
- Microcontroller
-PWM circuit
- Secondary voltage measurement
- Secondary current measurement
-IGBT driver
- Auxiliary device connection
- Auxiliary power supply
- Machine size jumpers (J1, J2)
- Primary current limit jumpers (J3, J4, J5)
- Operational jumpers
-LED’s
- Water cooler connection
X3
H1
X1
H2
X4
F2
F1
X11
X16
X13
X14
X15
H8
X10
X8
H7X9X7X6X5
H10
H9
