Kemppi MF 33 - Technical Data

Main circuit card Z001 KM / KMS
Main transformer
primary coil
DC-link (+)
IGBT gates
From main
switch
DC-link (-)

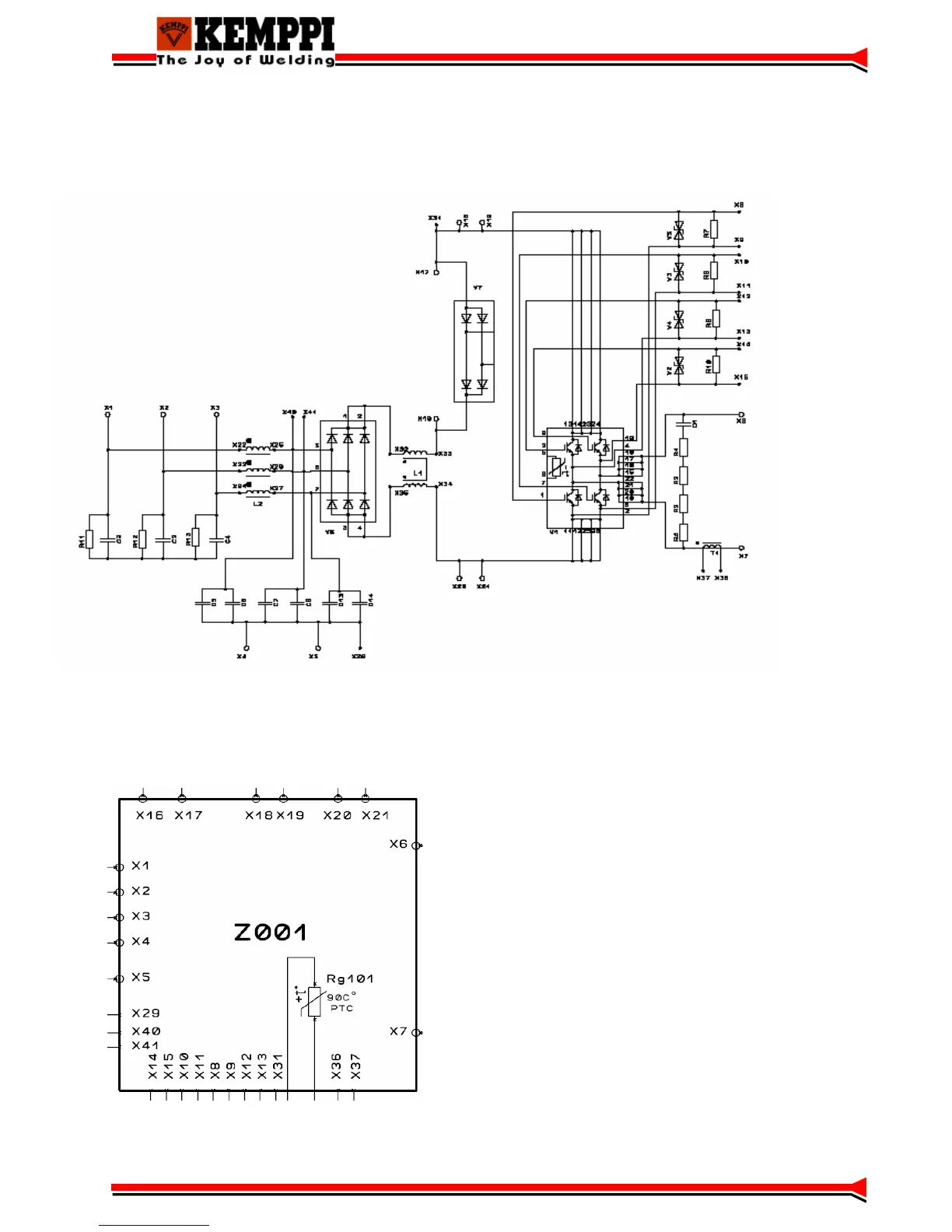

Operating diagram
- EMI filtering
- Three phase rectifier (V6)
- Switching-ON transient suppression
- Power Stage
- Current transformer (T1)
