Kemppi MF 33 Service Manual

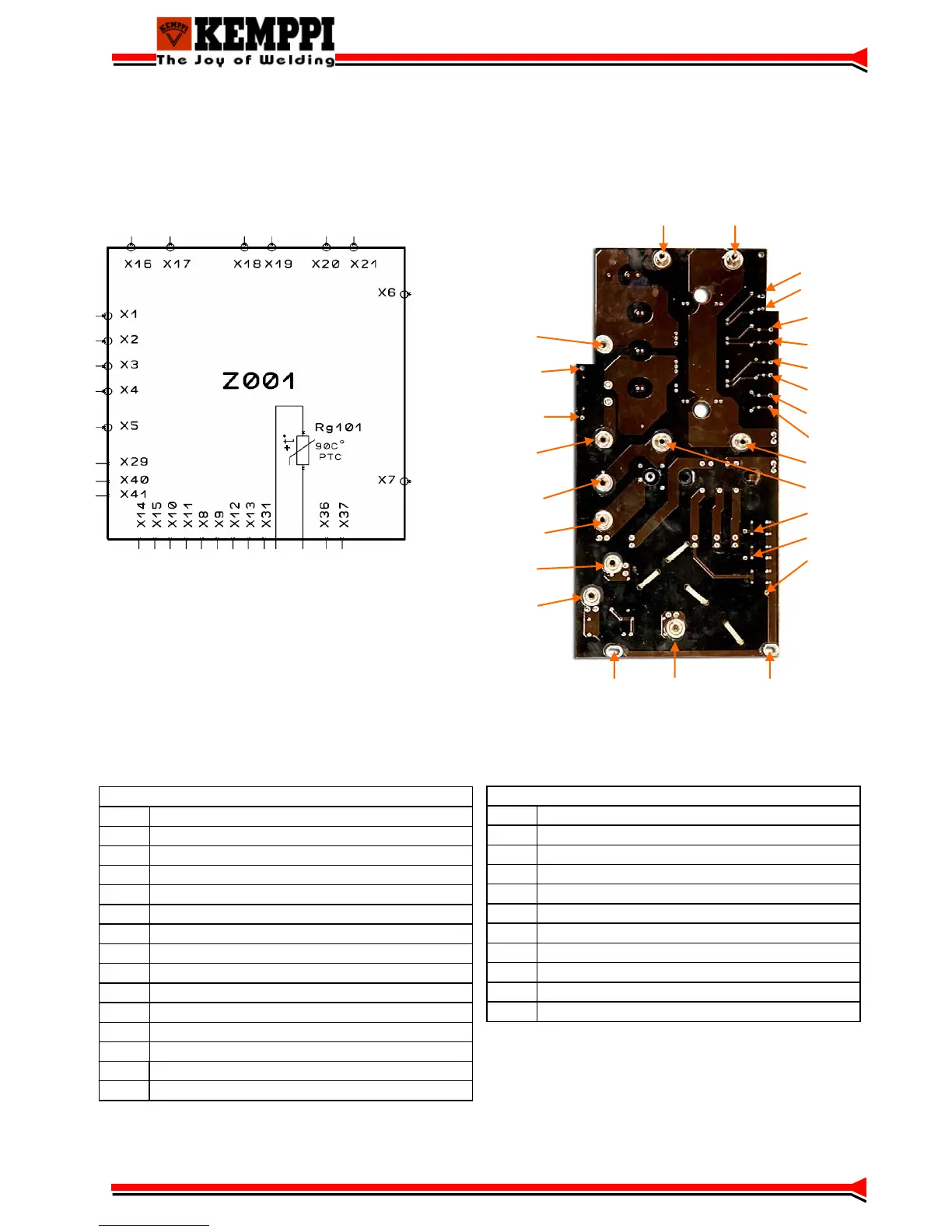

Main circuit card Z001
Connectors
16
X19 X21
X10
X11
X14
X15
X12
X13
X18
X1
X20
X8
X9
X40
X29
X41
X6
X37
X17
X7
X36
X16
X3
X2
X5X4
X16 Primary choke
X17 Primary choke
X18 DC-link voltage (+)
X19 DC-link voltage (+)
X20 DC-link voltage (-)
X21 DC-link voltage (-)
X29 Chassis ground
X36 Current transformer secondary
X37 Current transformer secondary
X40 Auxiliary transformer
Z001 connectors / signals
X41 Auxiliary transformer
X1 Main switch
X2 Main switch
X3 Main switch
X4 Chassis ground
X5 Chassis ground
X6 Main transformer
X7 Main transformer
X8 IGBT gates and emitters
X9 IGBT gates and emitters
X10 IGBT gates and emitters
Z001 connectors / signals
X11 IGBT gates and emitters
X12 IGBT gates and emitters
X13 IGBT gates and emitters
X14 IGBT gates and emitters
X15 IGBT gates and emitters
