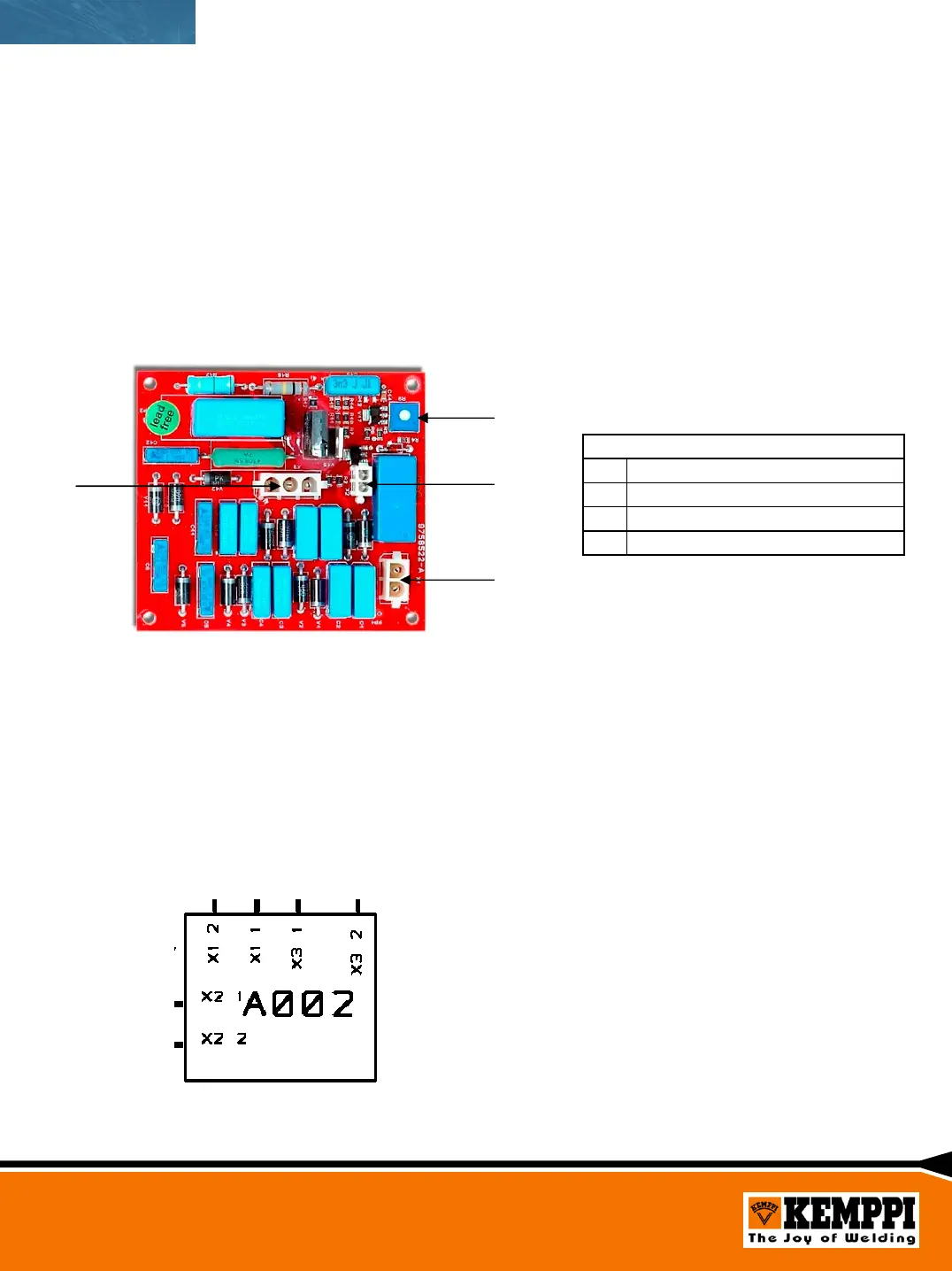

Spark generator card A002
Connectors
R9
X2
X1
X3
X1 Main transformer secondary
X2 Spark on / off
X3 Spark transformer primary
R9 Spark voltage adjustment
A002 connectors
Operating diagram
- Spark voltage generator
(=voltage multiplier)
- Spark voltage adjustment
