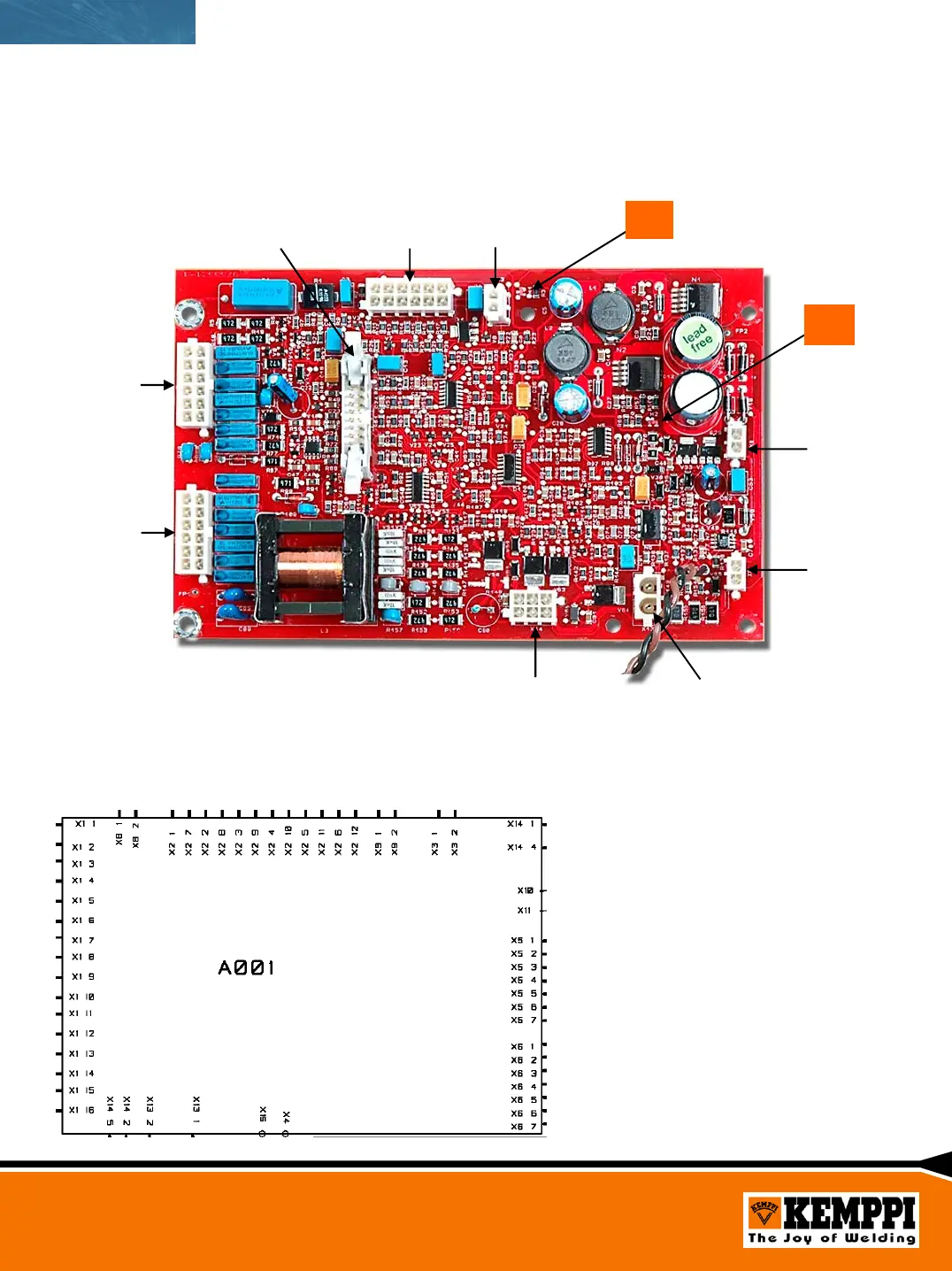

Control card A001
X13X14
X9
X8
X3
X2
X1
X5
X6
H2
H1
Operating diagram
- Aux. Voltage development
- PWM-control
- Shunt amplifier
- MMA dynamic control
- Solenoid valve control
- Fan control
- Under voltage watch
- Overvoltage watch
- Overheat watch
- Remote/foot control interface
- TIG –torch interface
- Panel interface
- Filtering of control lines
