Kemppi MinarcTig 180MLP User Manual

7

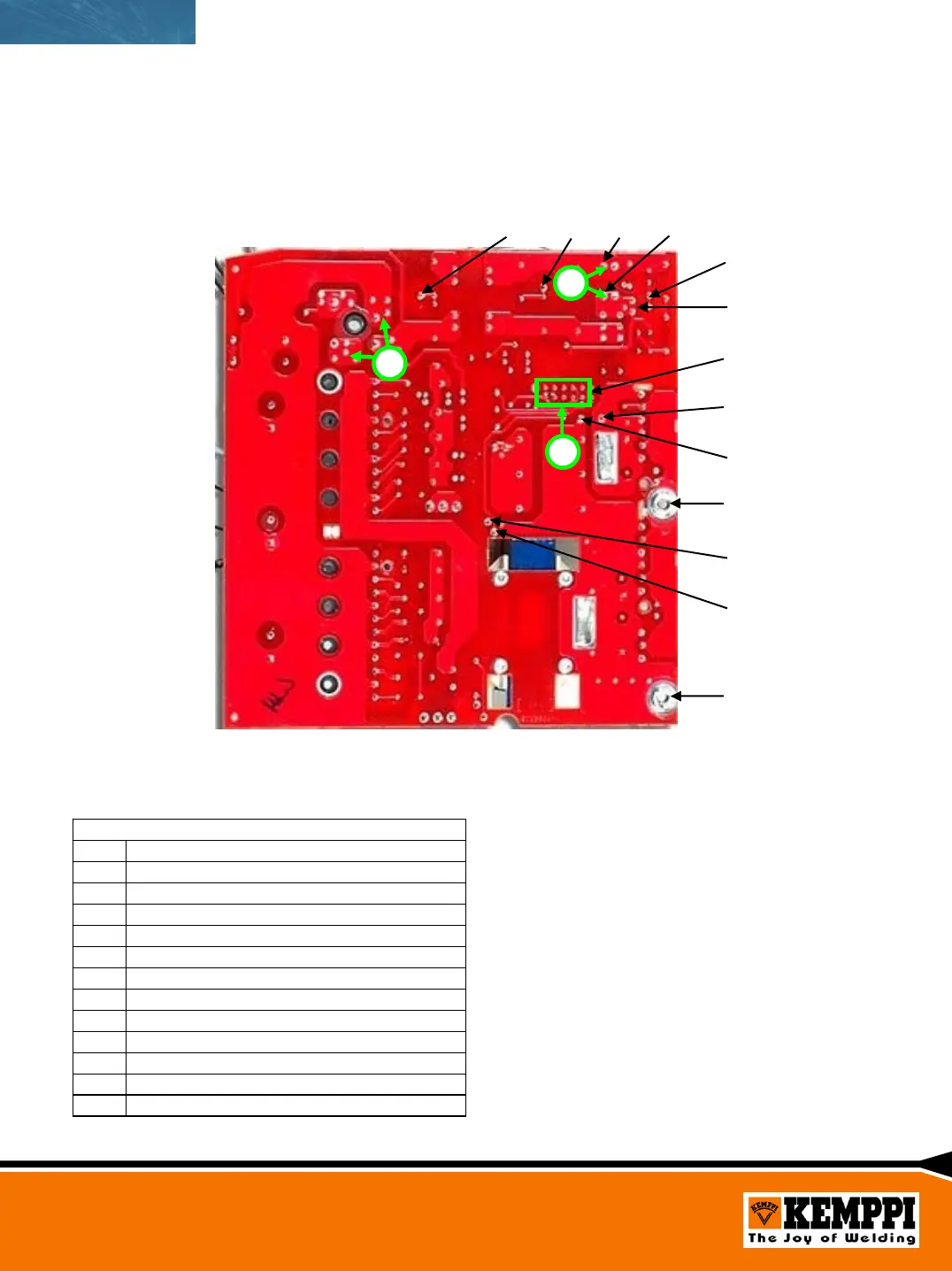

Connectors
X16 X5
X1
X12
X2
X3
X11
X15
X14
X13
X9
X10
X4
C
B
A
X1
Power supply voltage 230 Vac
X2
Connector A001
X3
Power supply voltage 230 Vac
X4
Shunt resistor, (-)
X5
Machine body, equipment earth
X9
Aux. transformer T002 supply voltage ~230 Vac
X10
Aux. transformer T002 supply voltage ~230 Vac
X11
Supply voltage to spark generator card A002
Z001 connectors
X12
Supply voltage to spark generator card A002
X13
Secondary choke L002, (+)
X14
PTC, main transformer
X15
PTC, main transformer
X16
Machine body, equipment earth
Measuring point A. X1, X3
Measuring point B. X2/6, X2/12
Measuring point C Primary rectifier
