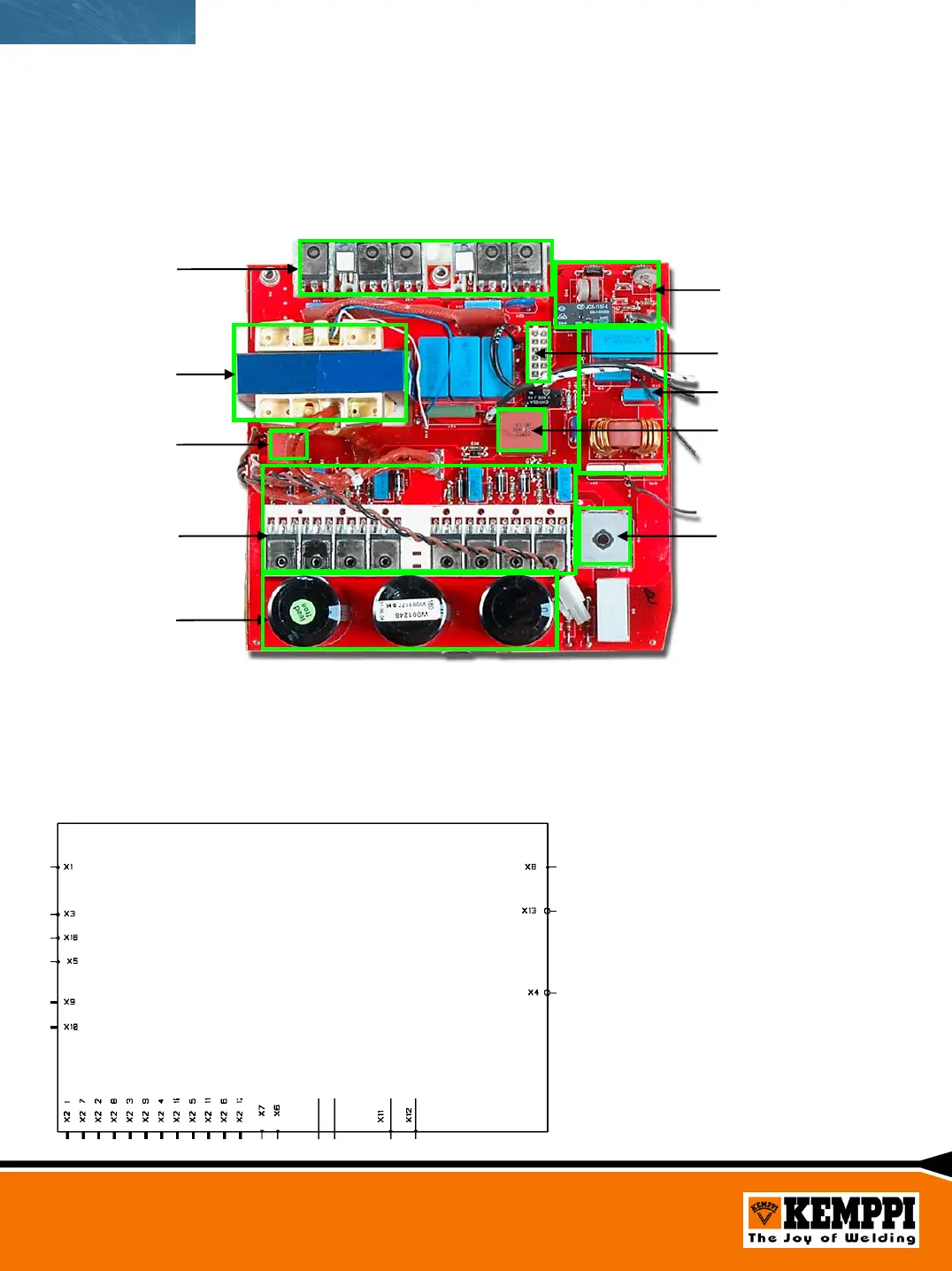

Main circuit card Z001
Secondary rectifier
Current transformer,
T1
DC-link charging,
resistors and relay
EMI-filter
IGBTs, gate
resistors, return
current diodes
Main transformer,
T001
Smoothing capasitors
Primary rectifier
Connector to A001
Operating diagram
- Net over voltage
protection
- DC-link charging
-EMI-filter
- Primary rectifier
-Energyreserve
- Dual-forward-inverter
- Main transformer
- Secondary rectifier
Z001
