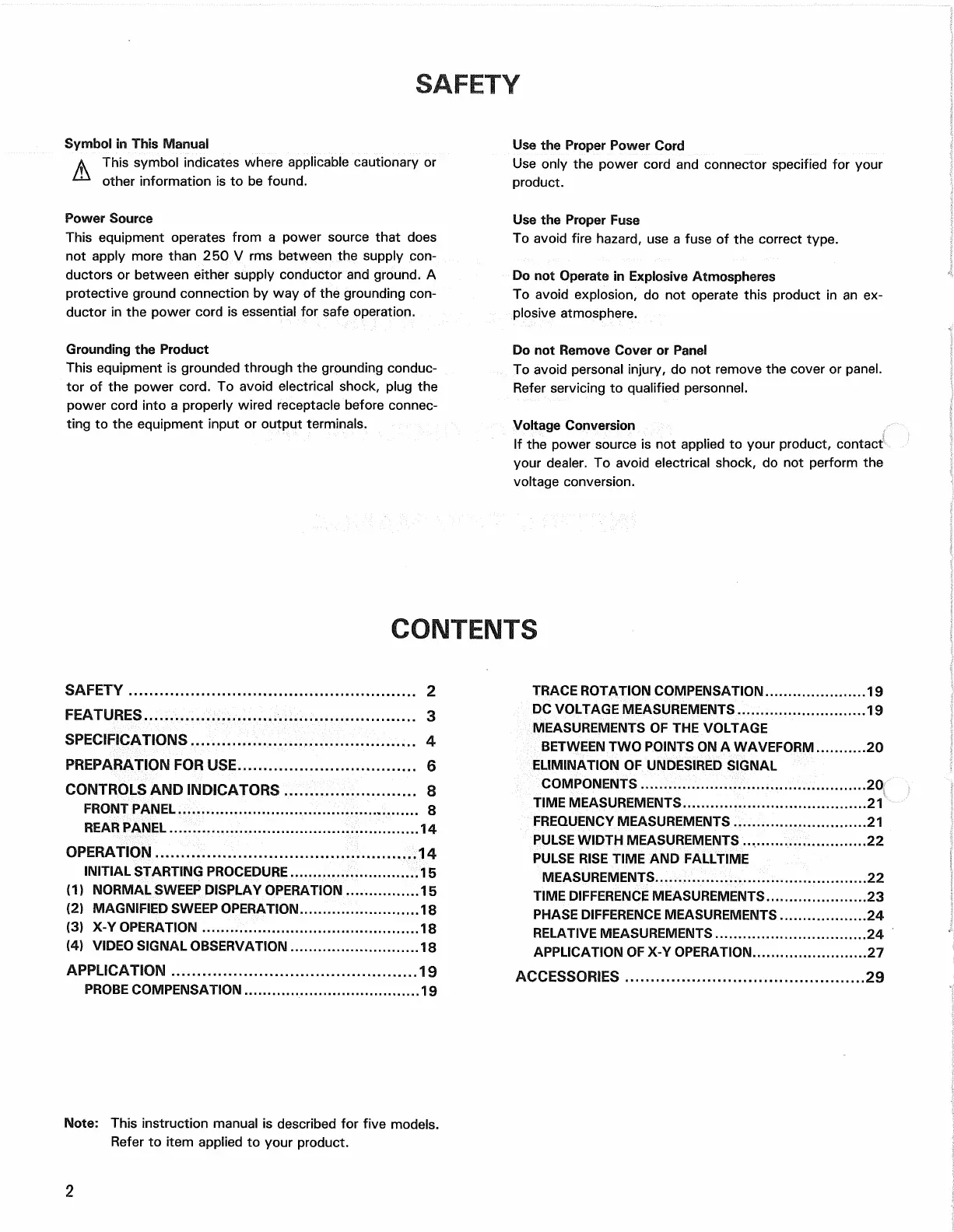

SAFETY
Symbol in This Manual
This symbol indicates where applicable cautionary or
other information is to be found.
Power Source
This equipment operates from a power source that does
not apply more than 250 V rms between the supply
con-
ductors or between either supply conductor and ground. A
protective ground connection by way of the grounding
con-
ductor in the power cord is essential for safe operation.
Grounding the Product
This equipment is grounded through the grounding conduc-
tor of the power
cord.
To avoid electrical shock, plug the
power cord into a properly wired receptacle before connec-
ting to the equipment input or output terminals.
Use the Proper Power Cord
Use only the power cord and connector specified for your
product.
Use the Proper Fuse
To avoid fire hazard, use a fuse of the correct type.
Do not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an ex-
plosive atmosphere.
Do not Remove Cover or Panel
To avoid personal injury, do not remove the cover or panel.
Refer servicing to qualified personnel.
Voltage Conversion
If the power source is not applied to your product, contact
your dealer. To avoid electrical shock, do not perform the
voltage conversion.
CONTENTS
SAFETY 2
FEATURES 3
SPECIFICATIONS 4
PREPARATION FOR USE 6
CONTROLS AND INDICATORS 8
FRONT PANEL 8
REAR PANEL 14
OPERATION 14
INITIAL STARTING PROCEDURE 15
(1) NORMAL SWEEP DISPLAY OPERATION 15
(2) MAGNIFIED SWEEP OPERATION 18
(3) X-Y OPERATION 18
(4) VIDEO SIGNAL OBSERVATION 18
APPLICATION 19
PROBE COMPENSATION 19
TRACE ROTATION COMPENSATION 19
DC VOLTAGE MEASUREMENTS 19
MEASUREMENTS OF THE VOLTAGE
BETWEEN TWO POINTS ON A WAVEFORM 20
ELIMINATION OF UNDESIRED SIGNAL
COMPONENTS 20
TIME MEASUREMENTS 21
FREQUENCY MEASUREMENTS 21
PULSE WIDTH MEASUREMENTS 22
PULSE RISE TIME AND FALLTIME
MEASUREMENTS 22
TIME DIFFERENCE MEASUREMENTS 23
PHASE DIFFERENCE MEASUREMENTS 24
RELATIVE MEASUREMENTS 24
APPLICATION OF X-Y OPERATION 27
ACCESSORIES 29
Note: This instruction manual is described for five models.
Refer to item applied to your product.
2
