CS-1022, 1021, 1012
CS-1020, 1010
@ Z AXIS INPUT
External intensity modulation input; TTL compatible.
Positive voltage increases brightness, negative
voltage decreases brightness.
(§) Z AXIS INPUT
External intensity modulation input; TTL compatible.
Positive voltage increases brightness, negative
voltage decreases brightness.
# CHI OUTPUT (Except CS-1021)
CH1 vertical output signal connector.
AC coupled output connector.
This connector is used to measure the frequency by
connecting the frequency counter. For stable opera-
tion,
do not connect CH1 OUTPUT to channel 2 input
as cascaded operation.
(§) VERT OUTPUT
Vertical output signal connector.
AC coupled output connector.
This connector is used to measure the frequency by
connecting the frequency counter.
(ft) Fuse Holder
Contains the line fuse. Verify that the proper fuse is
installed when replacing the line fuse.
100 V, 120 V 0.8A
220 V, 240 V 0.5A
(fj) Fuse Holder
Contains the line fuse. Verify that proper fuse is in-
stalled when replacing the line fuse.
100V, 120V 0.8A
220V, 240V 0.5A
14

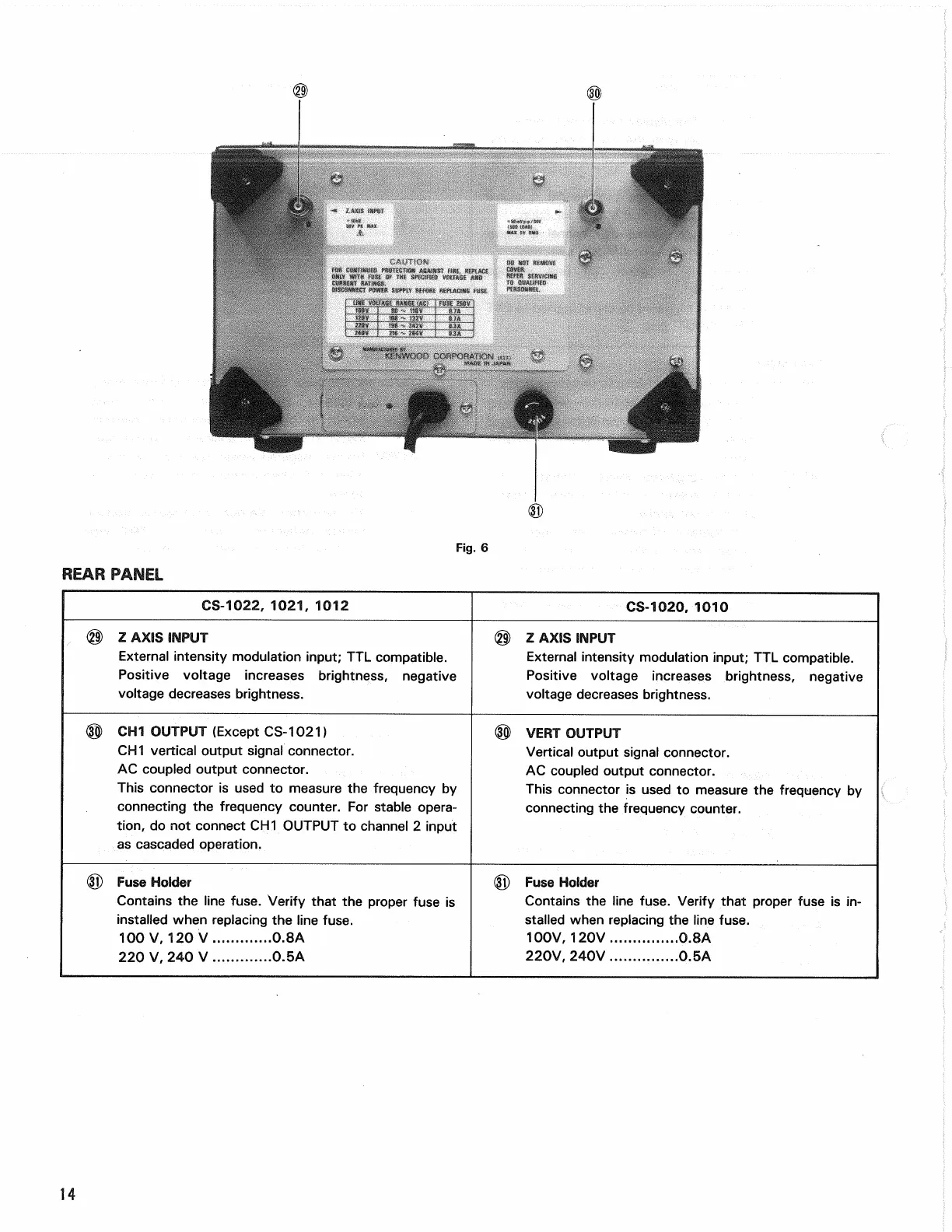

Fig.
6
REAR PANEL
