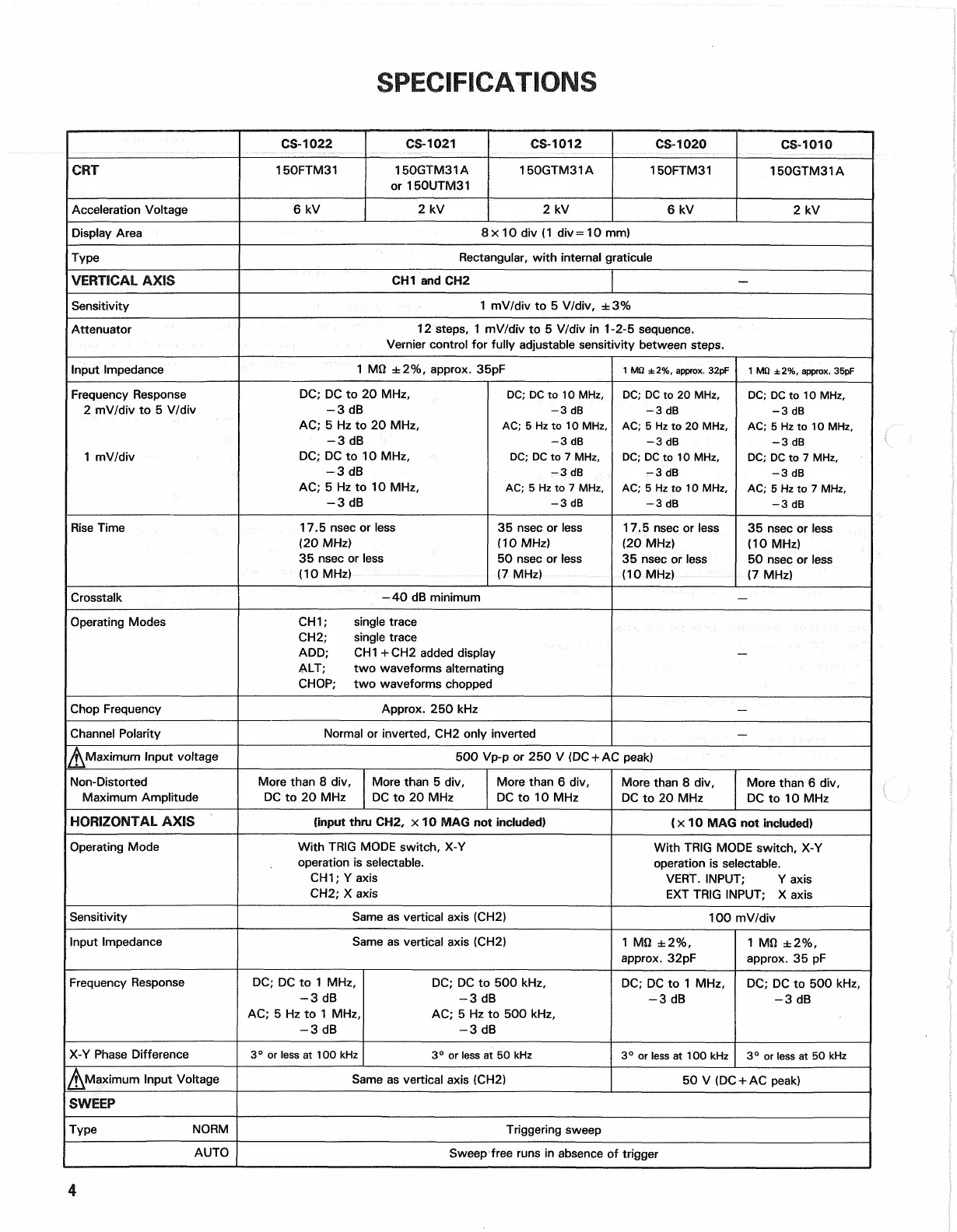

SPECIFICATIONS
CS-1022 CS-1021 CS-1012
CS-1020
CS-1010
CRT
150FTM31
150GTM31A
or 150UTM31
150GTM31A
150FTM31
150GTM31A
Acceleration Voltage
6 kV 2 kV 2 kV
6 kV
2 kV
Display Area
8x10 div (1 div= 10 mm)
Type
Rectangular, with internal graticule
VERTICAL AXIS
CH1 and CH2
-
Sensitivity
1 mV/div to 5 V/div, ±3%
Attenuator 12 steps, 1 mV/div to 5 V/div in 1-2-5 sequence.
Vernier control for fully adjustable sensitivity between steps.
Input Impedance
1 MO ±2%, approx. 35pF
1 MQ ±2%, approx. 32pF
1 Mfi ±2%, approx. 35pF
Frequency Response
2 mV/div to 5 V/div
1 mV/div
DC; DC to 20 MHz,
-3 dB
AC; 5 Hz to 20 MHz,
-3 dB
DC; DC to 10 MHz,
-3 dB
AC; 5 Hz to 10 MHz,
-3 dB
DC; DC to 10 MHz,
-3 dB
AC; 5 Hz to 10 MHz,
-3 dB
DC; DC to 7 MHz,
-3 dB
AC; 5 Hz to 7 MHz,
-3 dB
DC; DC to 20 MHz,
-3 dB
AC; 5 Hz to 20 MHz,
-3 dB
DC; DC to 10 MHz,
-3 dB
AC; 5 Hz to 10 MHz,
-3 dB
DC; DC to 10 MHz,
-3 dB
AC; 5 Hz to 10 MHz,
-3 dB
DC; DC to 7 MHz,
-3 dB
AC; 5 Hz to 7 MHz,
-3 dB
Rise Time
17.5 nsec or less
(20 MHz)
35 nsec or less
(10 MHz)
35 nsec or less
(10 MHz)
50 nsec or less
(7 MHz)
17.5 nsec or less
(20 MHz)
35 nsec or less
(10 MHz)
35 nsec or less
(10 MHz)
50 nsec or less
(7 MHz)
Crosstalk
— 40 dB minimum
-
Operating Modes
CH1; single trace
CH2; single trace
ADD; CH1+CH2 added display
ALT; two waveforms alternating
CHOP; two waveforms chopped
-
Chop Frequency Approx. 250 kHz
-
Channel Polarity Normal or inverted, CH2 only inverted
-
/^Maximum Input voltage
500 Vp-p or 250 V (DC + AC peak)
Non-Distorted
Maximum Amplitude
More than 8 div,
DC to 20 MHz
More than 5 div,
DC to 20 MHz
More than 6 div,
DC to 10 MHz
More than 8 div,
DC to 20 MHz
More than 6 div,
DC to 10 MHz
HORIZONTAL AXIS
(input thru CH2, x 10 MAG not included)
(x 10 MAG not included)
Operating Mode
With TRIG MODE switch, X-Y
operation is selectable.
CH1; Y axis
CH2; X axis
With TRIG MODE switch, X-Y
operation is selectable.
VERT. INPUT; Y axis
EXT TRIG INPUT; X axis
Sensitivity Same as vertical axis (CH2)
100 mV/div
Input Impedance
Same as vertical axis (CH2)
1 MQ ±2%,
approx. 32pF
1 Mfi ±2%,
approx. 35 pF
Frequency Response DC; DC to 1 MHz,
-3 dB
AC; 5 Hz to 1 MHz,
-3 dB
DC; DC to 500 kHz,
-3 dB
AC; 5 Hz to 500 kHz,
-3 dB
DC; DC to 1 MHz,
-3 dB
DC; DC to 500 kHz,
-3 dB
X-Y Phase Difference
3° or less at 100 kHz
3° or less at 50 kHz
3° or less at 100 kHz 3° or less at 50 kHz
/^Maximum Input Voltage
Same as vertical axis (CH2)
50 V (DC + AC peak)
SWEEP
Type NORM
Triggering sweep
AUTO
Sweep free runs in absence of trigger
4
