ACCESSORIES
STANDARD ACCESSORIES INCLUDED
Probe (PC-30) W03-2308-05
Attenuation 1/10, 1/1
Input Impedance
1/10 10 MQ, 22pF ±10%
1/1 1 MO, 200pF or less
Instruction Manual B50-7570-30
Replacement Fuse
0.8 A F05-8015-05
0.5 A F05-5022-05
OPTIONAL ACCESSORIES
Probe Pouch (MC-78) Y87-1600-00
MOUNTING THE PROBE POUCH (MC-78)
This soft vinyl pouch attaches to the right side of the
oscilloscope housing and provides storage space for two
probes and the operators manual. Install the probe pouch
as follows:
1.
Unsnap the probe pouch from the retainer plate.
2.
Align the retainer plate with the 4 holes on the right side
of the case, with the 3 snaps at the top.
3. Attach the four corners of the retainer plate to the
oscilloscope case with the four nylon rivets supplied.
4.
Attach the probe pouch to the retainer plate using the
snap fastener.

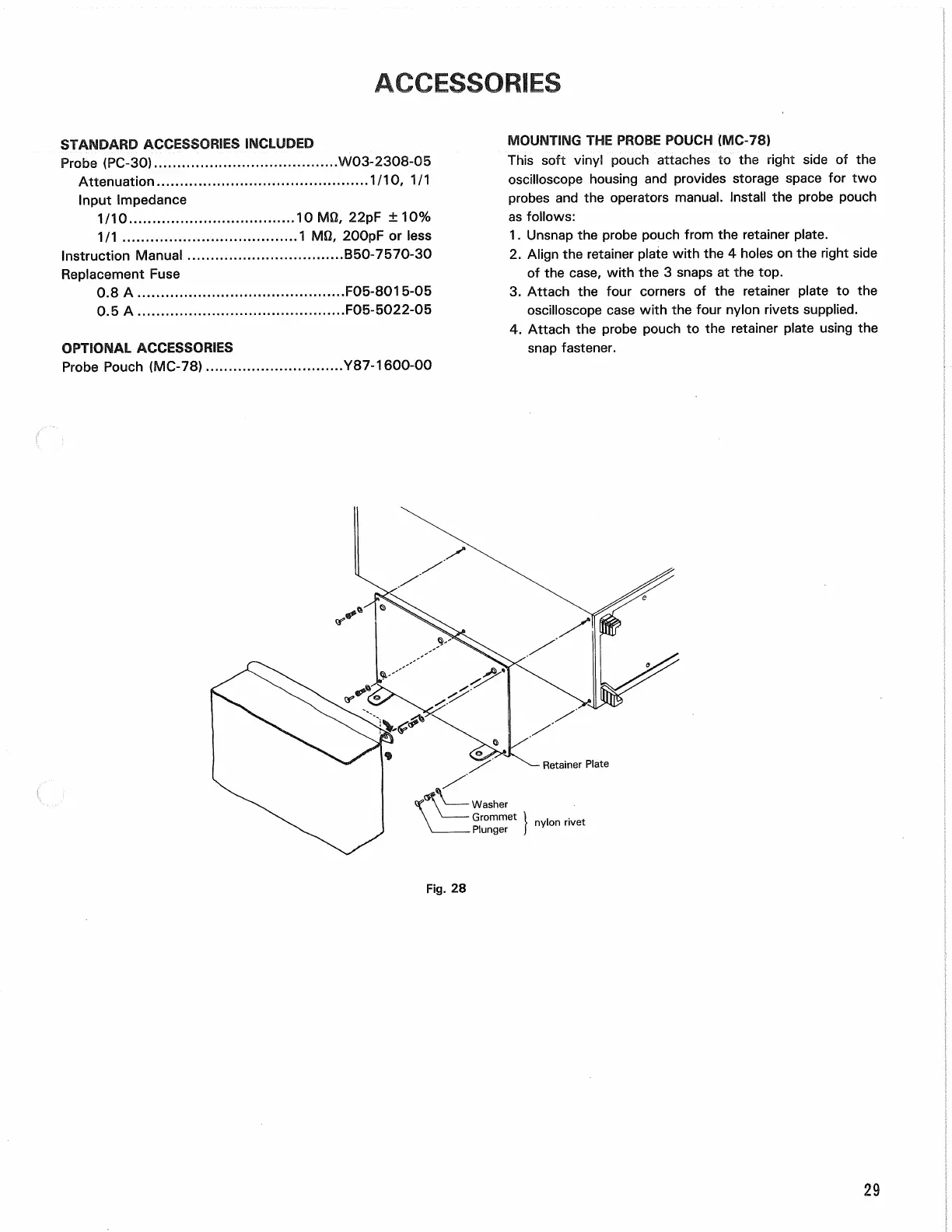

Fig.
28
29
Retainer Plate
nylon rivet
Washer
Grommet
. Plunger
