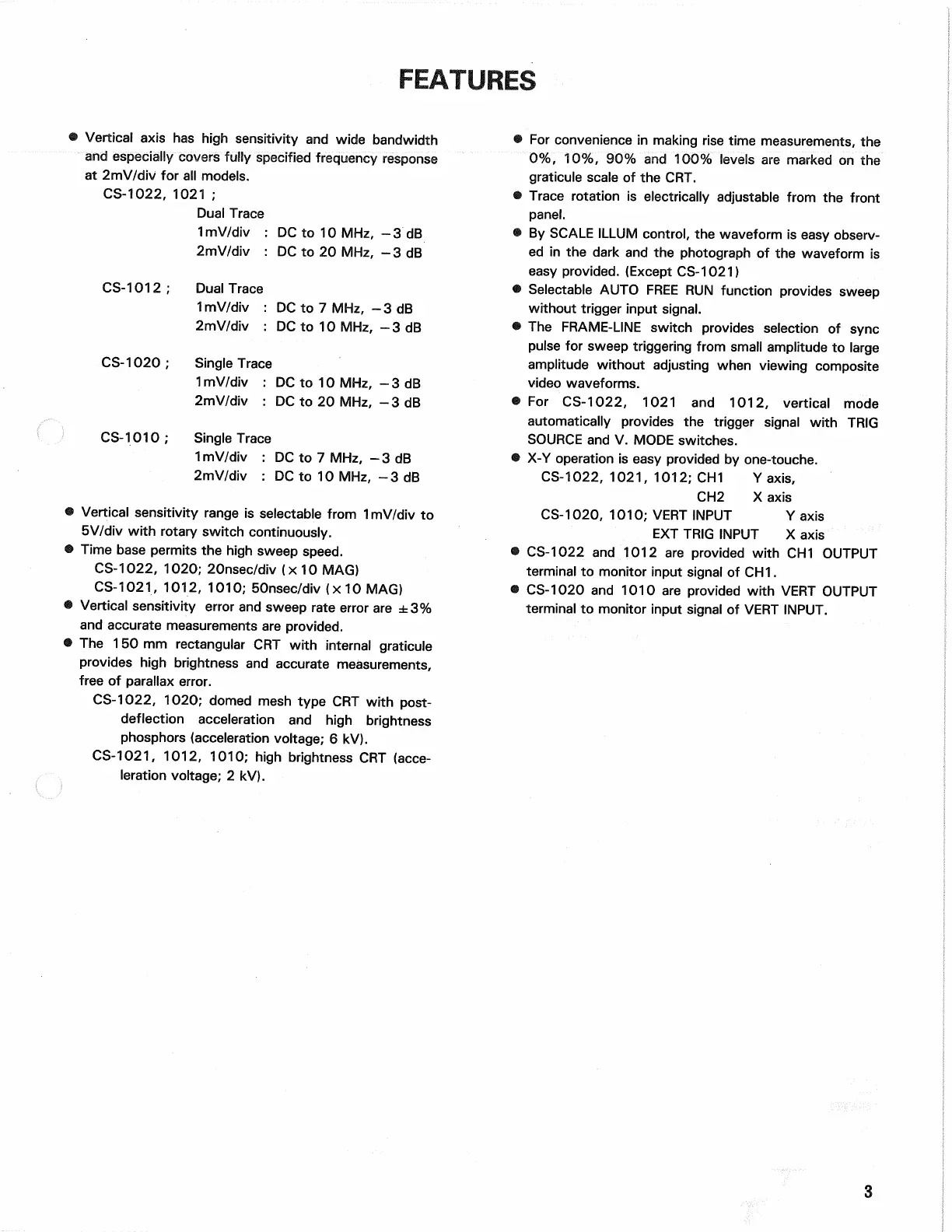

FEATURES
• Vertical axis has high sensitivity and wide bandwidth
and especially covers fully specified frequency response
at 2mV/div for all models.
CS-1022, 1021 ;
Dual Trace
1 mV/div : DC to 10 MHz, -3 dB
2mV/div : DC to 20 MHz, -3 dB
CS-1012 ; Dual Trace
1 mV/div : DC to 7 MHz, -3 dB
2mV/div : DC to 10 MHz, -3 dB
CS-1020 ; Single Trace
1 mV/div : DC to 10 MHz, -3 dB
2mV/div : DC to 20 MHz, -3 dB
CS-1010 ; Single Trace
1 mV/div : DC to 7 MHz, -3 dB
2mV/div : DC to 10 MHz, -3 dB
• Vertical sensitivity range is selectable from
1
mV/div to
5V/div with rotary switch continuously.
• Time base permits the high sweep speed.
CS-1022, 1020; 20nsec/div (x 10 MAG)
CS-1021,
1012, 1010; 50nsec/div (x10 MAG)
• Vertical sensitivity error and sweep rate error are ±3%
and accurate measurements are provided.
• The 150 mm rectangular CRT with internal graticule
provides high brightness and accurate measurements,
free of parallax error.
CS-1022, 1020; domed mesh type CRT with post-
deflection acceleration and high brightness
phosphors (acceleration voltage; 6 kV).
CS-1021,
1012, 1010; high brightness CRT (acce-
leration voltage; 2 kV).
• For convenience in making rise time measurements, the
0%, 10%, 90% and 100% levels are marked on the
graticule scale of the CRT.
• Trace rotation is electrically adjustable from the front
panel.
• By SCALE ILLUM control, the waveform is easy observ-
ed in the dark and the photograph of the waveform is
easy provided. (Except CS-1021)
• Selectable AUTO FREE RUN function provides sweep
without trigger input signal.
• The FRAME-LINE switch provides selection of sync
pulse for sweep triggering from small amplitude to large
amplitude without adjusting when viewing composite
video waveforms.
• For CS-1022, 1021 and 1012, vertical mode
automatically provides the trigger signal with TRIG
SOURCE and V. MODE switches.
• X-Y operation is easy provided by one-touche.
CS-1022, 1021, 1012; CH1 Y axis,
CH2 X axis
CS-1020, 1010; VERT INPUT Y axis
EXT TRIG INPUT X axis
• CS-1022 and 1012 are provided with CH1 OUTPUT
terminal to monitor input signal of CH1.
• CS-1020 and 1010 are provided with VERT OUTPUT
terminal to monitor input signal of VERT INPUT.
3
