Kenwood CS-1021 User Manual

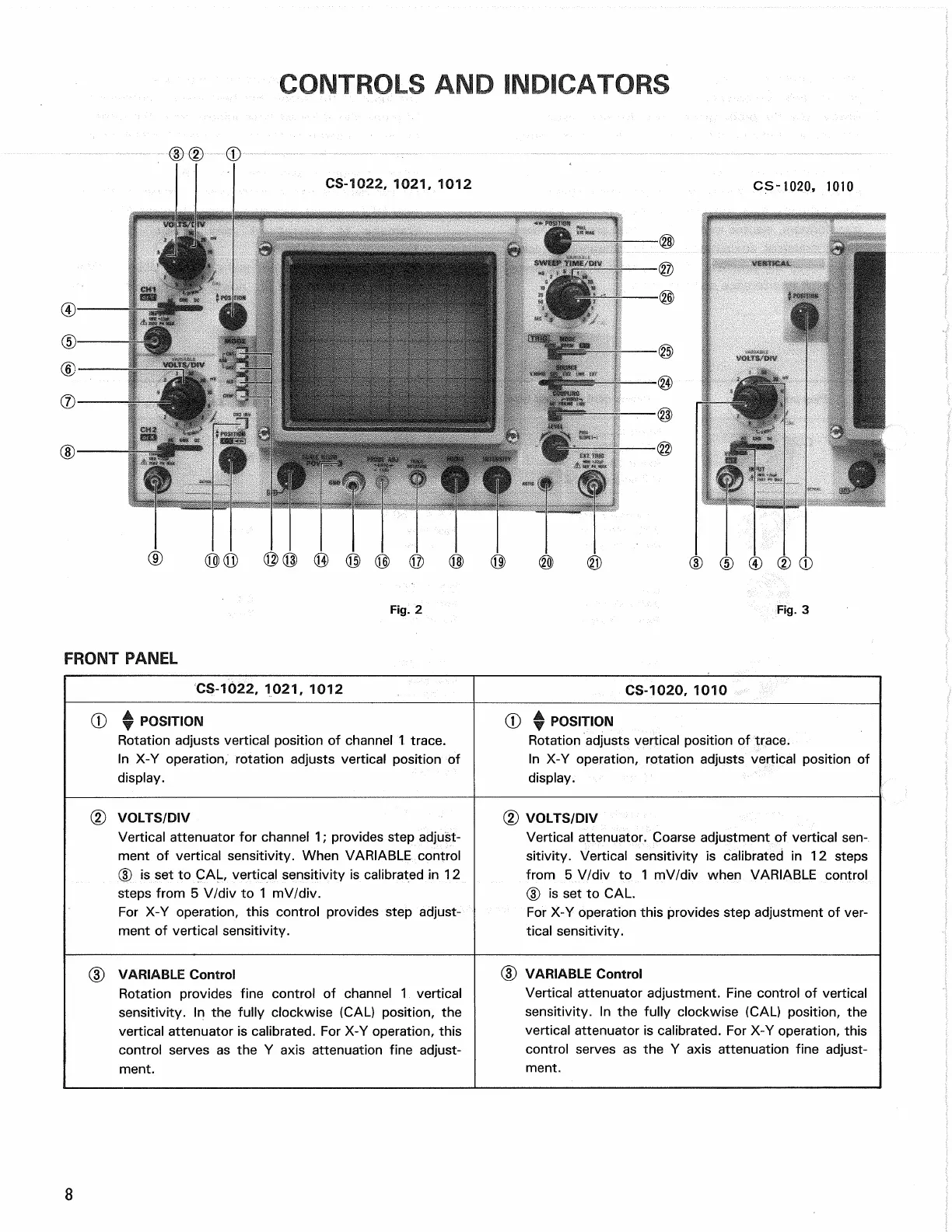

CONTROLS AND INDICATORS
CS-1022, 1021, 1012
CS-1020, 1010
Fig. 2 Fig. 3
FRONT PANEL
CS-1022, 1021, 1012
CS-1020, 1010
0 y POSITION
Rotation adjusts vertical position of channel 1 trace.
In X-Y operation, rotation adjusts vertical position of
display.
0 y POSITION
Rotation adjusts vertical position of trace.
In X-Y operation, rotation adjusts vertical position of
display.
(D VOLTS/DIV
Vertical attenuator for channel 1; provides step adjust-
ment of vertical sensitivity. When VARIABLE control
(3) is set to CAL, vertical sensitivity is calibrated in 12
steps from 5 V/div to 1 mV/div.
For X-Y operation, this control provides step adjust-
ment of vertical sensitivity.
(D VOLTS/DIV
Vertical attenuator. Coarse adjustment of vertical sen-
sitivity. Vertical sensitivity is calibrated in 12 steps
from 5 V/div to 1 mV/div when VARIABLE control
(D is set to CAL.
For X-Y operation this provides step adjustment of ver-
tical sensitivity.
(3) VARIABLE Control
Rotation provides fine control of channel 1 vertical
sensitivity. In the fully clockwise (CAL) position, the
vertical attenuator is calibrated. For X-Y operation, this
control serves as the Y axis attenuation fine adjust-
ment.
(D VARIABLE Control
Vertical attenuator adjustment. Fine control of vertical
sensitivity. In the fully clockwise (CAL) position, the
vertical attenuator is calibrated. For X-Y operation, this
control serves as the Y axis attenuation fine adjust-
ment.
8
