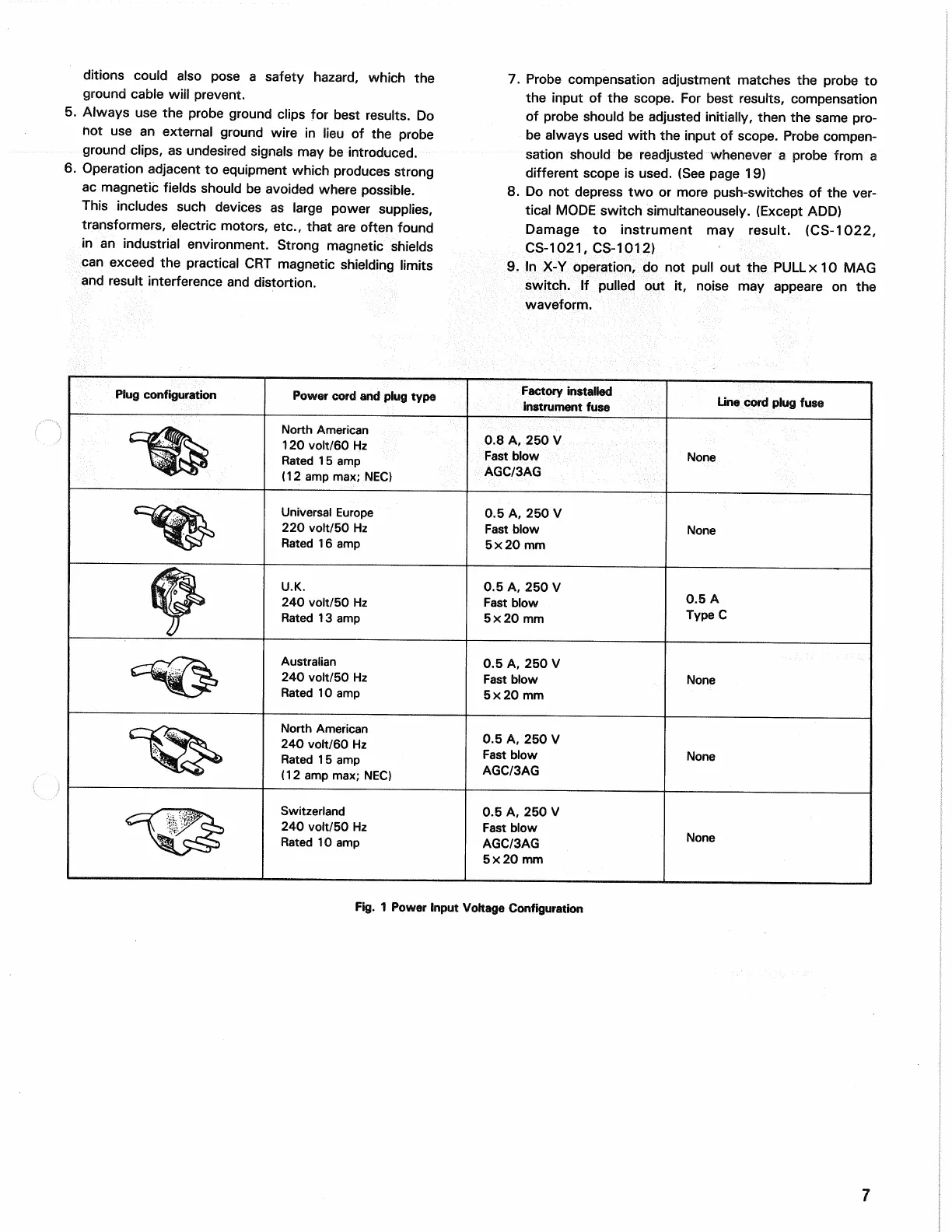

ditions could also pose a safety hazard, which the
ground cable will prevent.
5. Always use the probe ground clips for best results. Do
not use an external ground wire in lieu of the probe
ground clips, as undesired signals may be introduced.
6. Operation adjacent to equipment which produces strong
ac magnetic fields should be avoided where possible.
This includes such devices as large power supplies,
transformers, electric motors, etc., that are often found
in an industrial environment. Strong magnetic shields
can exceed the practical CRT magnetic shielding limits
and result interference and distortion.
7. Probe compensation adjustment matches the probe to
the input of the scope. For best results, compensation
of probe should be adjusted initially, then the same pro-
be always used with the input of scope. Probe compen-
sation should be readjusted whenever a probe from a
different scope is used. (See page 19)
8. Do not depress two or more push-switches of the ver-
tical MODE switch simultaneousely. (Except ADD)
Damage to instrument may result. (CS-1022,
CS-1021, CS-1012)
9. In X-Y operation, do not pull out the PULLx 10 MAG
switch. If pulled out it, noise may appeare on the
waveform.
Plug configuration
Power cord and plug type
Factory installed
instrument fuse
Line cord plug fuse
North American
120 volt/60 Hz
Rated 15 amp
(12 amp max; NEC)
0.8 A, 250 V
Fast blow
AGC/3AG
None
Universal Europe
220 volt/50 Hz
Rated 16 amp
0.5 A, 250 V
Fast blow
5 x 20 mm
None
U.K.
240 volt/50 Hz
Rated 13 amp
0.5 A, 250 V
Fast blow
5 x 20 mm
0.5 A
TypeC
Australian
240 volt/50 Hz
Rated 10 amp
0.5 A, 250 V
Fast blow
5 x 20 mm
None
North American
240 volt/60 Hz
Rated 15 amp
(12 amp max; NEC)
0.5 A, 250 V
Fast blow
AGC/3AG
None
Switzerland
240 volt/50 Hz
Rated 10 amp
0.5 A, 250 V
Fast blow
AGC/3AG
5 x 20 mm
None
Fig. 1 Power Input Voltage Configuration
7
