Installation and ConnectionInstallation and Connection
Notes on using the supplied GPS aerial (Å)
• Use the supplied GPS aerial (Å). Using the GPS aerial
other than the supplied one may cause a drop in
positioning accuracy.
• Depending on the type of car, reception of the GPS
satellite signals might not be possible with an inside
installation.
• Please install the supplied GPS aerial (Å) in an area
away from any aerials that are used with CB radios or
satellite televisions.
• The supplied GPS aerial (Å) should be installed at a
position that is spaced at least 30 cm from cellular
phone or other transmitting aerial. Signals from the
GPS satellite may be interfered with by these types of
communication.
• Painting the supplied GPS aerial (Å) with (metallic)
paint may cause a drop in performance.

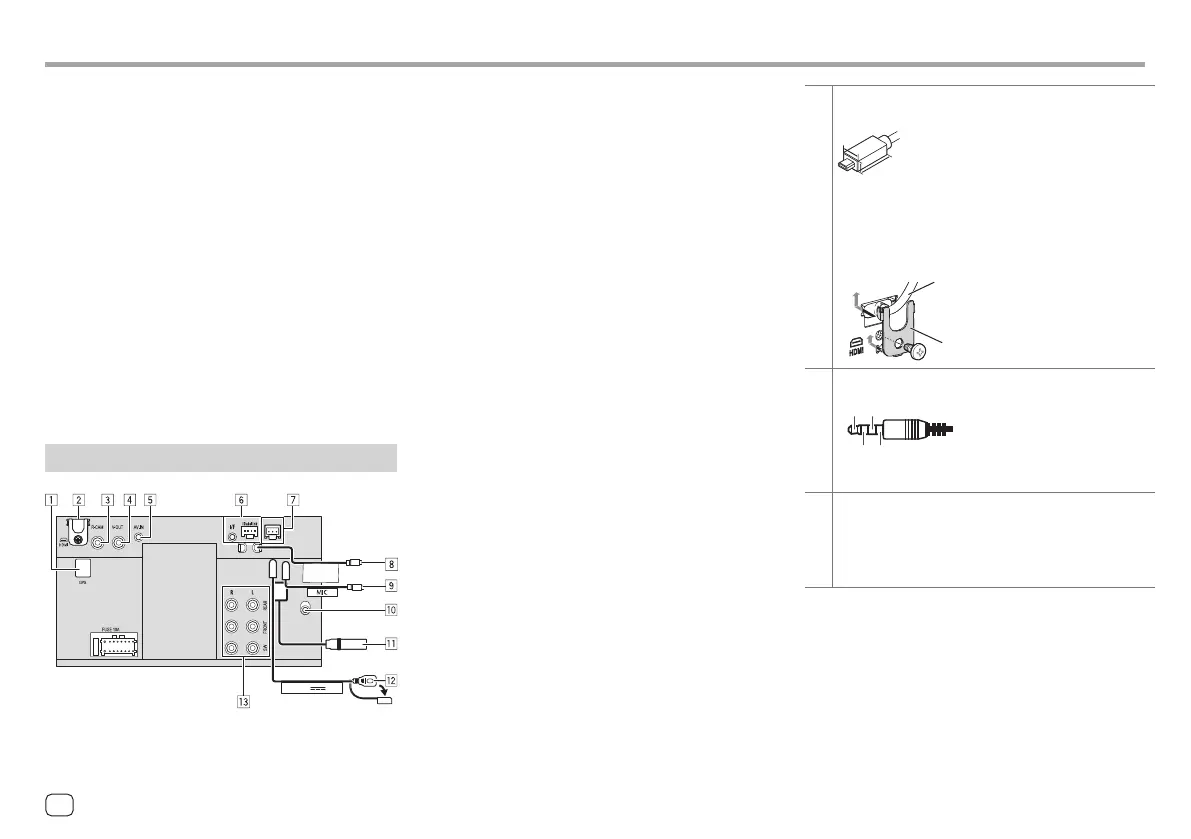

Connecting external components
(USB1)5V 1.5A
AVM
STEERING
REMOTE
2
Use HDMI cable KCA-HD200 (optional
accessory).
W
H
D
W: 11.1 mm or less
H: 7.7 mm or less
D: 21.5 mm or less
When you connect the cable to HDMI terminal,
detach the fixture. After connecting the cable,
attach the fixture back using the screw.
Fixture
HDMI cable
5
Connect the following type of 4-pole mini plug:
1
24
3
1
Left audio
2
Right audio
3
Ground
4
Composite video
7
Connect an around view monitor (commercially
available). For details on connections, refer
to the instructions manual supplied with the
around view monitor.
1 GPS aerial input (GPS)
2 HDMI terminal
3 Rear view camera input (R-CAM)
4 Video output (V-OUT)
5 Audio video input (AV-IN)
6 iDatalink input for connecting an ADS adapter
(commercially available)
7 Around View Monitor terminal (AVM)
8 Steering wheel remote input (STEERING REMOTE)
9 Microphone input (MIC) (page 53)
p DAB aerial input (pages 24 and 54)
q Aerial terminal
w USB terminal
e Output terminals*
• Left output (White)
• Right output (Red)
REAR: Rear speaker preouts
FRONT: Front speaker preouts
SW: Subwoofer preouts
For 3-way crossover:
REAR: Tweeter preouts
FRONT: Mid range speaker preouts
SW: Subwoofer preouts
* When connecting an external amplifier, connect its ground wire
to the chassis of the car; otherwise the unit may be damaged.
52
ENGLISH
00DMX7522DABSX.indb5200DMX7522DABSX.indb52 2022/11/1513:312022/11/1513:31
