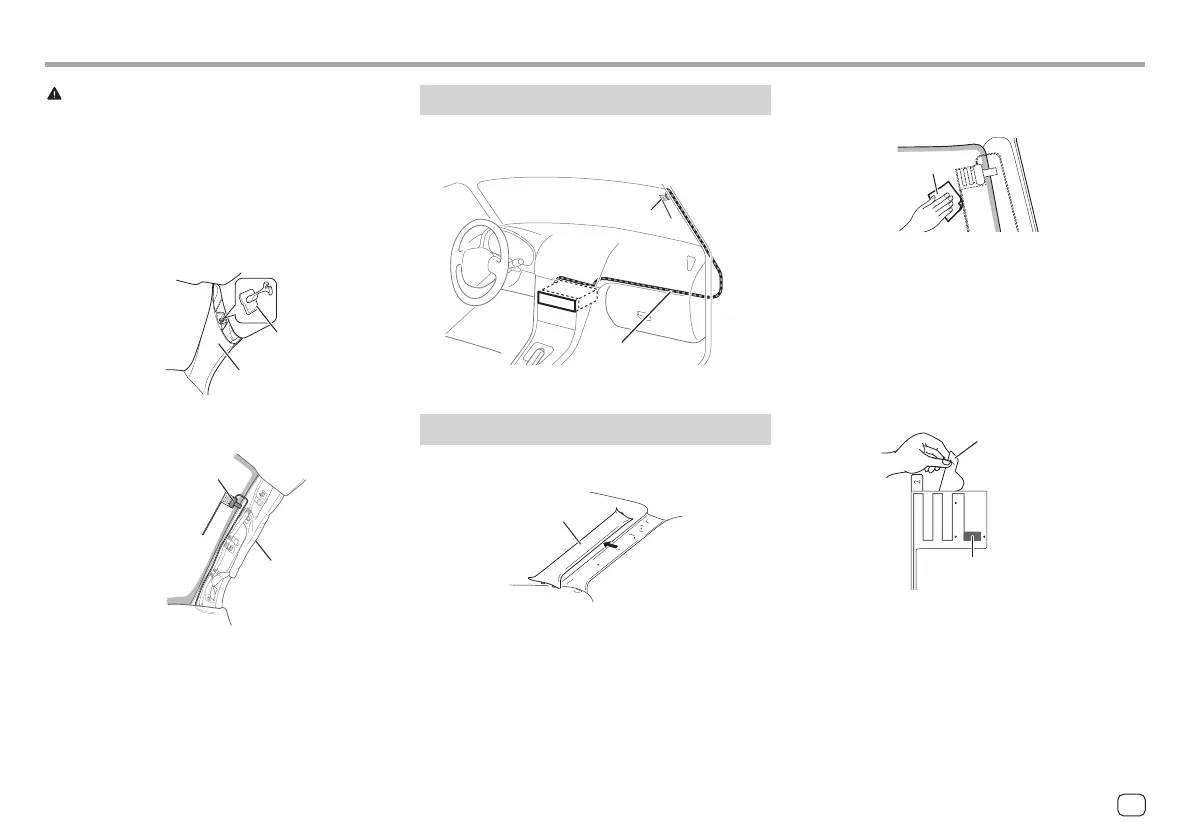

Installation and ConnectionInstallation and Connection
CAUTION
When installing the aerial cable inside the front pillar
with the air bag installed
• The front pillar cover is secured with a special clip
which may need to be replaced when it is removed.
Contact your vehicle dealer for details on removing
the front pillar cover and availability of replacement
parts.
Clip
Front pillar
• Install the amplifier unit (B) above the air bag so that
it does not obstruct the operation of the air bag.
(B)
Air bag
Installation overview
The aerial should be installed on the passenger side
for safety.
(B)
(A)
Aerial installation
1 Remove the front pillar cover of your car.
Front pillar
2 Clean the windscreen with the supplied
cleaner (D).
(D)
– Wait until the glass surface is completely dry
before proceeding.
– Warm the surface of the windscreen with
defroster if it is cold (during winter).
3 Remove the separator (tag 1) of film aerial
(A) horizontally and paste the aerial on
the windscreen.
(A)
Separator (tag 1)
Do not touch the pasting surface (adhesive side) of
the film aerial (A).
55
ENGLISH
00DMX7522DABSX.indb5500DMX7522DABSX.indb55 2022/11/1513:312022/11/1513:31
To Next Page
