Installation and ConnectionInstallation and Connection

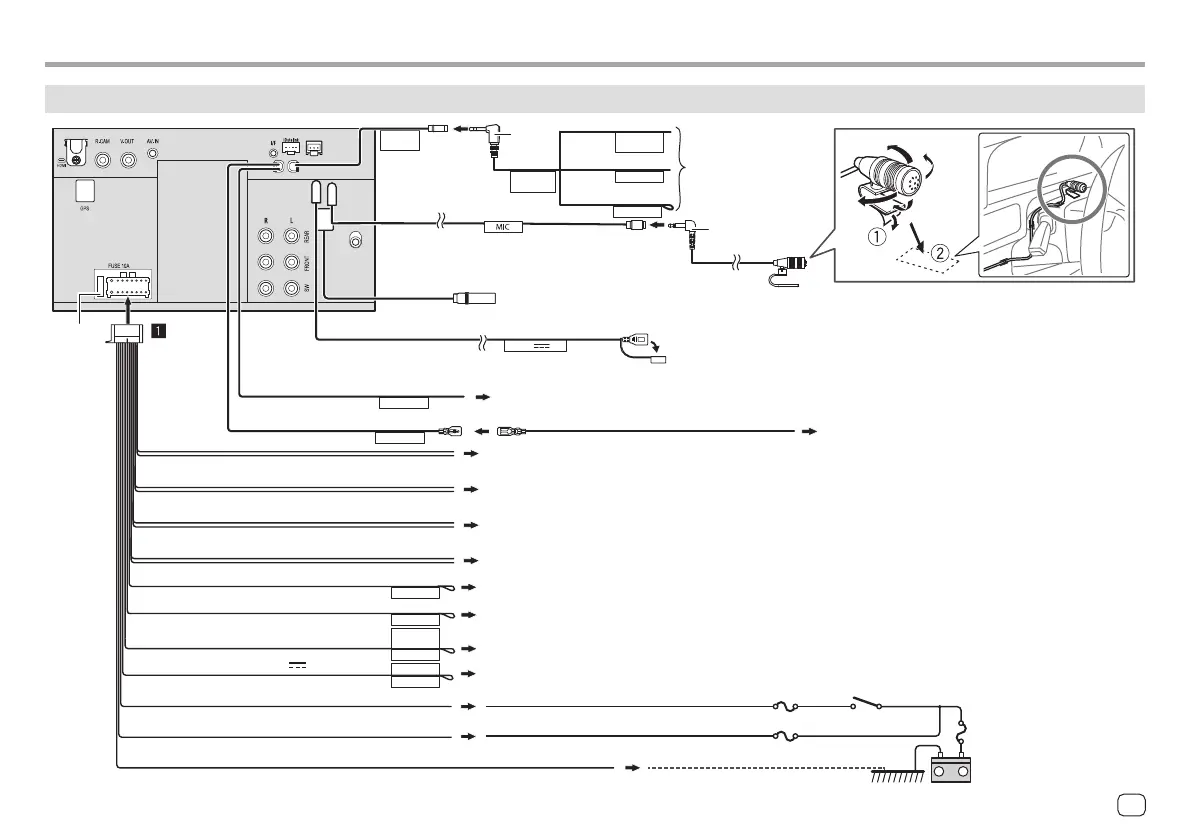

Wiring connection
REVERSE
PRK SW
(USB1)5V 1.5A
P.CONT
ANT.CONT
REMOTE CONT
REMOTO INPUT
STEERING WHEEL
MUTE
ILLUMI
π
AVM
GND
Input 2
STEERING
REMOTE
ST REMOTE
Input 1
I
Î
Steering
Remote
Connect to your vehicle’s
steering remote harness.
Contact your KENWOOD
dealer fordetails.
Gray/Red
Bright green/Red
Purple/Red
Connect a USB device
To the car’s reverse lamp harness when using the optional rear view camera
10 A fuse
Connect the aerial cord to the aerial terminal
USB terminal (1 m)
Purple with white stripe
Light green
Extension wire (
ø
)
To the car’s parking brake detection switch harness
(For best safety, be sure to connect the parking sensor.)
To front speakers (left) / Mid-range speakers (left) for 3-way crossover
To the car chassis
White
]
/ White with black stripe
[
Green
]
/ Green with black stripe
[
Gray
]
/ Gray with black stripe
[
Purple
]
/ Purple with black stripe
[
Orange with white stripe
Blue with white stripe (12 V
350 mA)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
To the car light control switch
To rear speakers (right) / Tweeters (right) for 3-way crossover
To front speakers (right) / Mid-range speakers (right) for 3-way crossover
To rear speakers (left) / Tweeters (left) for 3-way crossover
Car battery
Car fuse
To the power control terminal when using the optional power amplifier (Or)
To the control terminal of the motor aerial or to the power terminal for the booster amplifier of film-type aerial
Ignition key switch
(Not used for this unit)
Light blue with yellow stripe
Brown
To the steering wheel remote control adapter (not supplied)
