Installation and ConnectionInstallation and Connection
Installing the DAB aerial
Connect the supplied DAB aerial Ï to the DAB aerial
input. (See “Connecting external components” on
page 52.)
For details, see the following pages.
CAUTION
• The film aerial (A) is exclusively for use inside the
vehicle.
• Do not install at the following locations:
– where it may block the driver’s view.
– where it may obstruct the operation of safety
devices such as air bags.
– on movable glass surfaces such as the rear hatch.
– at side of vehicle (e.g. door, front quarter window).
– on rear window.
• Signal strength will weaken when installed at the
following locations:
– on IR reflecting glass or locations covered with
mirror type glass film.
– where it overlaps with genuine radio aerial
(pattern).
– where it overlaps with window heating wires.
– on glass that blocks radio signals (e.g. IR reflecting
glass, thermal insulation glass).
• Poor reception may occur:
– due to noise when windscreen wiper, air
conditioner, or motor is turned on.
– depending on the direction of the broadcast
station with respect to the vehicle (aerial).
• Thoroughly wipe oil and dirt from the pasting surface
with the supplied cleaner (D).
• Do not bend or damage the film aerial (A).
• It may not be possible to install on certain vehicles.
• Check the cable routing of the film aerial (A) and
amplifier unit (B) before pasting.
• Do not apply any glass cleaner after pasting the film
aerial (A).

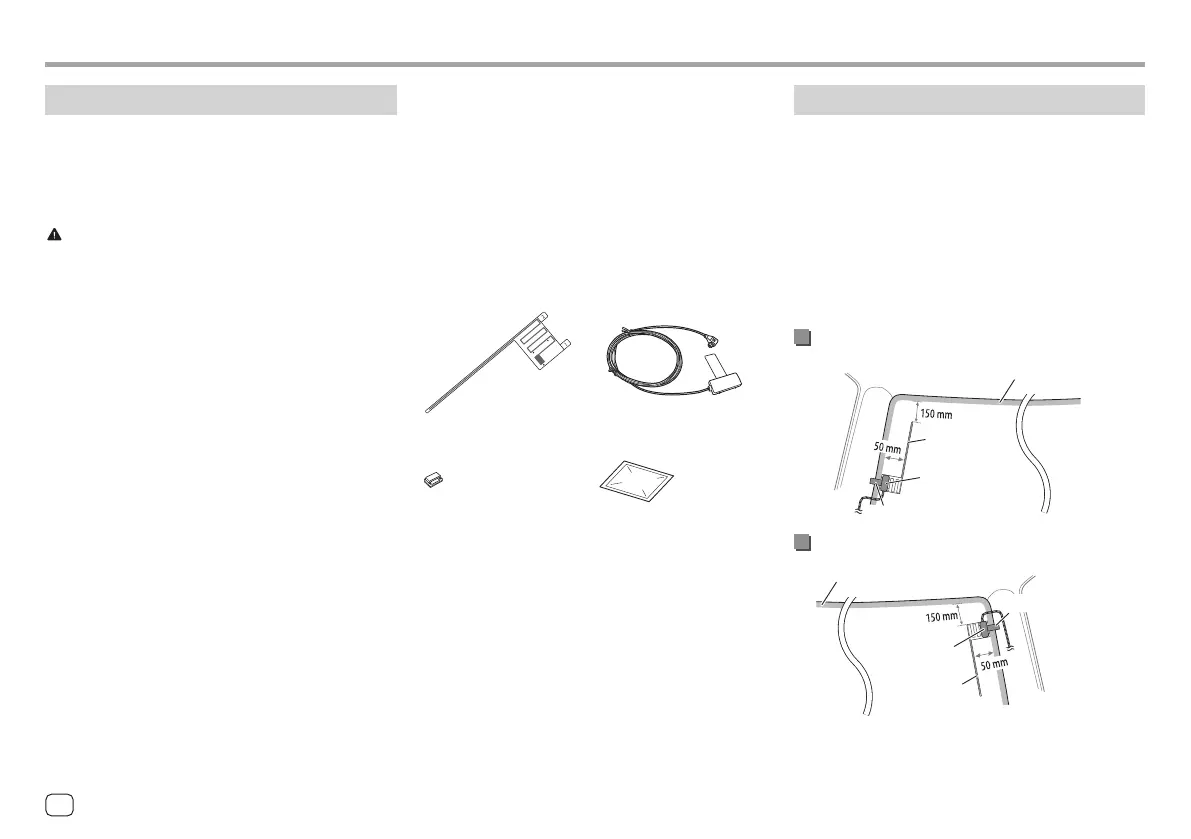

Part list for installation
(A) Film aerial (×1) (B) Amplifier unit (cable
with booster, 3.5 m)
(×1)
(C) Cable clamper (×3) (D) Cleaner (×1)
Determine the aerial installation position
• The direction of the film aerial (A) changes
depending on whether the film aerial (A) is installed
on the right side or left side.
• Be sure to check the installation location of film aerial
(A) before installing. Film aerial cannot be re-pasted.
• Separate from other aerials by at least 100 mm.
• Do not paste the amplifier unit (B) on the ceramic
line (black part) around the front glass. Because there
is not enough adhesion.
Installing the aerial on the left side
(A)
(B)
Ceramic line (black part)
Earth sheet*
Installing the aerial on the right side
(A)
(B)
Ceramic line (black part)
Earth sheet*
* Paste the earth sheet of the amplifier unit (B) on the metal part of
the front pillar.
54
ENGLISH
