25
DNX4230TR
Connection

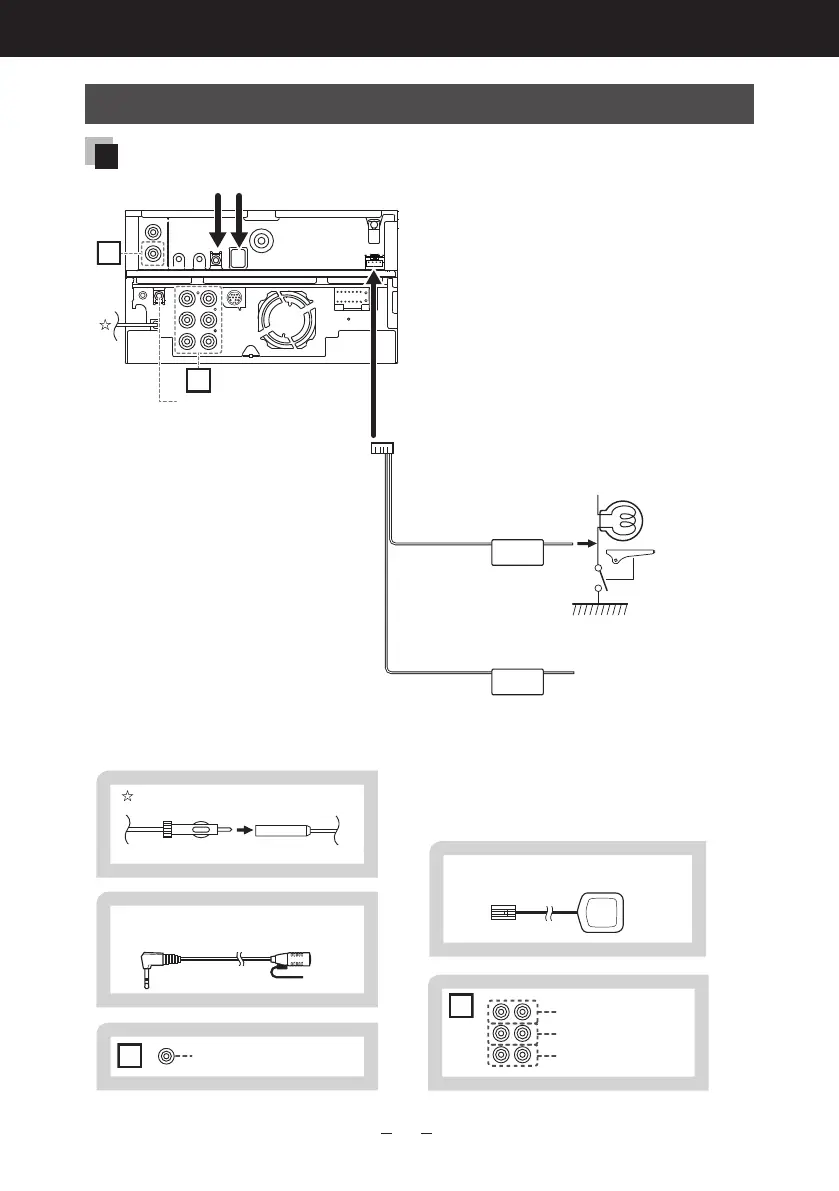

System connection
PRK SW
REVERSE
AV Audio output
2
1
Connect to the vehicle’s parking
brake detection switch harness.
For best safety, be sure to
connect the parking sensor.
Light Green
(Parking sensor wire)
Purple/White (Reverse sensor wire)
Connect to vehicle’s
reverse lamp harness
when using the optional
rear view camera.
Accessory 2
Accessory 7 Accessory 5
Rear Audio Preout
Front Audio Preout
Subwoofer Preout
2
Accessory 5: GPS Antenna
AV Video Output
1
FM/AM antenna input
Accessory 7:
Bluetooth Microphone
