Kenwood Specifications - Connecting Optional Accessories; DAB Antenna and USB;iPod Connectivity; Camera and AV Input Connectivity

27
DNX4230TR

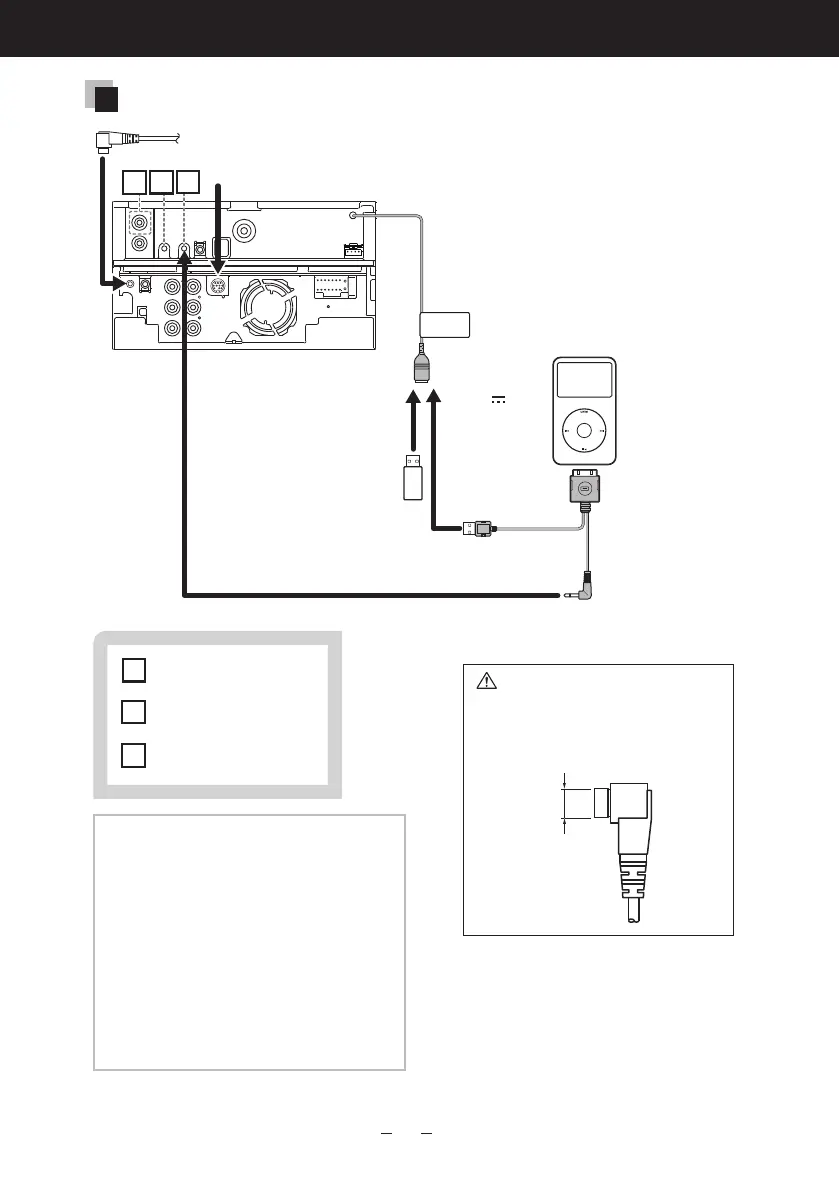

Optional accessory connection
USB terminal (0.8 m)
5V
=
1A
KCA-iP202
(Optional Accessory)
USB device
(commercially
available)
USB terminal (0.8 m)
AV Output (1.8m)
External I/F
iPod
(commercially available)
USB maximum
power
supply current
: DC 5 V
1 A
NOTE
•Whenyouconnectarearviewcamerawith
audiooutput,connecttoAV-IN.Andselect
“RearCamera”forAV-INInterfaceonAV-IN
SETUPscreen.
•Whenyouconnectarearviewcamera
withoutaudiooutput,connecttoRearView
CameraInput.
•WhenAV-IN2Interfaceissetto“AV-IN2”
ontheAV-INSETUPscreen,iPodcanbe
connectedonlytotheUSBterminalusing
theKCA-iP102(OptionalAccessory).
3
2
1
Rear View Camera Input
AV-IN (CA-C3AV; Optional
Accessory) input
2
1
DAB antenna CX-DAB1(Optional accessory)
Use of a CX-DAB1(optional accessory)
as a DAB antenna is recommended.
When using a commercially available
DAB antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Φ 6.5 mm
(maximum)
iPod/ AV-IN2 (CA-C3AV;
Optional Accessory) input
3
