3. Design of the Device

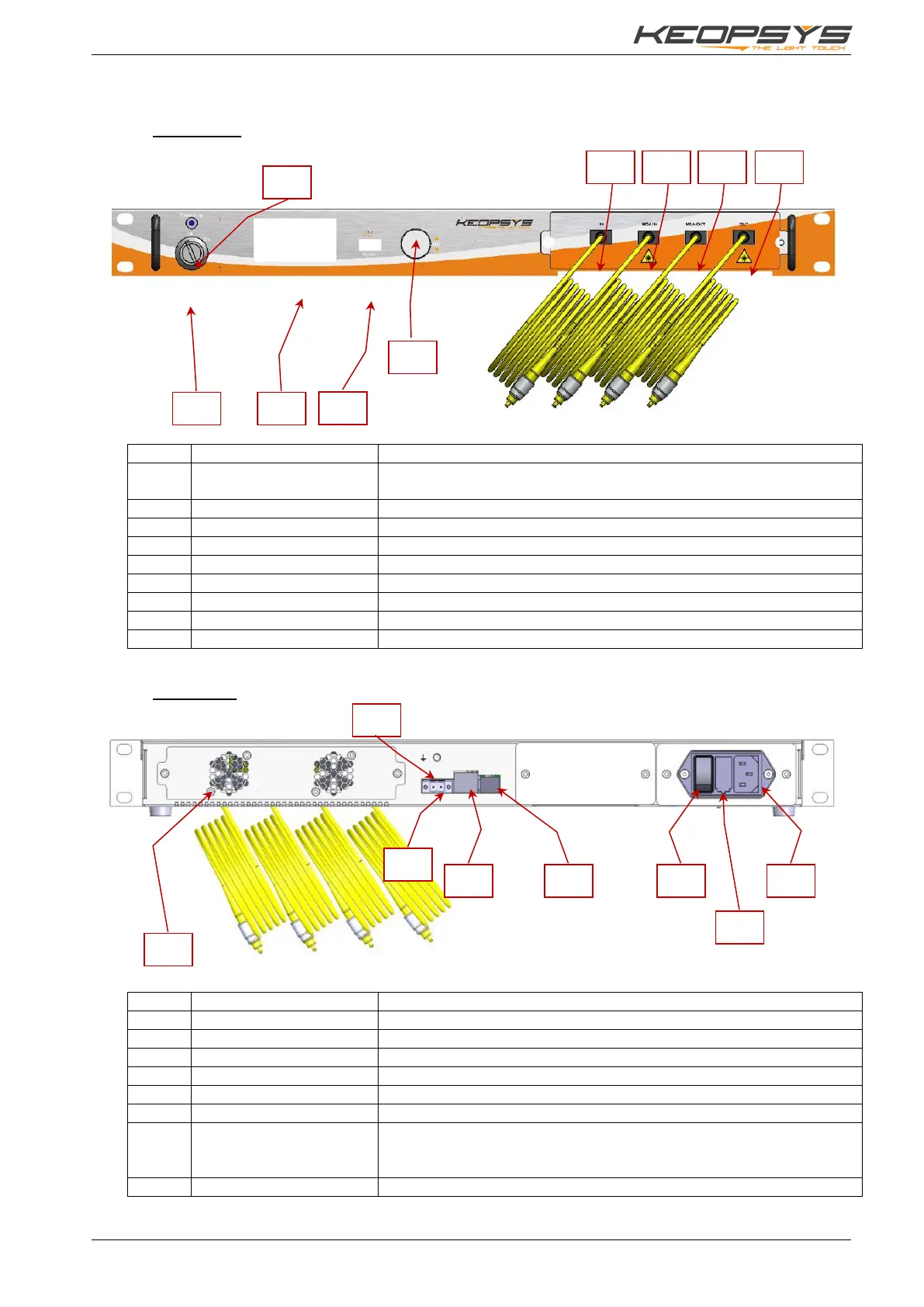

3.1. Device overview
3.1.1. Front Panel
N#
Designation
Description
1
On/Off Key
Enable laser emission. Use this key to disable laser emission in case
of emergency
2
Display
Displays status and control information to the user
3
USB
Reserved
4
Knob
Setting dial
5
Input
Input pigtail (amplifier only)
6
MSA Input
Middle Stage Access Input Pigtail (optionnal)
7
MSA Output
Middle Stage Access Output Pigtail (optionnal)
8
Output
Output pigtail
9
Led
Laser Emission
3.1.2. Rear panel
N#
Designation
Description
1
Line
AC power supply
2
On/Off Power
Turn On and Off the main power supply
3
RS232 USB
Device remote control using serial protocole. See §5
4
Ethernet
Device remote control using Web Server Interface See §6.2.
5
Interlock
Safety. See §7.4
6
Fans
Air cooling
7
Input fuse
AC input fuse : S500-3.15
Current : 3.15A
Current breaking 35A
8
Ground
To connect case to the ground.
1
6
5
2
8
3
4
7
9
5
1
2
4
3
6
7
8
