15.3 How to connect the platform
Disconnect the display unit from the power supply.

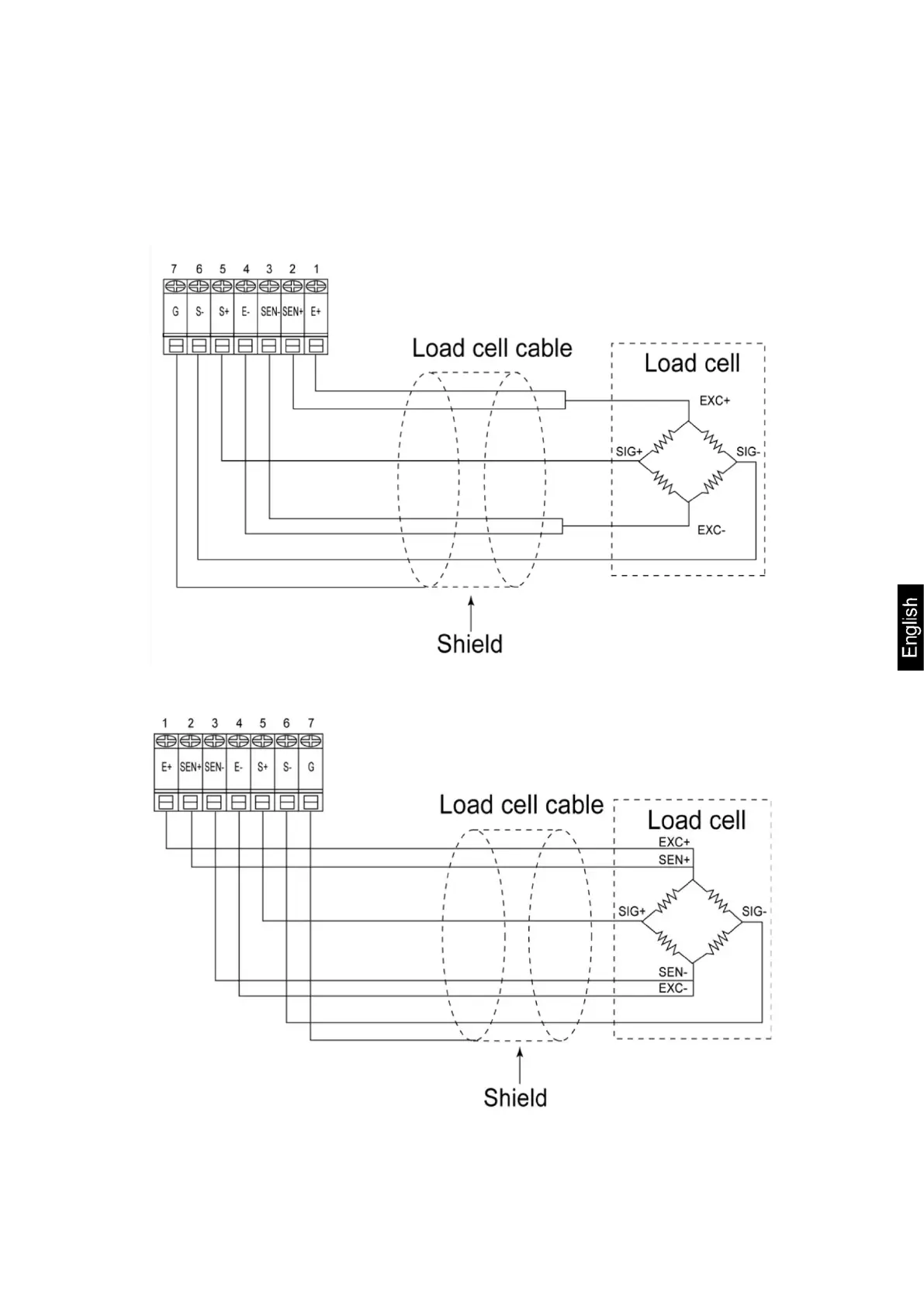

Solder the individual leads of the load cell cable onto the circuit board, see
diagrams below.
4-PIN
6-PIN
