User Manual
SUPM1
page 56 of 94© KEYMILE December 2015 EN/LZTBU 372 129/1 RC
94
Functional Description
− Foreign DC voltage > +20 V or < -20 V:
Isolation is untestable,
Capacitance is untestable,
Noise is untestable.
Another reason can be that an alarm from a failed line-test has been
cleared by the “Reset Line Test Defects” button in the SUPM1 unit status.
• Not tested
Indicates that this test was not executed and so no test results are availa-
ble.

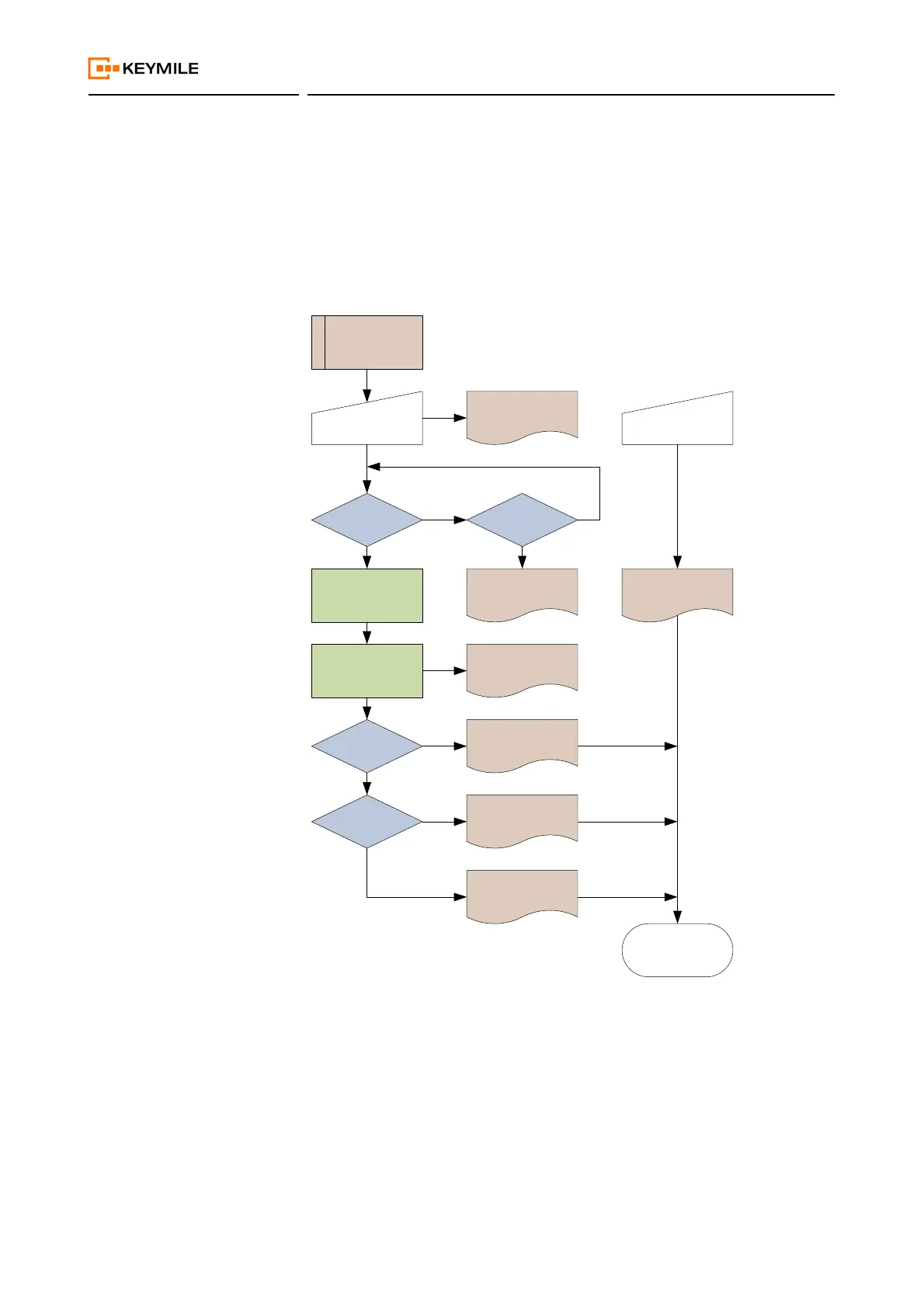

Figure 16: Finite state machine for the line-test procedure
The line-test measurement results are displayed with the test description,
the test status and the measured value.
The test status can take the following states:
• Not Tested
A line-test is running but this test parameter has not been tested so far.
Idle
Requested
Locked
Start Line Test
Not Tested
Y
N
Rejected
Perform Test
Running
Test Timeout
Stop Line Test
Y
N
Aborted
N
N
Unlocked
See Results
Any Test NOK
Y
Failed
All Tests OK
Y
Passed
