Introduction
2.2 Unit View

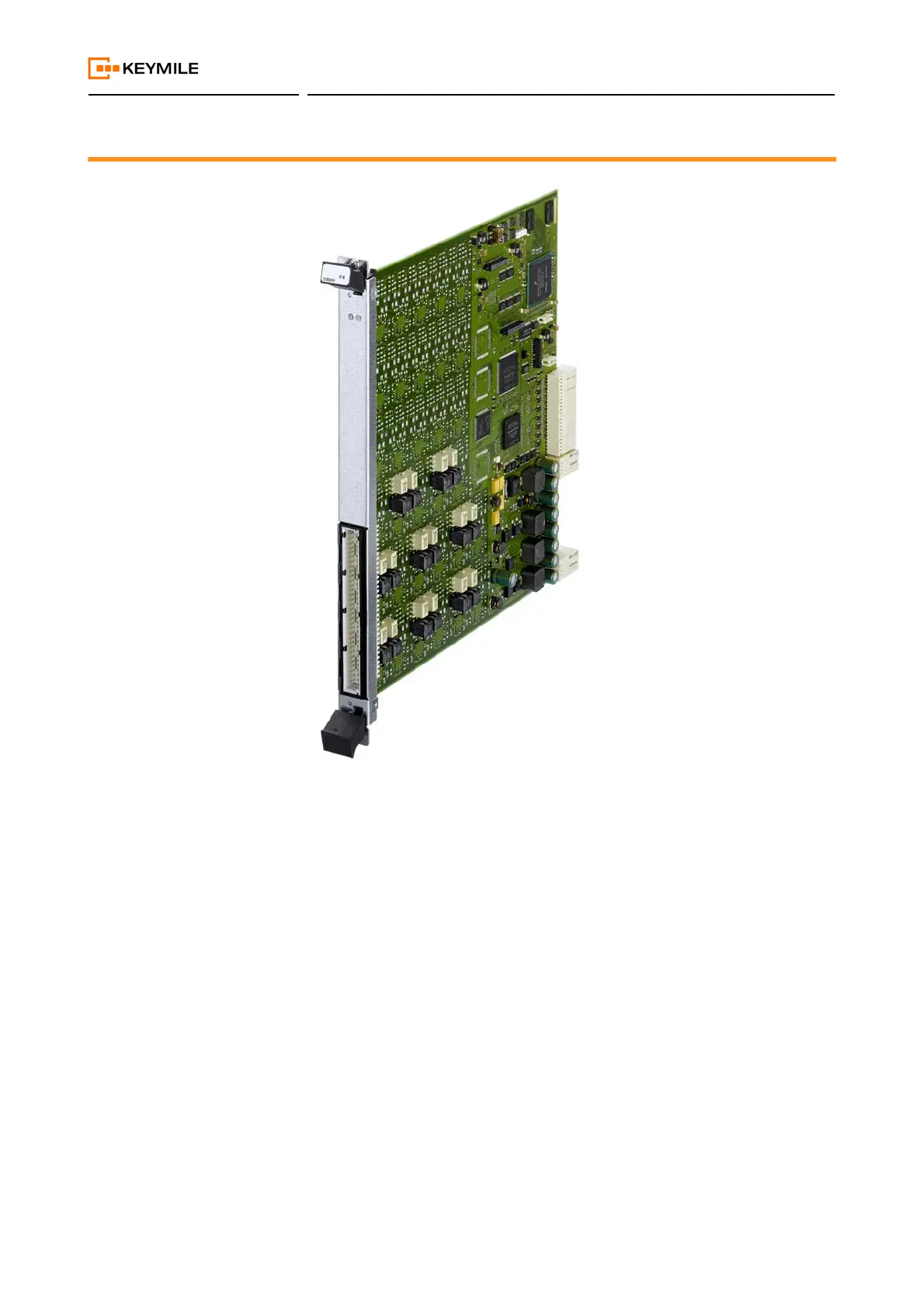

Figure 2: SUPM1 unit view
Figure 2 "SUPM1 unit view" shows the SUPM1 unit hardware. On the front
plate are two LEDs for the unit- and traffic failure indication and one standard
DIN 41 612 based connector for 16 PSTN signals.
