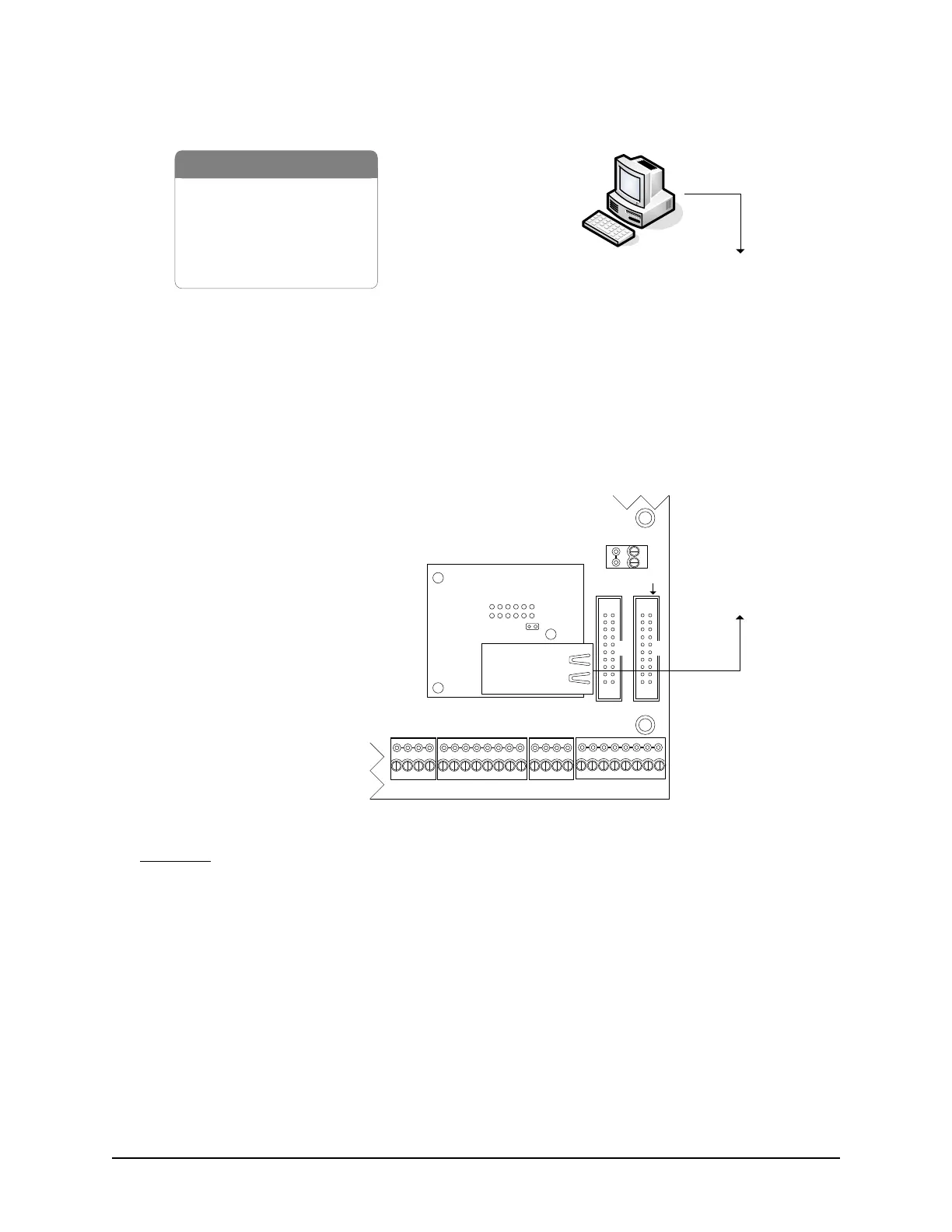

Figure 75 - Communication - NETCOM2P or NETCOM6P/ACU
Important
NETCOM2P or NETCOM6P plugged directly into the control board only supports a single panel
communication loop.
After installing and connecting the NETCOMP, attach and secure the control board’s protective cover
before applying power.
- PC
- 10/100 Base-T Cable
- Control Board
- NETCOM2P or NETCOM6P
to network
Host PC with
Communication Manager
Parts List
to network
10 or 100
Base-T
Current Draw
ACU + NETCOMP = 270 mA
RJ45
Terminal
Jack
NETCOMP
RESET
Control Board
(PC 109x)
Cut view with
ACU protective
cover removed.
Common AUX Inputs - E
CPB/CB MODULE
(COM4)
AUX Inputs - D
Common
IOCB (COM1)
NETCOMP plugs into M1 on
control board.
RX
TX
KI-00161E-04-13
Ensure S2
DIP switch 7 = ON
DIP switch 8 = OFF
