Keyscan CA8500B - Figure 48 - Keyscan K-VAN Proximity Reader (125 Khz)

To Next Page

To Previous Page

Keyscan Inc. – Technical Guide (PC109x - 07.15)

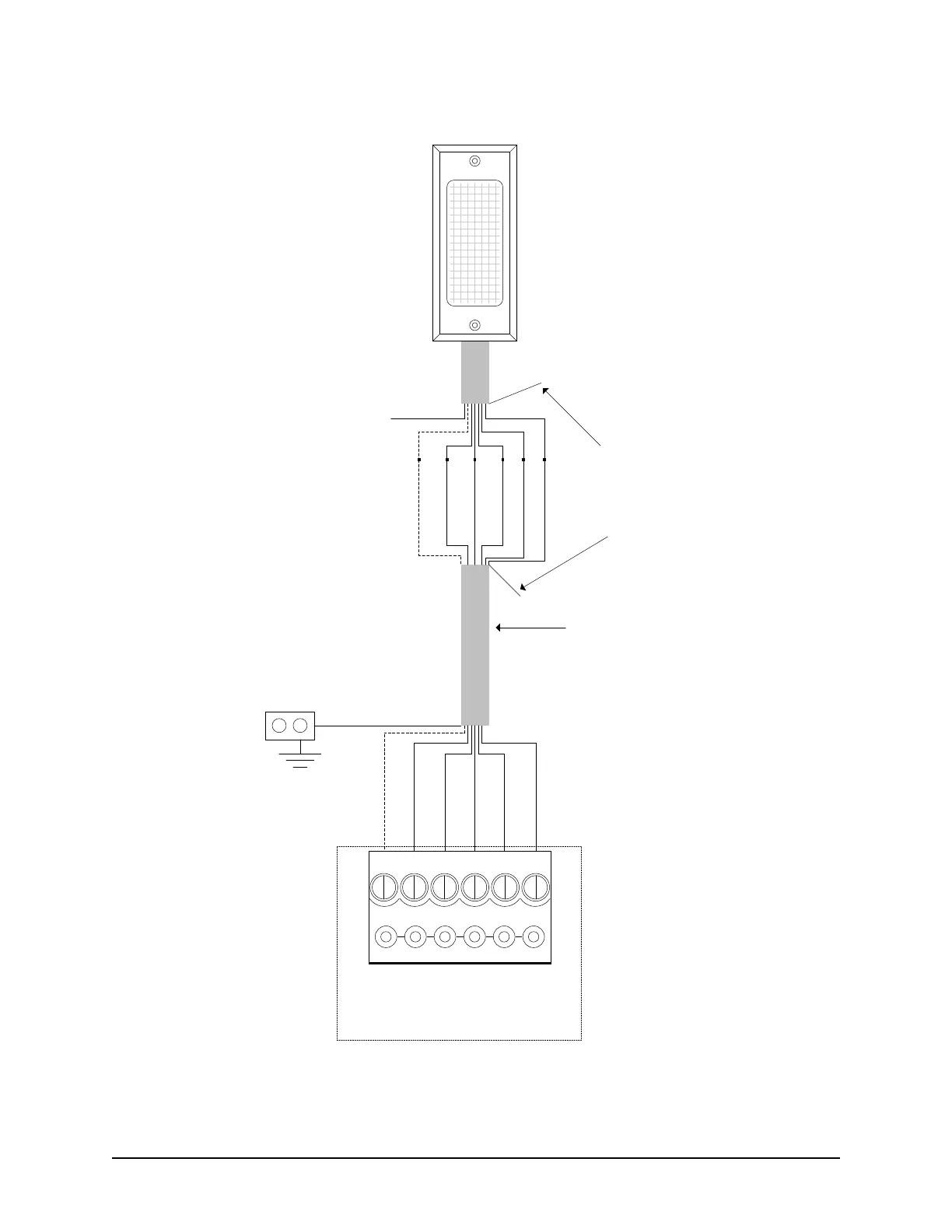

Figure 48 – Keyscan K-VAN Proximity Reader (125 kHz)

LED (Brown)

D1 (White)

D0 (Green)

PWR (Red)

GND (Black)

Shield not

connected at

reader.

Isolate with

electrical tape.

Shield

ACU

Ground

Lug

D1 (White)

GND (Black)

LED (Brown)

PWR (Red)

D0 (Green)

Pre-alert (Blue)

6 conductors - shielded 22 AWG

Maximum - 500 feet (152.4 m)

Orange wire

not used.

Isolate & tape

back.

Orange

Reader terminal on control board

LED D1

WHT

GRN

PWR

RED

GND

BLK

(BEEP)

Blue used for pre-alert otherwise

isolate and tape back.

If connecting external sound device,

see Pre-Alert Relay Option or refer to

ACU cut sheet enclosed with panel

for ACU/OCB8 relay assignments.
