10 Keysight 16452A Liquid Test Fixture
General Information
Supplemental Performance Characteristics
1-
• The calculation is done using the capacitive measurement method (see
“Capacitive Measurement Method” on page 34).
• The measurement instrument is LCR Meter/Impedance Analyzer with 4
terminal pair.
• The relative dielectric constant is 1 < | | < 500
The fixture error
1
is defined by:
Error = A + B [%] (See Figure 1-4)
Where,

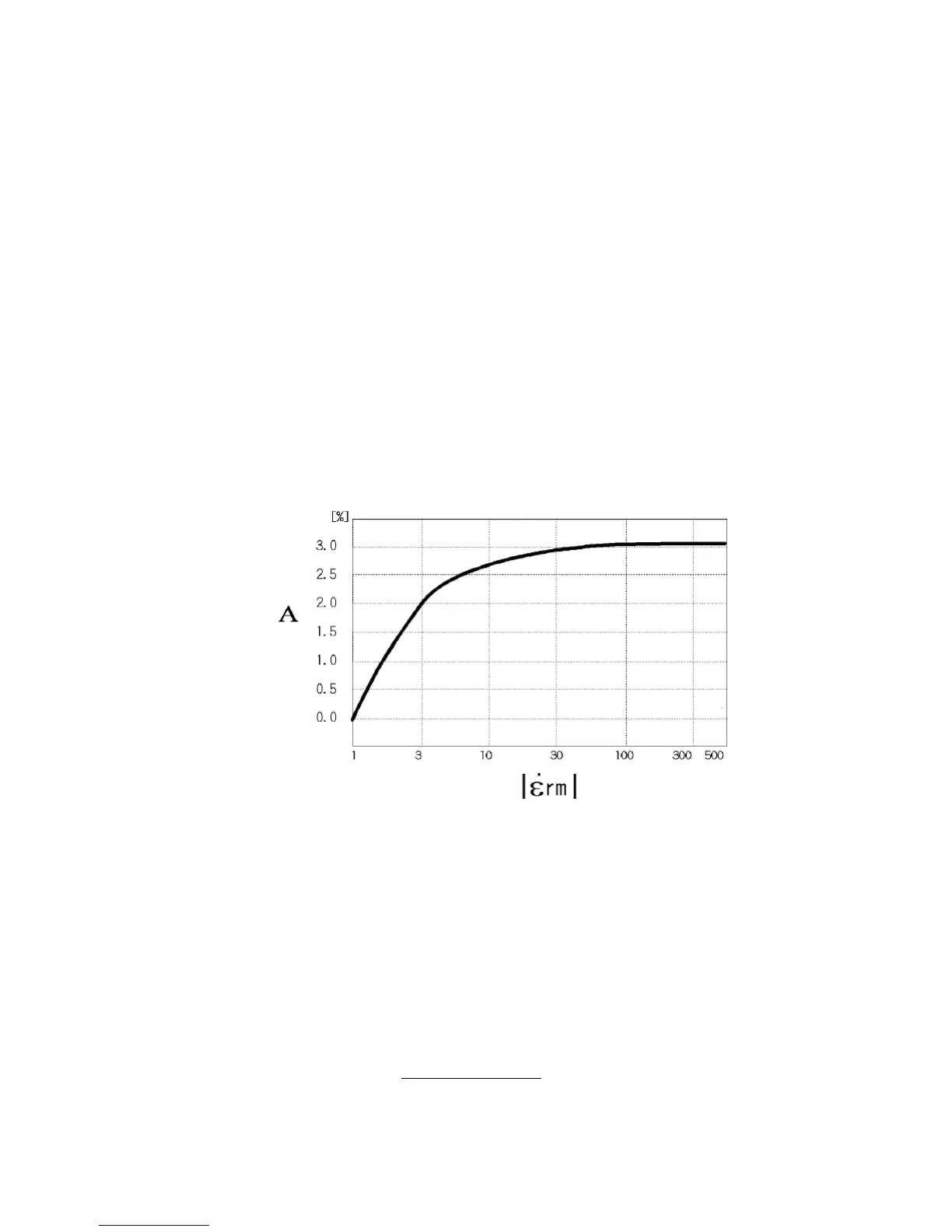

Figure 1-2 Fixture Error (A)
1. The measurement accuracy is a complex function of the measurement instrument
accuracy and the fixture error.
A :Obtained from Figure 1-2
B :Obtained from Figure 1-3
