Keysight 16452A Liquid Test Fixture 7
General Information
Specifications
Specifications
This section lists the complete 16452A specifications. These specifications are
the performance standards and limits against which the 16452A is tested.
When shipped from the factory, the16452A meets the following specifications:

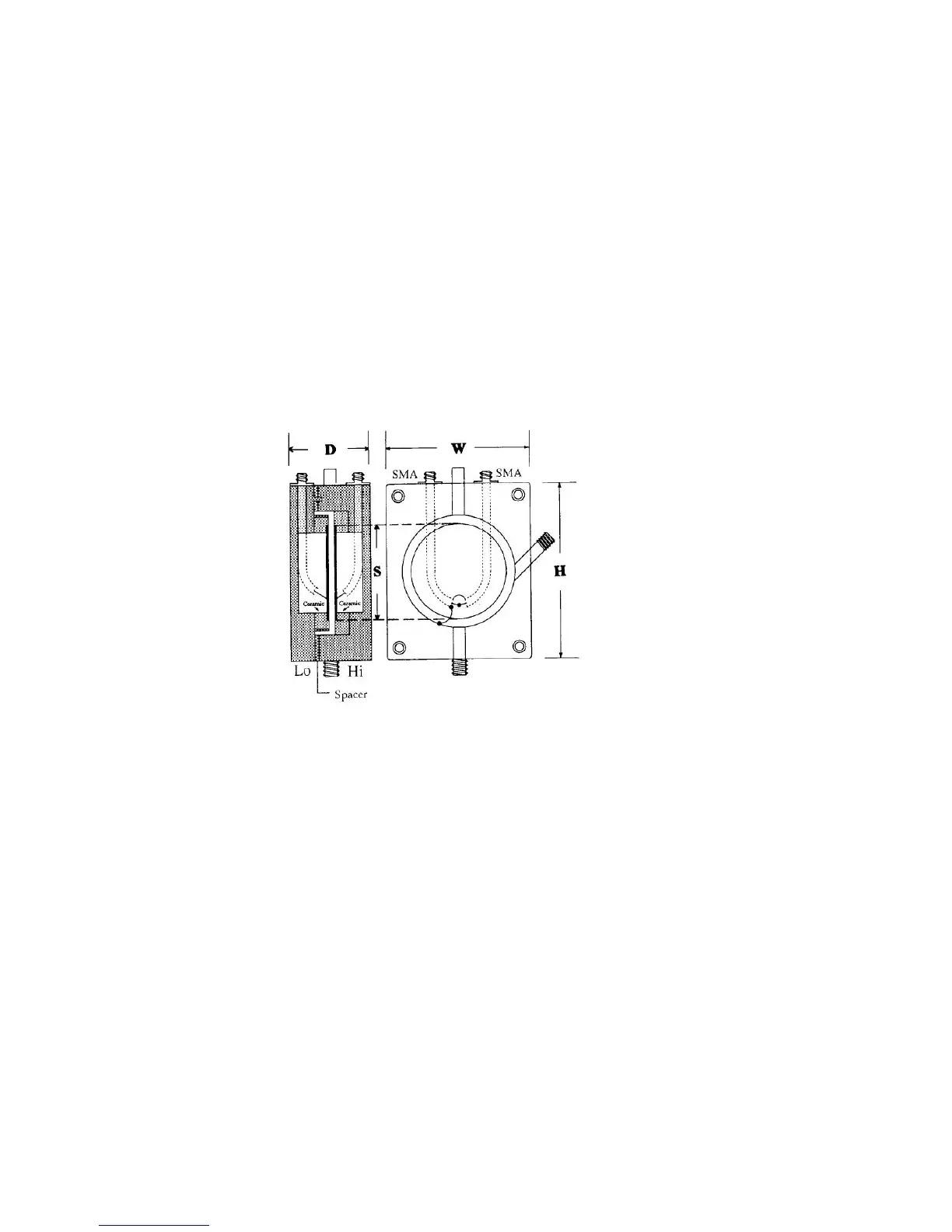

Figure 1-1 Electrode Size of the 16452A (section view)
The operating frequency differs according to the instrument that the 16452A is
used with.
Electrode Size (S) ϕ38±0.5 (mm)
Dimension 85 (H) x 85 (W) x 37 (D)(mm)
Weight 1.4 kg
Maximum Operating Voltage 30 Vrms
Operating Frequency 20 Hz to 30 MHz
Materials
Test fixture body (electrodes, spacers, liquid inlet and outlet)
Nickel-plated cobal (Fe 54%, Co 17%, Ni 29%)
Insulator Ceramic (alumina Al
2
0
3
)
O-ring Viton (Fluoro rubber)
Insulator soldering Silver-copper and
gold-copper
