28 Keysight 16452A Liquid Test Fixture
Operation
Air Capacitance (C0) Measurement
3-
Air Capacitance (C
0
) Measurement
1. Separate the test fixture as shown in Figure 3-7.

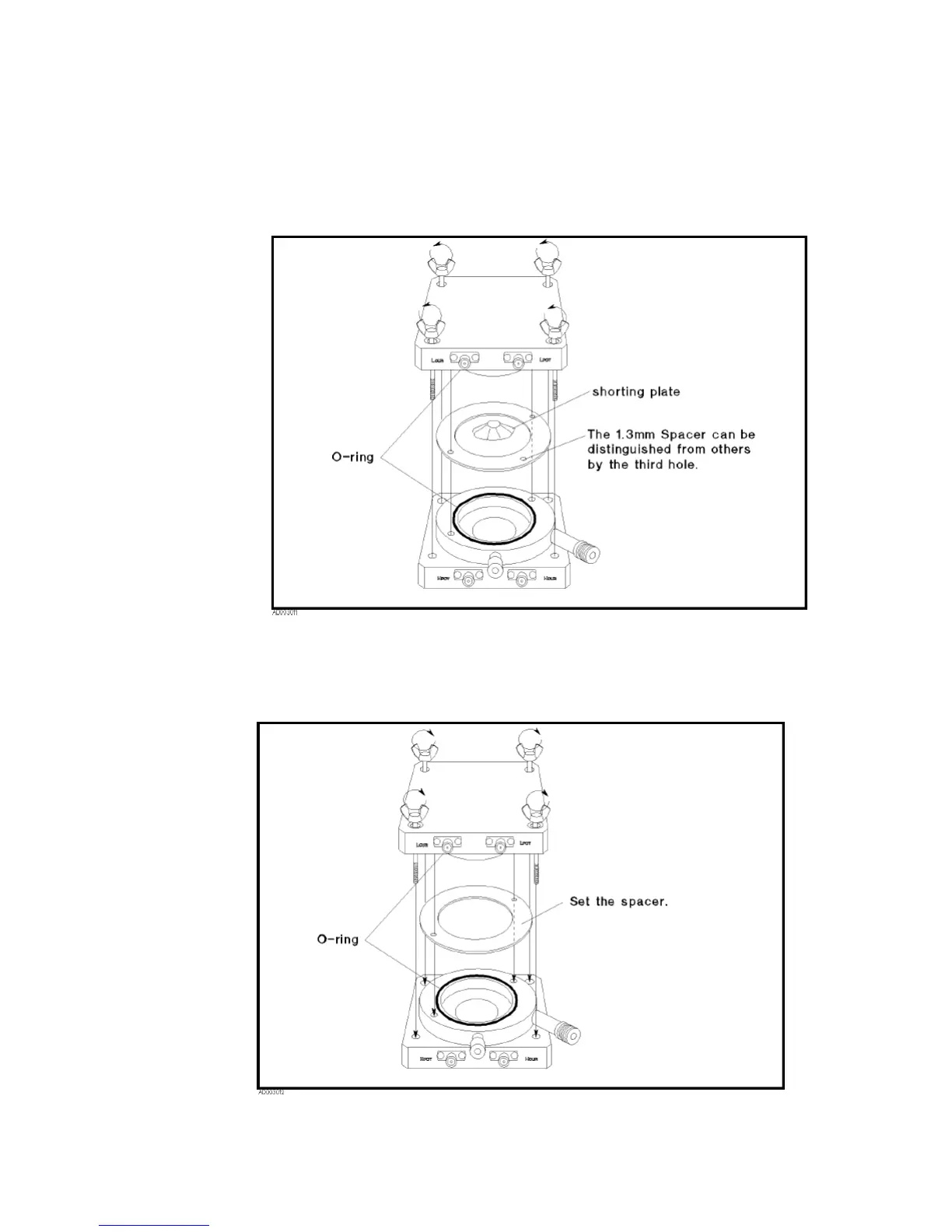

Figure 3-7 Separating the Test Fixture into High and Low Electrodes
2. Remove the shorting plate and select the spacer that is to be used to
measure the liquid. Then assemble the test fixture.
Figure 3-8 Test Fixture Assemble for Measurement
