Connecting the Test Fixture

Use a 4-terminal-pair BNC cable to connect the 16452A and your

measurement instrument. Keysight Technologies recommends using the

following cables:

Select the cable that matches your measurement.

Procedure

1. Set the cable length to 1m. For the setting, please refer to your

measurement instrument.

2. Take the BNC adapter caps off and connect the test fixture to the unknown

terminal using the cables (Lp: L

POT

, Lc: C

CUR

, Hp: H

POT

, Hc: H

CUR

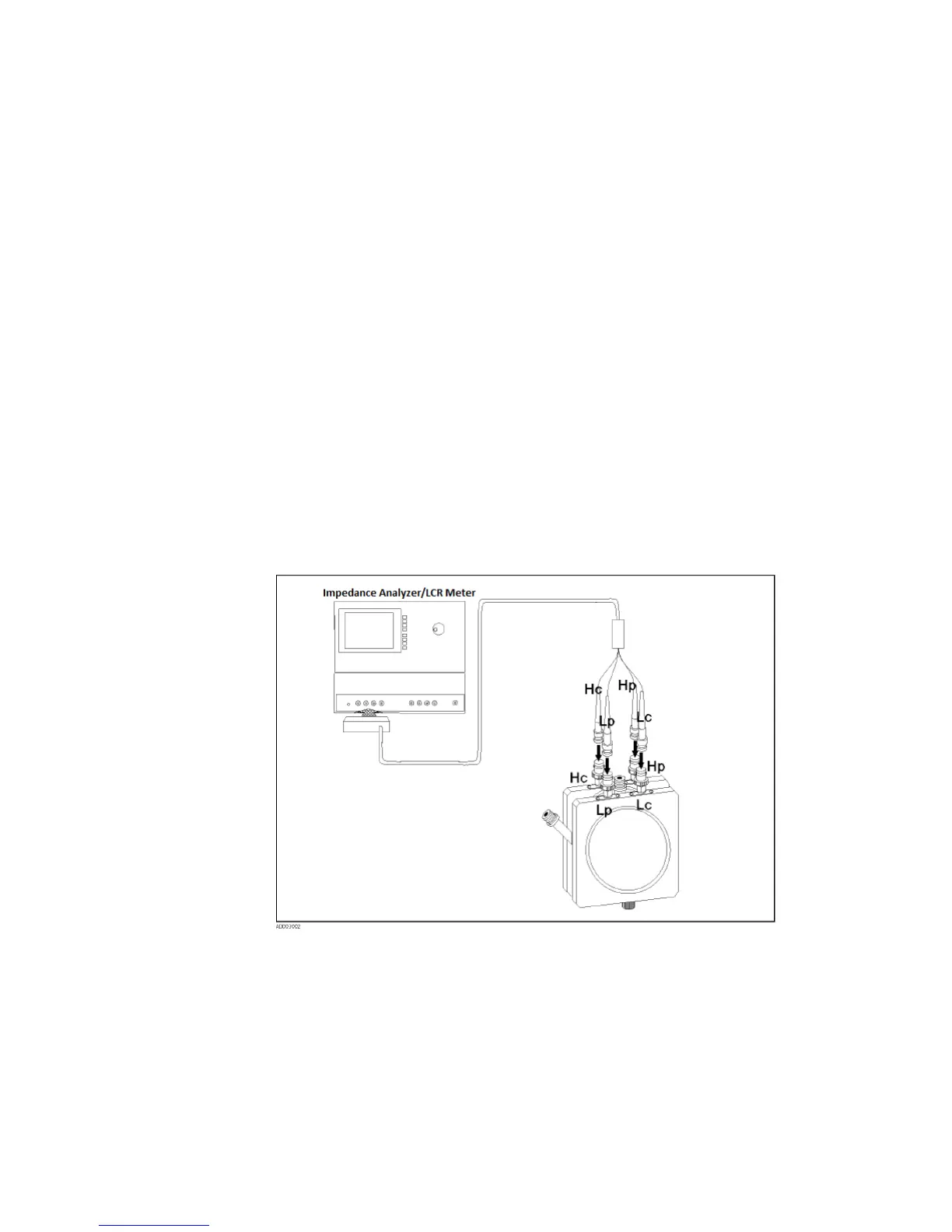

Figure 3-5 Connecting the Test Fixture

For the temperature range of 0 to +55ºC 16048A Test leads

For the temperature range of -20 to +125ºC 16048G/H + 1250-2375

Test leads
