Keysight 16452A Liquid Test Fixture 21
Operation
Preparation of Test Fixture for Use
Preparation of Test Fixture for Use
Before connecting the test fixture, you must connect the SMA-BNC adapters to
the 16452A terminals. Also, the spacer and shorting plate must be set between
the electrodes for the SHORT compensation. The 16452A can be separated
into High and Low electrodes to make it possible to set the spacer and the
shorting plate. The test fixture's electrodes are easier to clean if you separate
the electrodes.
Connecting the SMA-BNC Adapters to the 16452A
Connect the SMA-BNC Adapters to the 16452A SMA-terminals as shown in
Figure 3-1. The waterproof caps for the BNC connector should be on when
washing the electrodes.

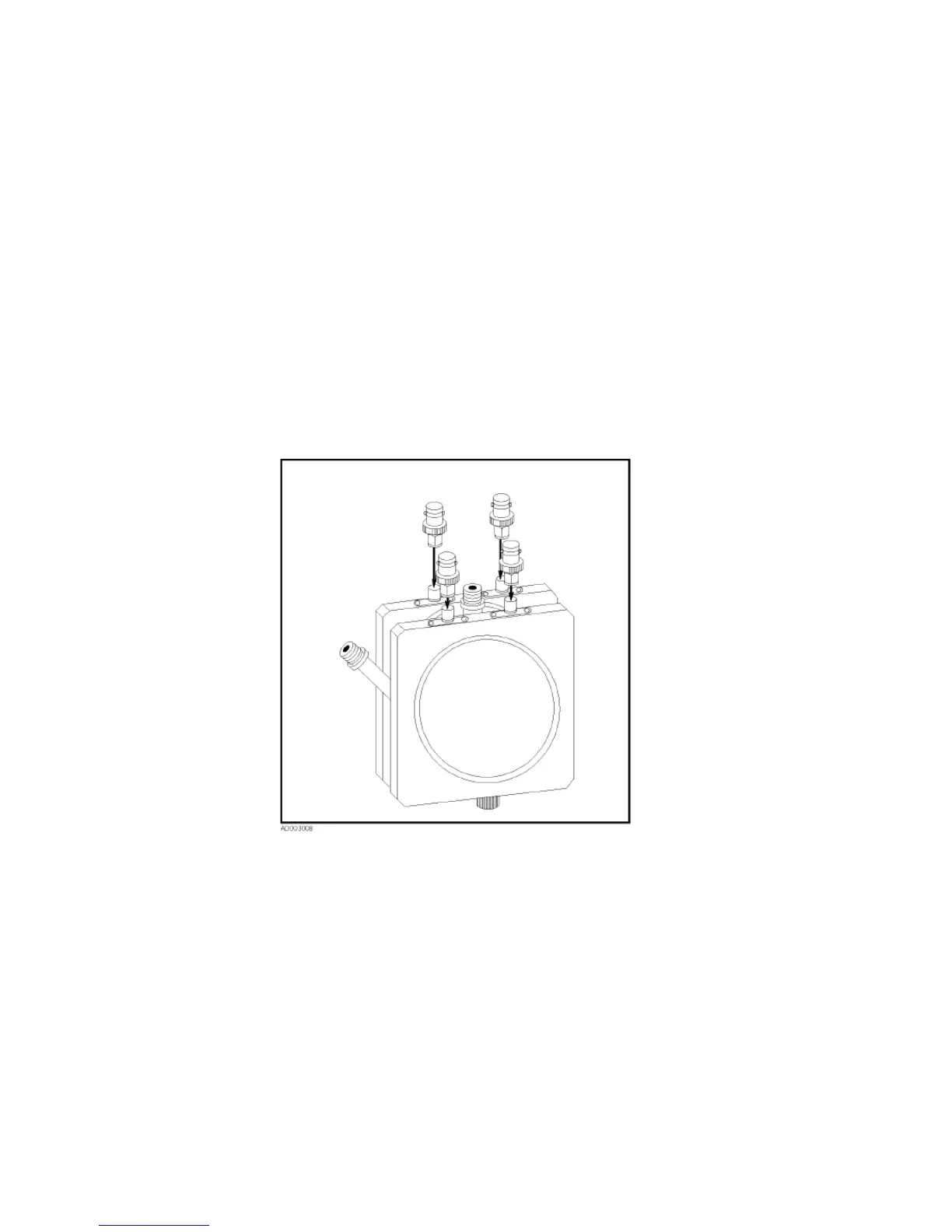

Figure 3-1 Connecting the SMA-BNC Adapter
