36 Keysight 16452A Liquid Test Fixture
Operation
Performing Temperature Measurements
3-
Performing Temperature Measurements
The following information is provided for users who use the 16452A in a
thermostatic chamber or an oil tank.
• The 16452A is specified to operate in the temperature range of -20 to
125ºC. You should be aware not only of the heat resisting property of the
16452A, but also that of the measurement cable. The heat resisting
properties of the Keysight Technologies-recommended cables are:
• When you use the thermocouple to monitor the inside temperature of the
test fixture, be careful not to short the electrodes.
• When you use the 16452A in an oil tank, soak the whole circle shown in
Figure 3-13 (the circle shows the size and position of the liquid space of the
16452A).

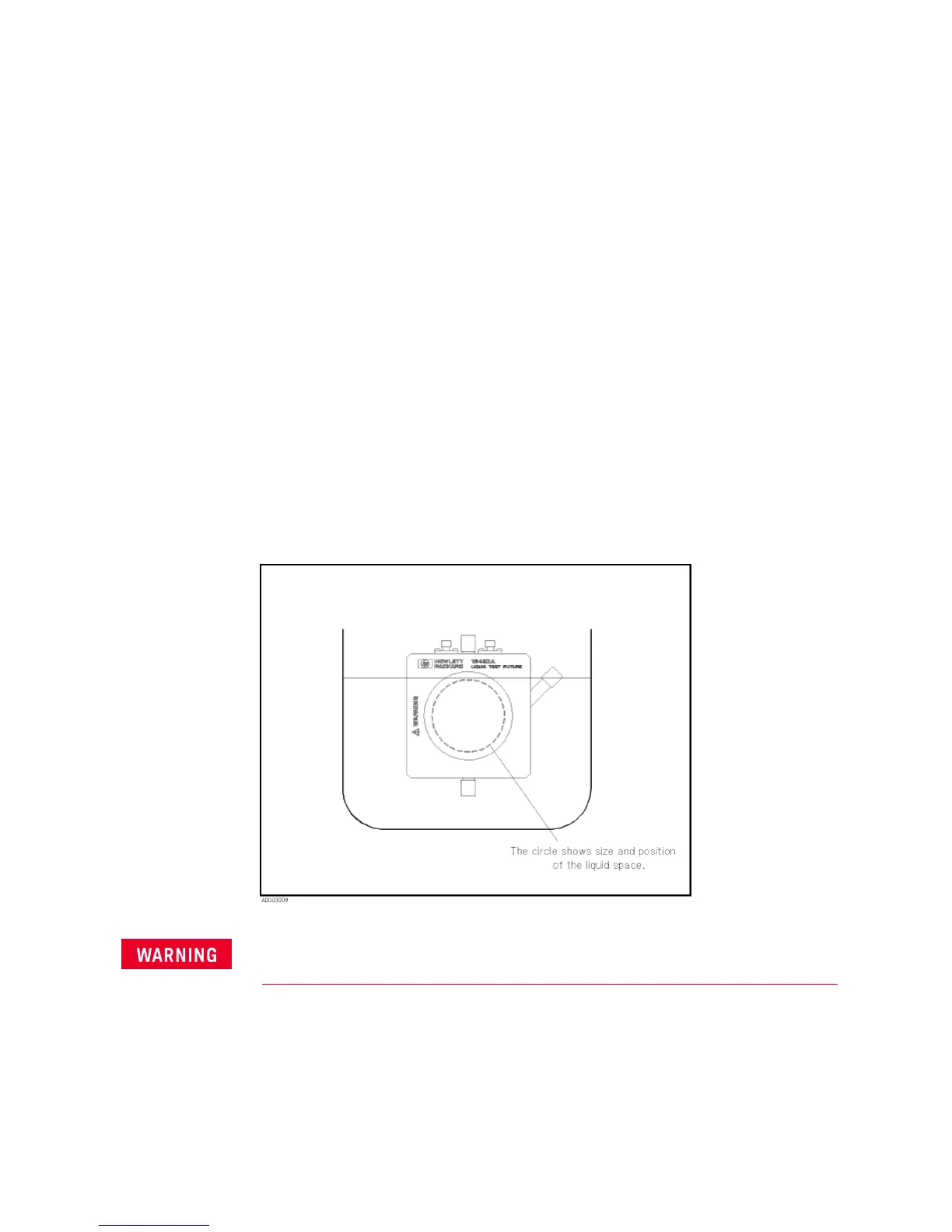

Figure 3-13 Soaking the 16452A in the Oil Tank
0 to +55ºC 16048A
-20 to +150ºC 16048G/H + 1250-2375
DO NOT touch the heated test fixture, cable, and fixture stand with your
naked hand. Use gloves to prevent scalding.
