Assembling the Test Fixture
Set the 1.3 mm spacer (electrode distance is 0.3mm) and the shorting plate as
required. Then assemble the 16452A as shown in Figure 3-3.

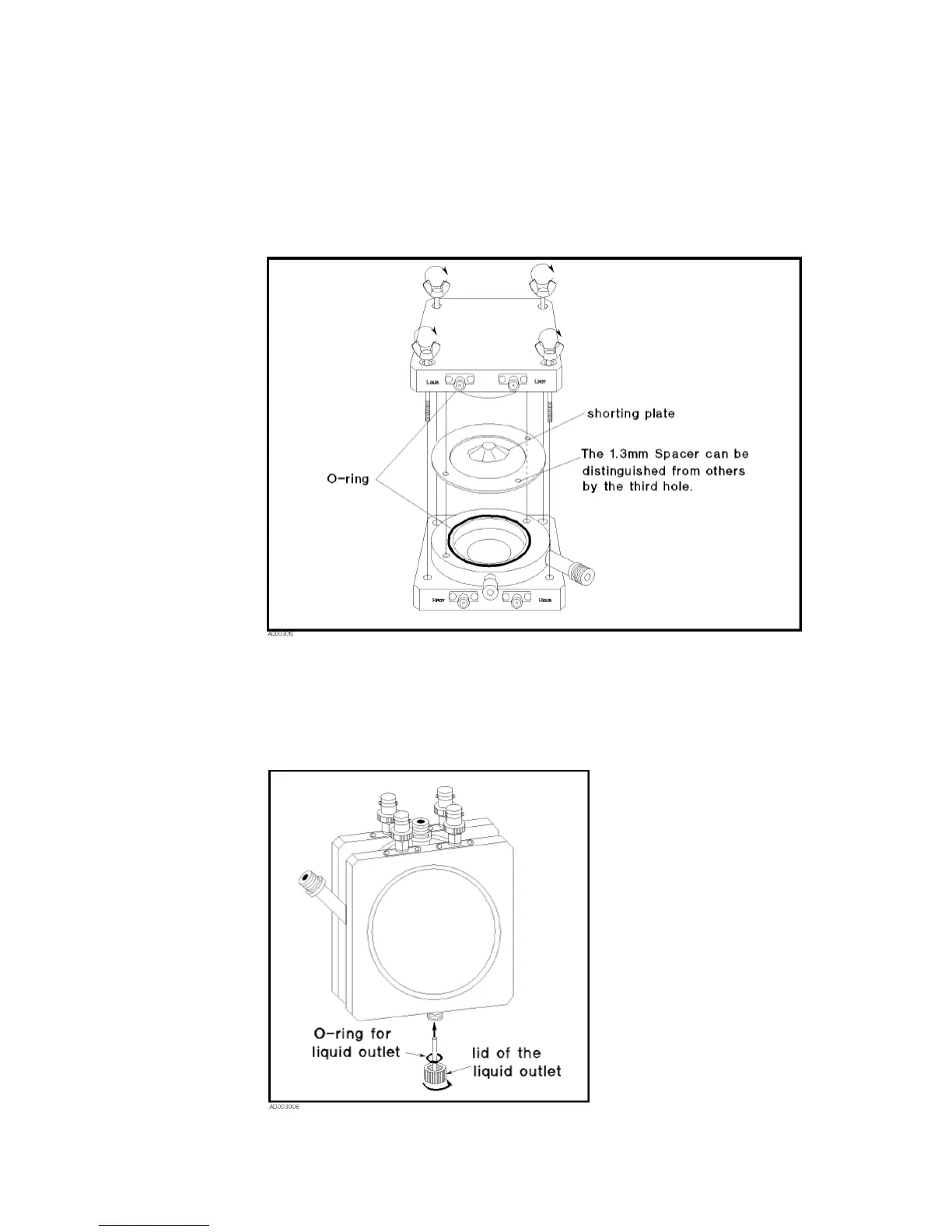

Figure 3-3 Assembling the Test Fixture for a SHORT compensation
Putting the Lid On the Liquid Outlet
Put the lid on the liquid outlet as shown in Figure 3-4.
Figure 3-4 Putting the Lid On
