Keysight Models 6811C, 6812C, and 6813C Quick Start Guide 45
Programming Output Transients
The ac source has been programmed with the transient system in Fixed mode in
the earlier examples. The following examples briefly describe the transient
system’s Step, Pulse, and List modes, which require the application of a trigger to
implement the transient mode.
Program an output step
For the following examples, press [Shift] [Output], scroll to *RST and press
[Enter] to reset the unit prior to each example. Also press [Enter] to enter or
activate each selection.

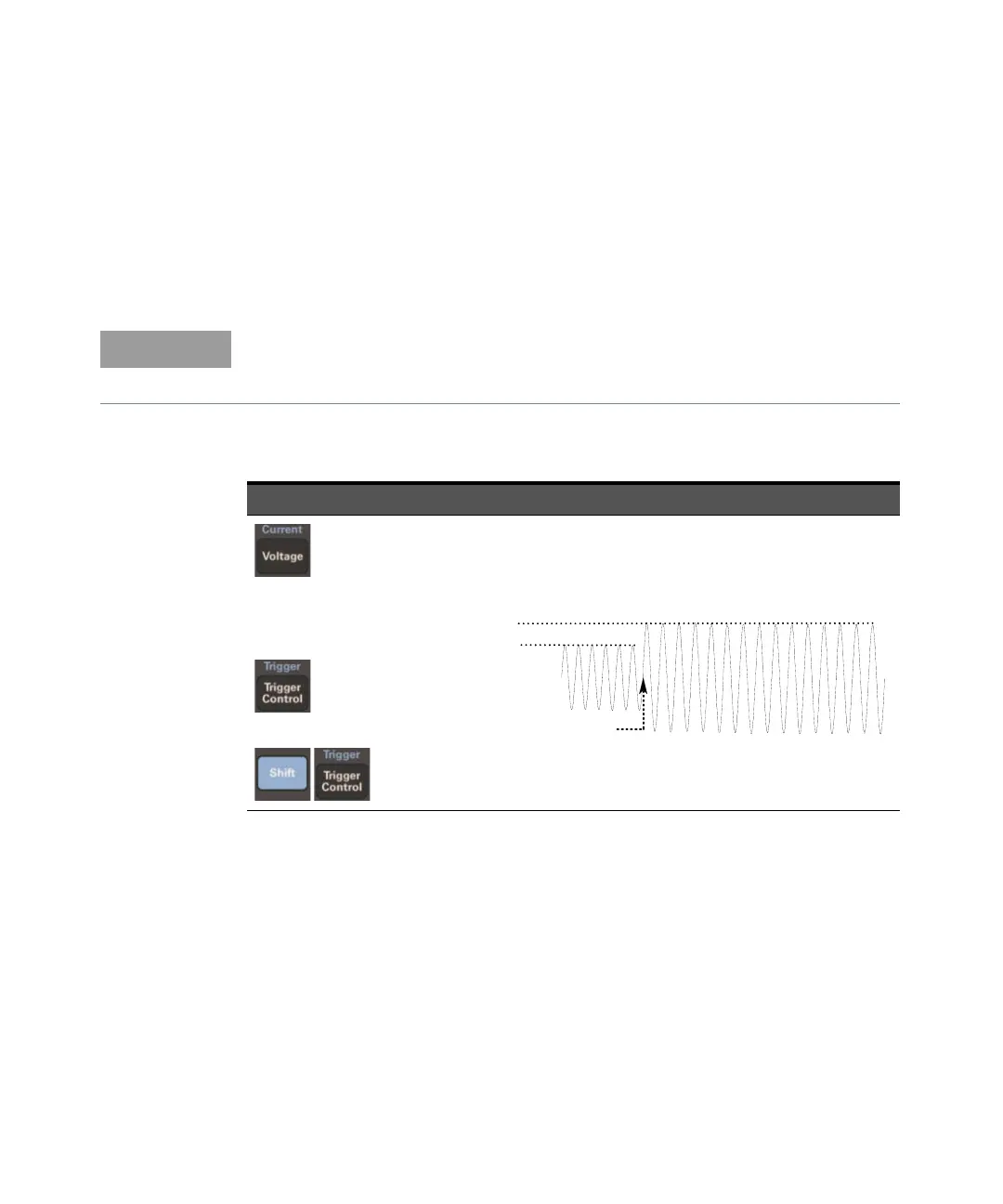

Key press and display Result
VOLT:M STEP
VOLT 120
VOLT:T 150
INIT:IMMED
Step transients transition to a new output level upon receipt of a trigger.
When these commands are sent, the voltage amplitude is stepped from
its previous setting to 150 V rms upon receipt of a trigger.
VOLT level
TRIG level
Trigger
To Next Page
