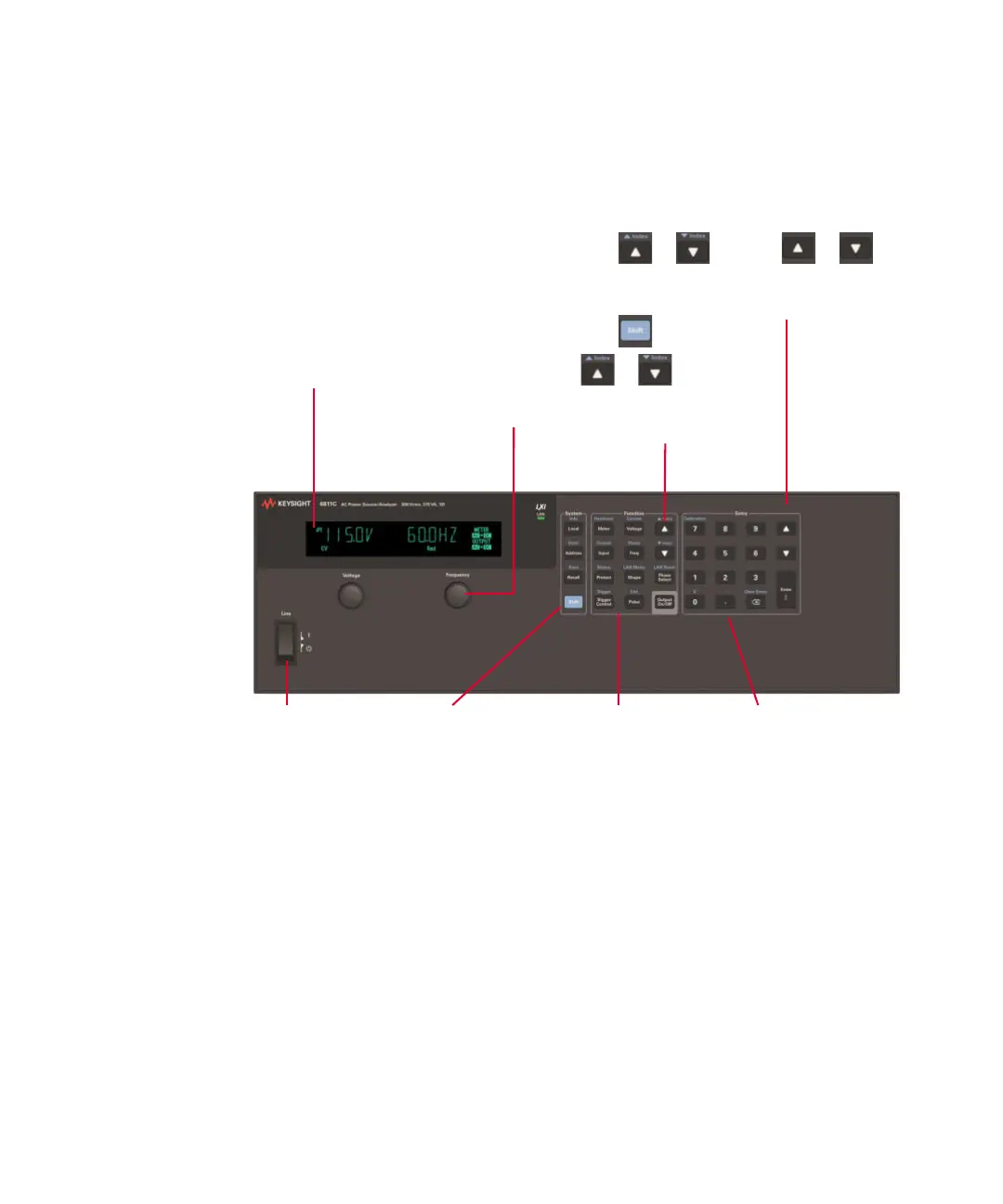

The Front Panel - At a Glance
14-character display
shows menu commands
and measured values.
– Annunciators indicate
operating modes and
status conditions.
Rotary controls set
voltage and frequency
when ac source is in local
mode.
– Turn rapidly for coarse
control
– Turn slowly for fine
control.
Press or to
scroll through menu
commands.
Press then
or to scroll
through lists and
harmonic arrays.
Press or to
scroll through command
parameters.
Turns the ac source
on or off
System keys Function keys Entry keys
