Harmonic measurements
Use the harmonic menu to make harmonic measurements of the output current.
The following example illustrates the current magnitude measurements returned

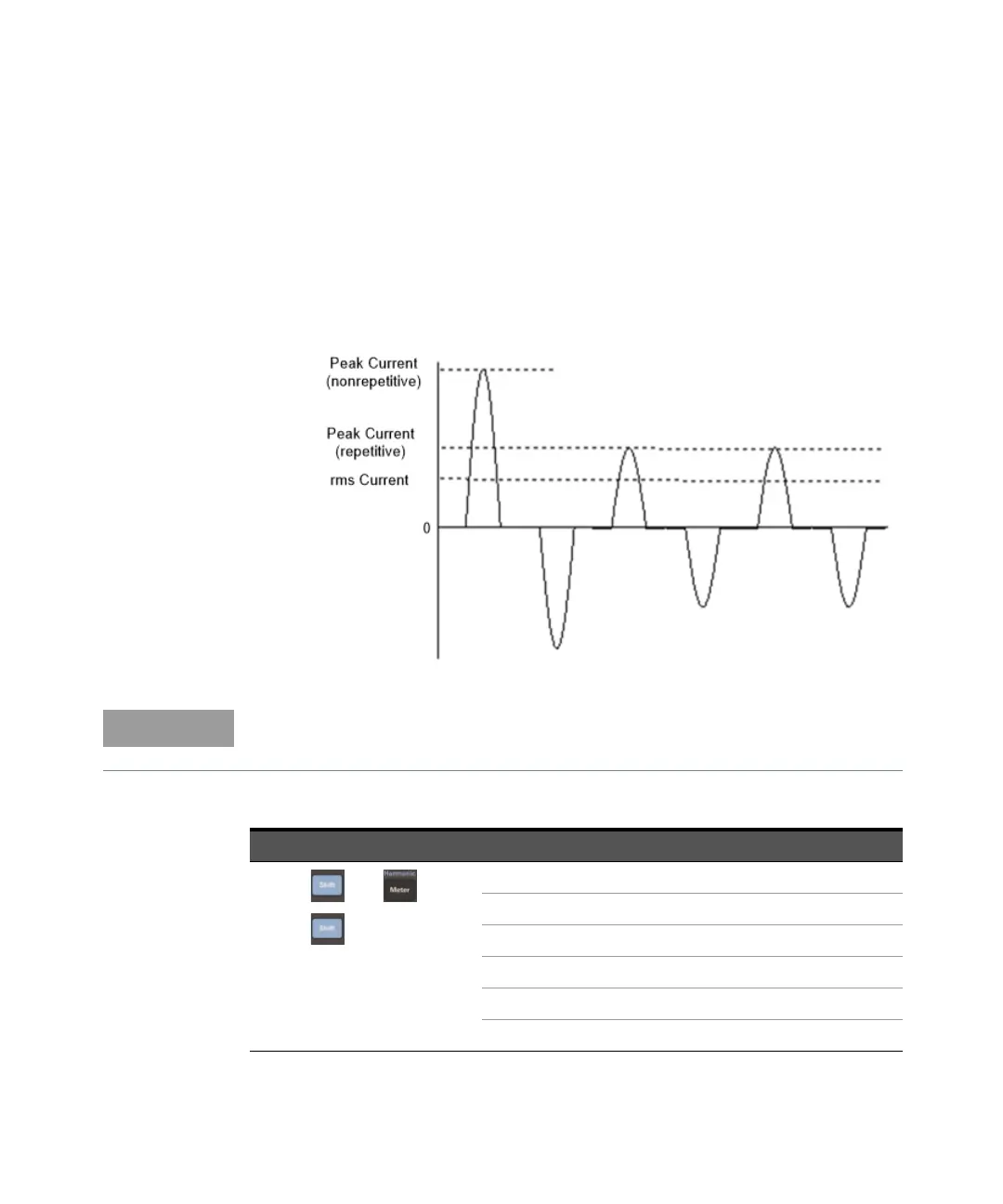

at harmonics 0 to 5. The ac source current waveforms are shown in the following
figure.
NOTE
Harmonic 1 is the fundamental. Harmonic 0 is the DC component.
Key press Display Harmonic measurement functions
1 Press then .
2 Press then ▲ or ▼ of the
Function key group to access the
ac source measurement features.
0.01 A I:MAG:0 current amplitude at harmonic 0
1.43 A I:MAG:1 current amplitude at harmonic 1
0.01 A I:MAG:2 current amplitude at harmonic 2
0.91 A I:MAG:3 current amplitude at harmonic 3
0.01 A I:MAG:4 current amplitude at harmonic 4
0.74 A I:MAG:5 current amplitude at harmonic 5
